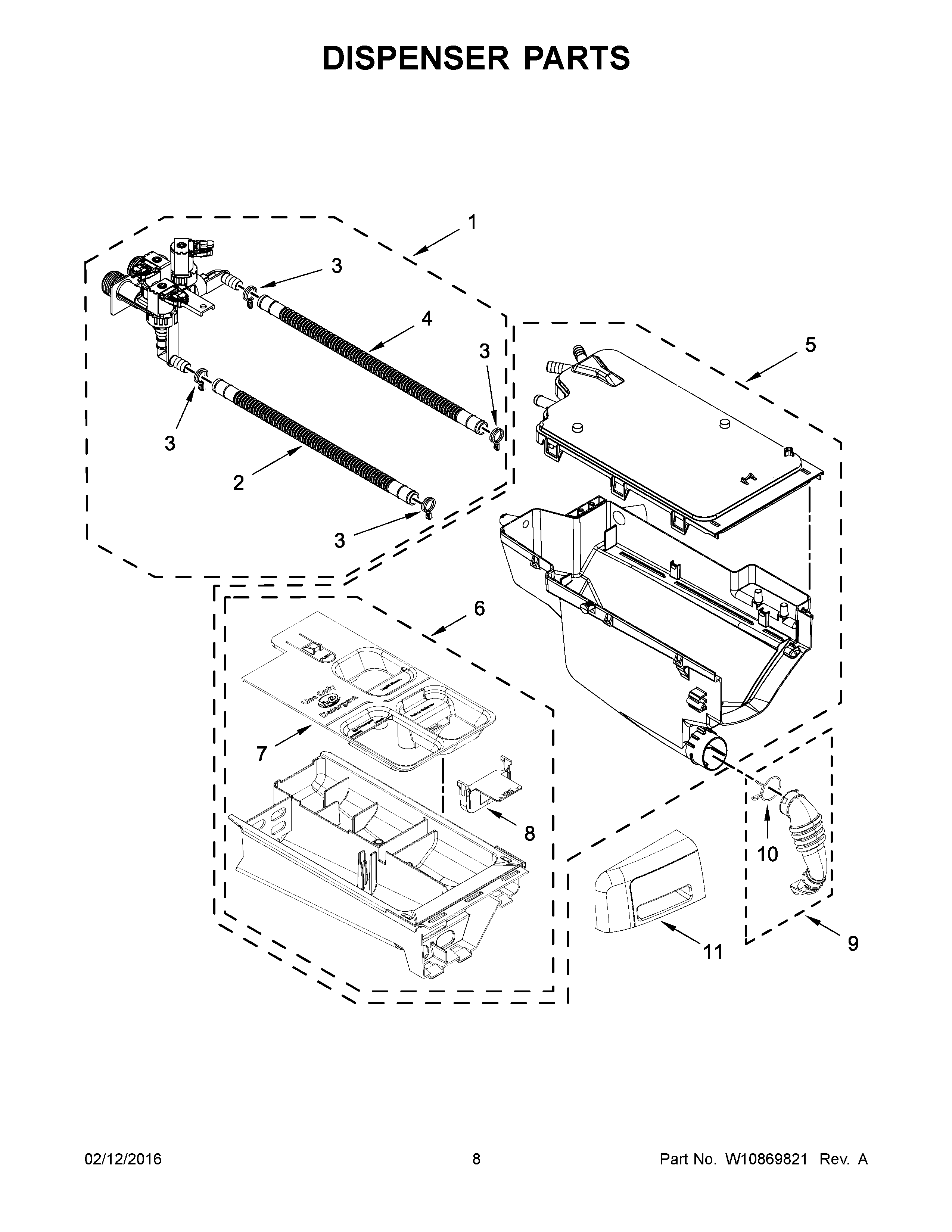

WFW7590FW0 05 – DISPENSER PARTS

WFW7590FW0 05 – DISPENSER PARTS

Written by

in

WFW7590FW0 05 – DISPENSER PARTS

Products

PositionProduct
1W10599356 Whirlpool Water Inlet Valve
2WPW10577770 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4WPW10577787 Whirlpool Hose Assembly
5W10575334 Whirlpool Washer Detergent Dispenser
6WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
7WPW10365887 Whirlpool Dispenser Cover Housing
8W11084830 Whirlpool Detergent Divider
9WPW10239966 Whirlpool Hose
10W10239910 Whirlpool Clamp
11W11223724 Whirlpool Handle
