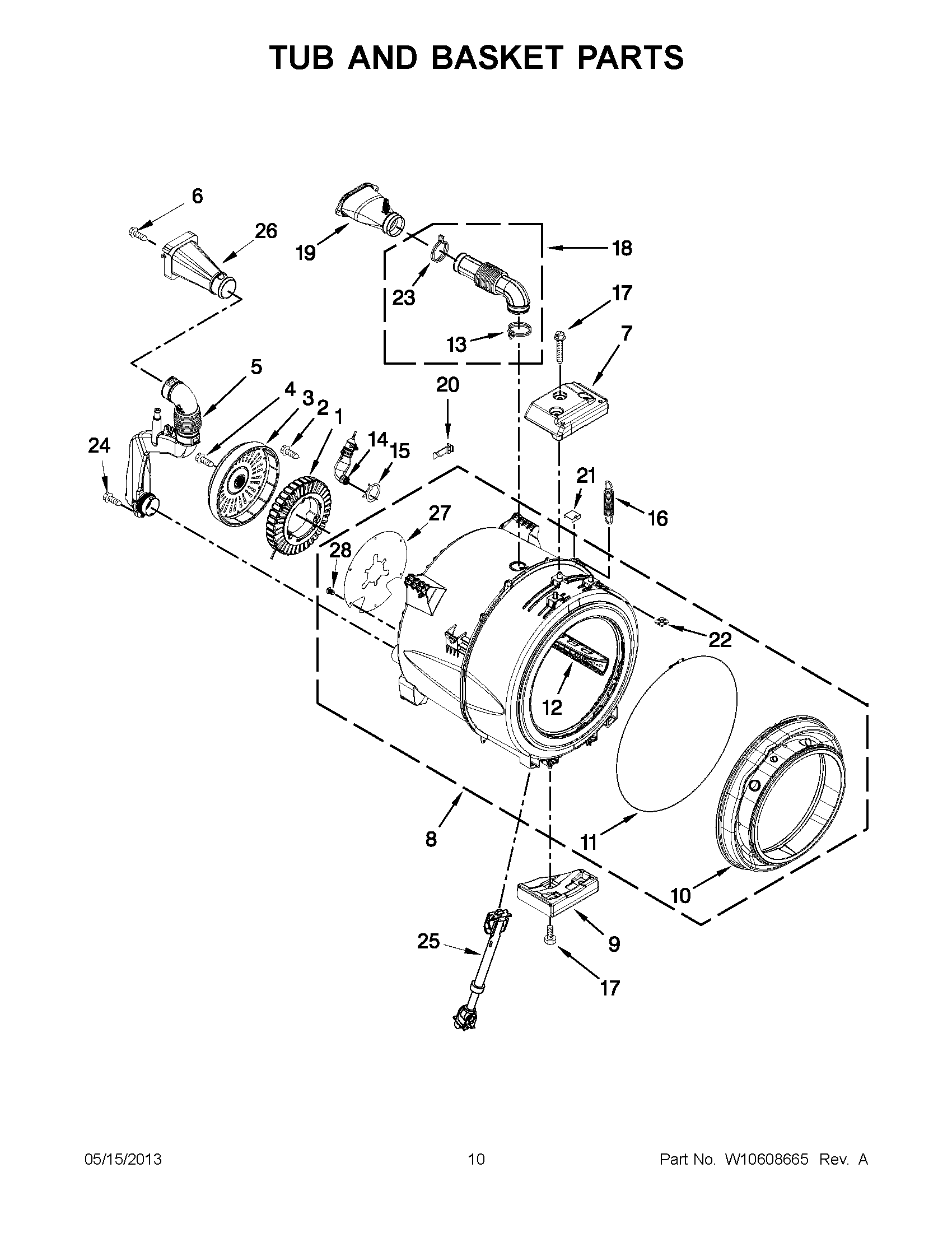

WFW80HEBC1 05 – TUB AND BASKET PARTSadmin2025-04-26T11:15:54+00:00WFW80HEBC1 05 – TUB AND BASKET PARTS ProductsPositionProduct1W10870752 Whirlpool Stator Assembly2WPW10253476 Whirlpool Screw3WPW10453673 Whirlpool Rotor4W11253212 Whirlpool Dryer Screw5PIPE, VENTILATION ASSEMBLY6WP8540282 Whirlpool Screw7W10452854 Whirlpool Counterweight8WPW10737541 Whirlpool Outer Tub Assembly9COUNTERWEIGHT, BOTTOM10W11106747 Whirlpool Washer Front Load Door Boot11W11218344 Whirlpool Boot Seal Retaining Ring12W10697830 Whirlpool Baffle13W10353599 Whirlpool Hose Clamp14WPW10260500 Whirlpool Trap Assembly15CLAMP, HOSE16W11266650 Whirlpool Spring17W10261496 Whirlpool Screw18WPW10568614 Whirlpool Hose19WPW10352818 Whirlpool Vent Pipe20W10316388 Whirlpool Clip Assembly21WP8540092 Whirlpool Clamp22WP8182512 Whirlpool Nut Assembly23W10273034 Whirlpool Clamp24W10306501 Whirlpool Screw25SHOCK-ABSR26FAN, VENTILATION ASSEMBLY27SHIELD, MOTOR28RETAINER, PUSH IN
