WFW80HEBW2 04 – CONTROL PANEL PARTS
Written by
in

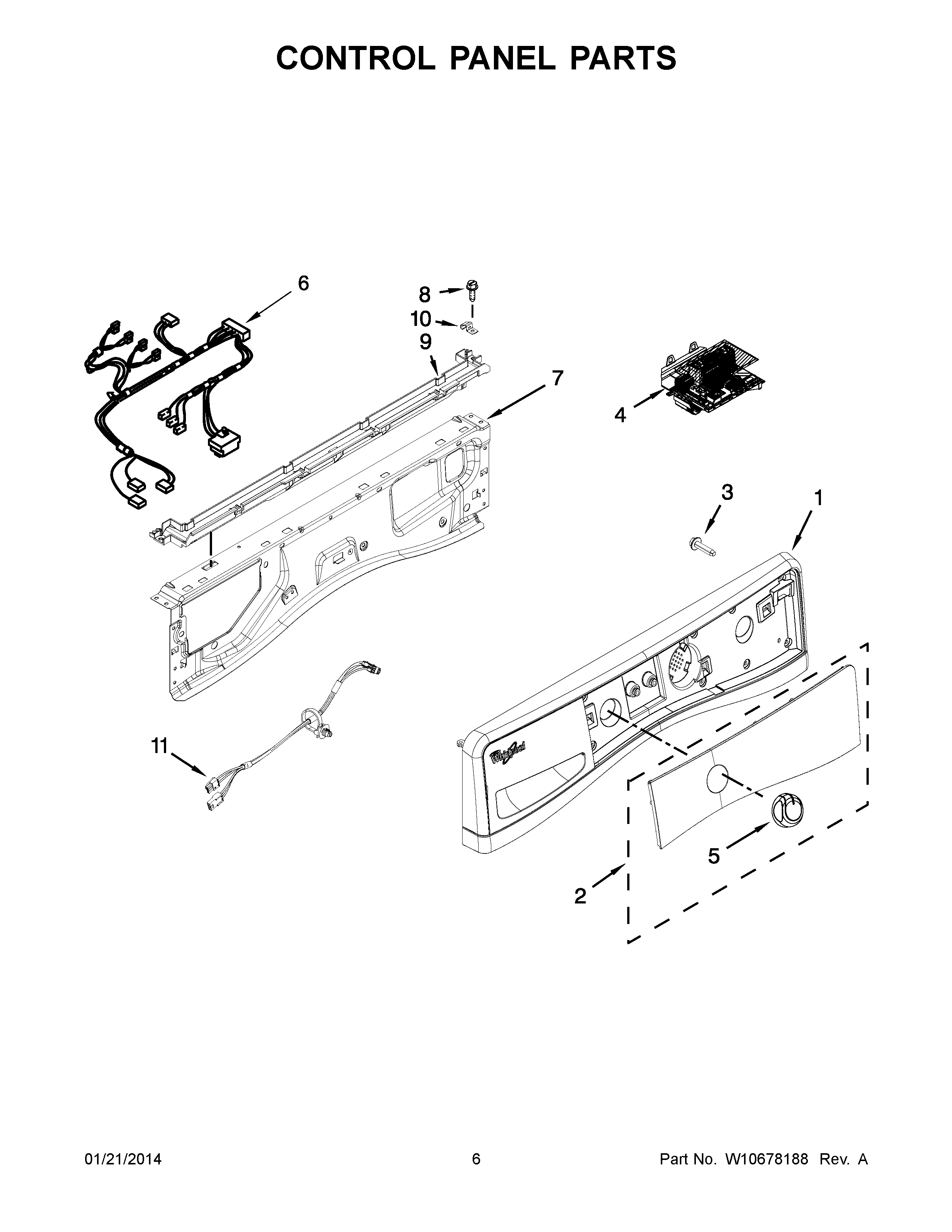

WFW80HEBW2 04 – CONTROL PANEL PARTS
Products
Position
Product
1
ASSEMBLY, CONSOLE (WHITE)
1
ASSEMBLY, CONSOLE (CHROME SHADOW)
2
W10635633 Whirlpool Control Panel
2
ASSEMBLY, IML (WHITE)
3
W10589828 Whirlpool Screw
4
WPW10635660-includeCORE Whirlpool WPW10635660 Refrigerator Electronic Control Board + Core
5
KNOB ASSEMBLY
6
W11229597 Whirlpool Wire Harness
7
W10208197 Whirlpool Bracket
8
WP489464 Whirlpool Refrigerator Screw
9
WPW10653575 Whirlpool Channel
10
W10317566 Whirlpool Clip
11
WPW10442440 Whirlpool Wire Harness
←
