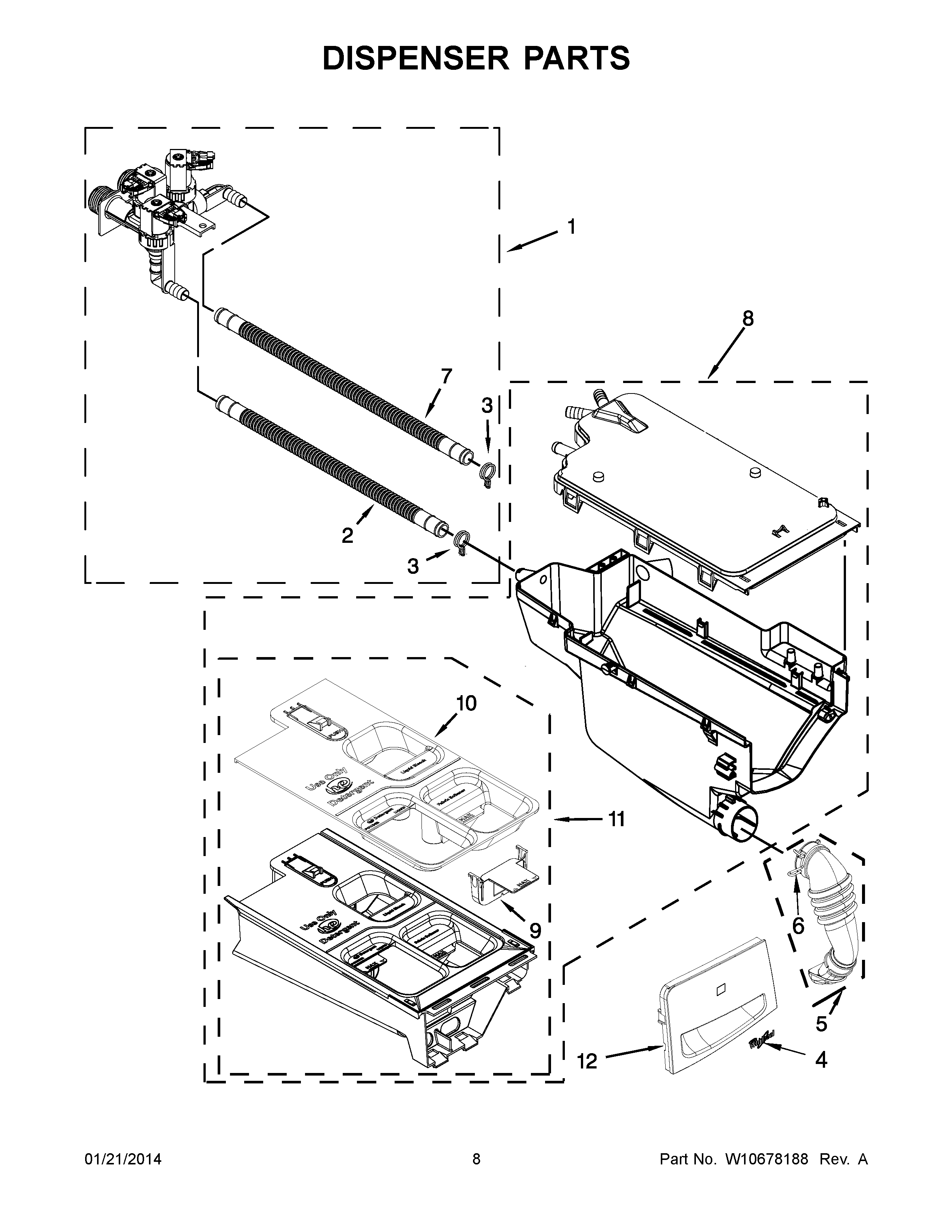

WFW80HEBW2 05 – DISPENSER PARTS

WFW80HEBW2 05 – DISPENSER PARTS

Written by

in

WFW80HEBW2 05 – DISPENSER PARTS

Products

PositionProduct
1W10599356 Whirlpool Water Inlet Valve
2WPW10577770 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4W10510982 Whirlpool Nameplate
4W11178521 Whirlpool Dishwasher Nameplate
5WPW10239966 Whirlpool Hose
6W10239910 Whirlpool Clamp
7WPW10577787 Whirlpool Hose Assembly
8W10575334 Whirlpool Washer Detergent Dispenser
9W11084830 Whirlpool Detergent Divider
10WPW10365887 Whirlpool Dispenser Cover Housing
11WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
12WPW10446404 Whirlpool Dispenser Handle
12HANDLE, DRAWER (INCLUDES ITEM 4) (CHROME SHADOW)
