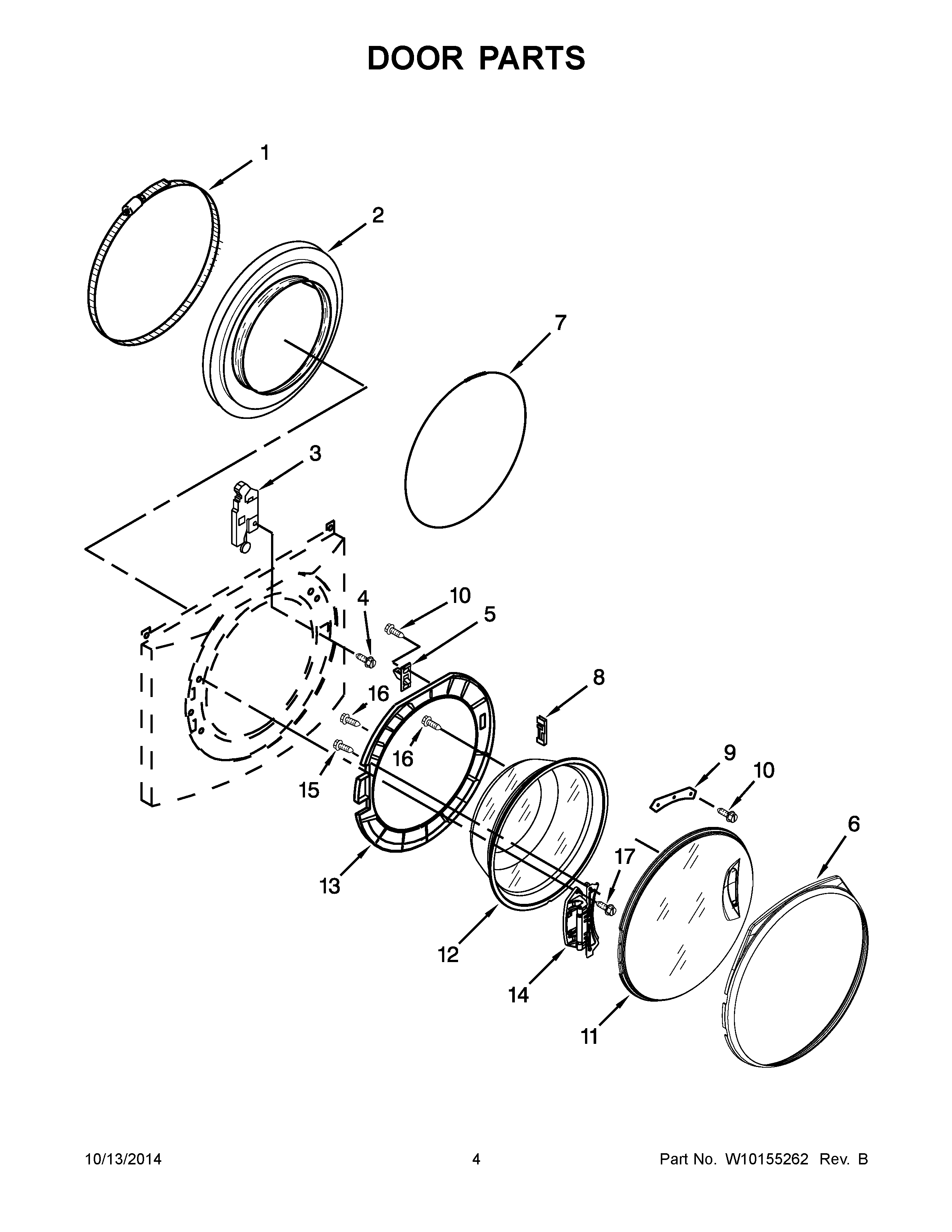

WFW8200TW00 03 – DOOR PARTS

Products

Position	Product
1	WPW10111435 Whirlpool Washer Door Boot Seal
2	WP8540108 Whirlpool Boot Spring Clamp
3	WPW10253483 Whirlpool Latch
4	WP8540725 Whirlpool Screw Assembly
5	WP8540221 Whirlpool Door Strike Assembly
6	TRIM RING, OUTER DOOR
7	W11032829 Whirlpool Clamp Assembly
8	WP8540115 Whirlpool Clamp
9	W11665946 Whirlpool Clamp
10	W11230114 Whirlpool Screw Assembly
11	FRAME, DOOR FRONT ASSEMBLY
12	WPW10388315 Whirlpool Glass Door
13	WPW10138523 Whirlpool Frame
14	Hinge, Door
15	WP8181660 Whirlpool Screw
16	WP8540282 Whirlpool Screw
17	WP489442 Whirlpool Refrigerator Screw
