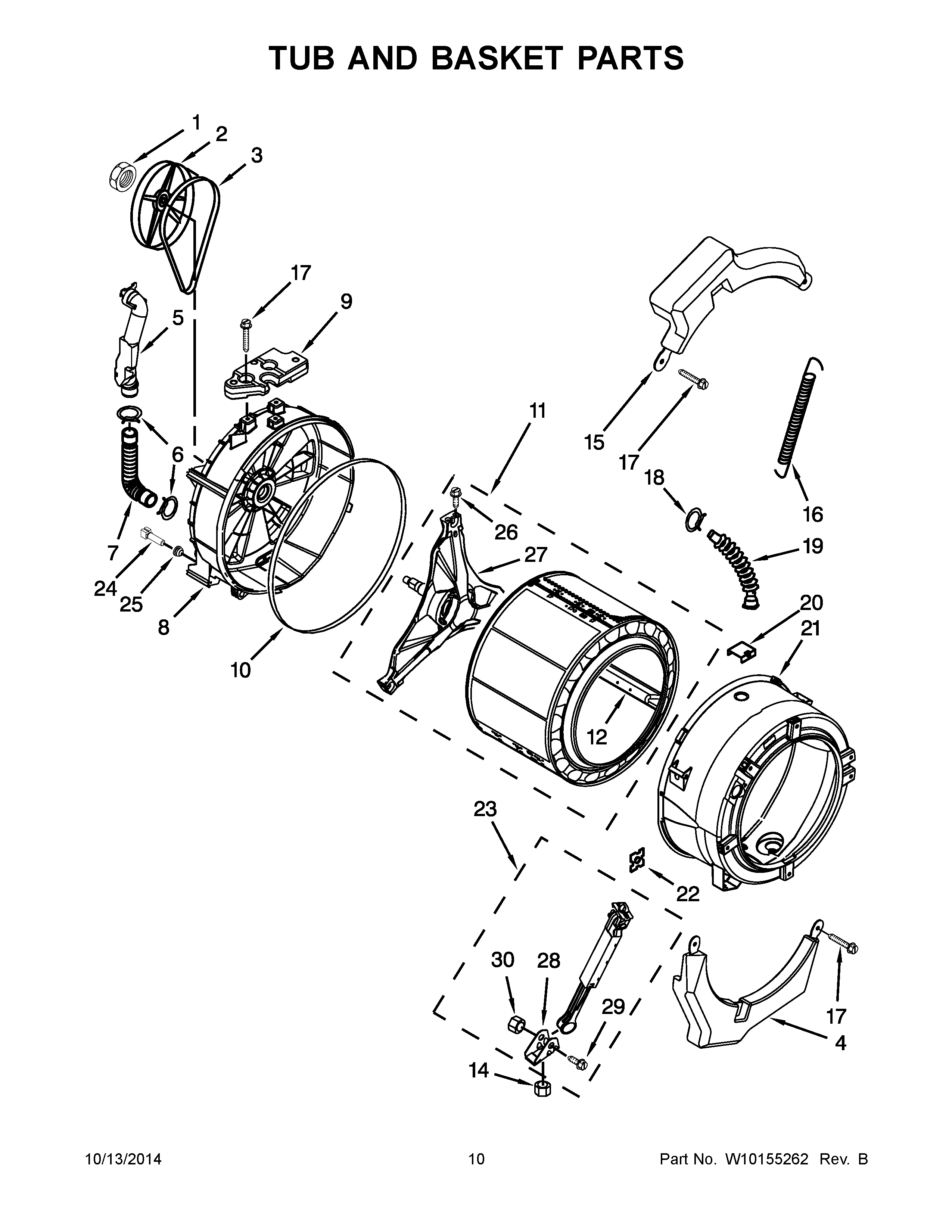

WFW8200TW00 06 – TUB AND BASKET PARTS

WFW8200TW00 06 – TUB AND BASKET PARTS

Written by

in

WFW8200TW00 06 – TUB AND BASKET PARTS

Products

PositionProduct
1WPW10283361 Whirlpool Nut
2WP8540088C Whirlpool Pulley
3WP8540101 Whirlpool Washer Drive Belt
4W10200297 Whirlpool Counterweight
5W10112169 Whirlpool Vent Pipe
68540010 Whirlpool Clamp
7W11398765 Whirlpool Hose
8280251 Whirlpool Outer Tub OS3
9Counterweight, Rear
10WPW10111158 Whirlpool Gasket Assembly
11BASKET, COMPLETE
12WP8540456 Whirlpool Baffle Assembly
148534084 Whirlpool Nut
15COUNTERWEIGHT, FRONT UPPER
16280159 Whirlpool Spring Assembly
17W11685857 Whirlpool Screw Assembly
183363365 Whirlpool Clamp
19WP8540015 Whirlpool Hose Assembly
20WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23W10739670 Whirlpool Shock Absorber Package
24WPW10467289 Whirlpool Sensor
25W11590578 Whirlpool Seal
26WP8540382 Whirlpool Screw
27Crosspiece Assembly
28BRACKET, SHOCK ABSORBER MOUNTING
298540841 Whirlpool Bolt
30NUT, SHOCK BRKT.
