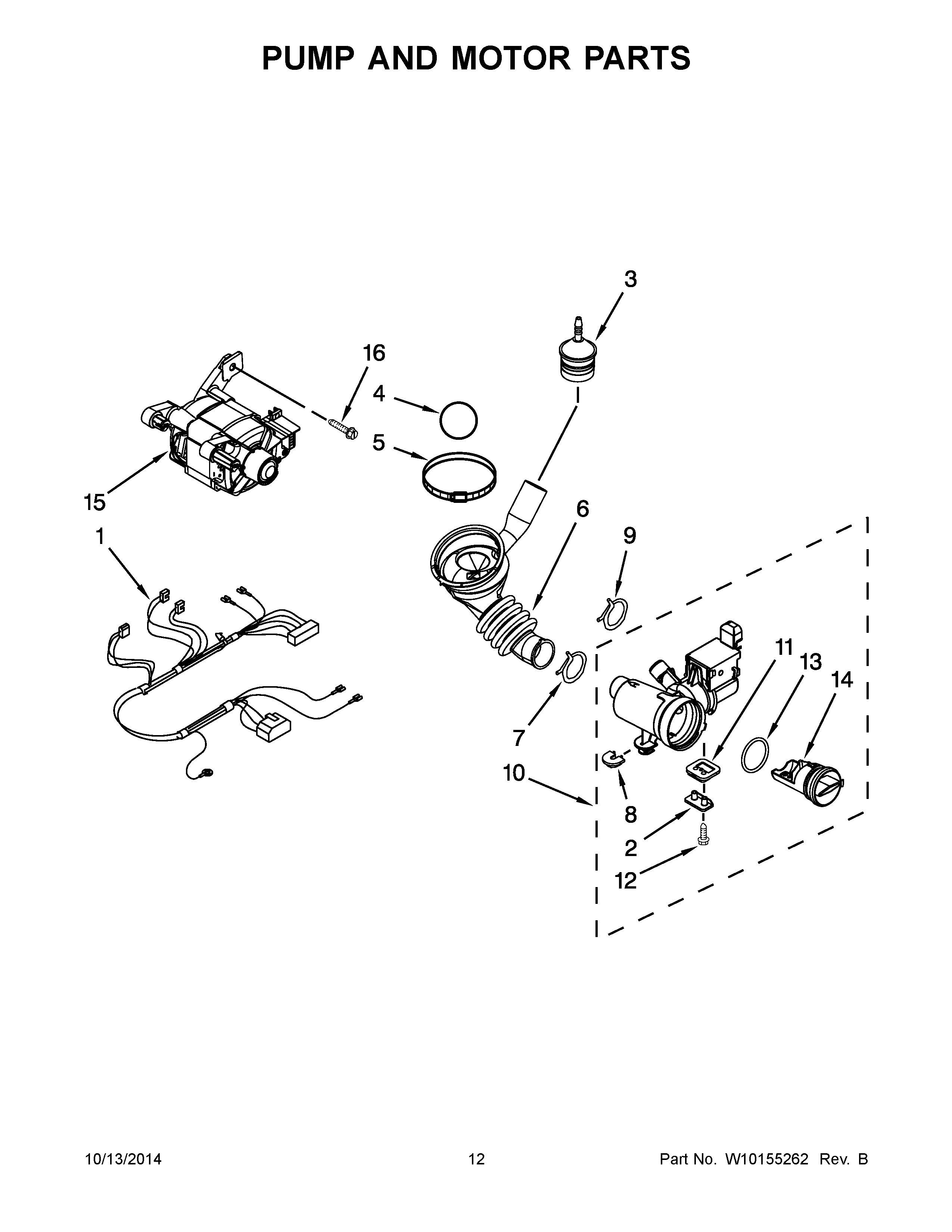

WFW8200TW00 07 – PUMP AND MOTOR PARTS

Products

Position	Product
1	W10166995 Whirlpool Wire Harness
2	8540033 Whirlpool Cap
3	WPW10405608 Whirlpool Trap
4	BALL
5	WP696392 Whirlpool Hose Clamp
6	W11366249 Whirlpool Washer Tub to Pump Hose
7	WP616099 Whirlpool Clamp
8	W10034820 Whirlpool Grommet
9	WP356138 Whirlpool Hose Clamp
11	W10034830 Whirlpool Grommet
12	8533964 Whirlpool Screw
13	WPW10730972 Whirlpool Washer Water Pump
15	Motor, Drive
16	8540134 Whirlpool Screw
