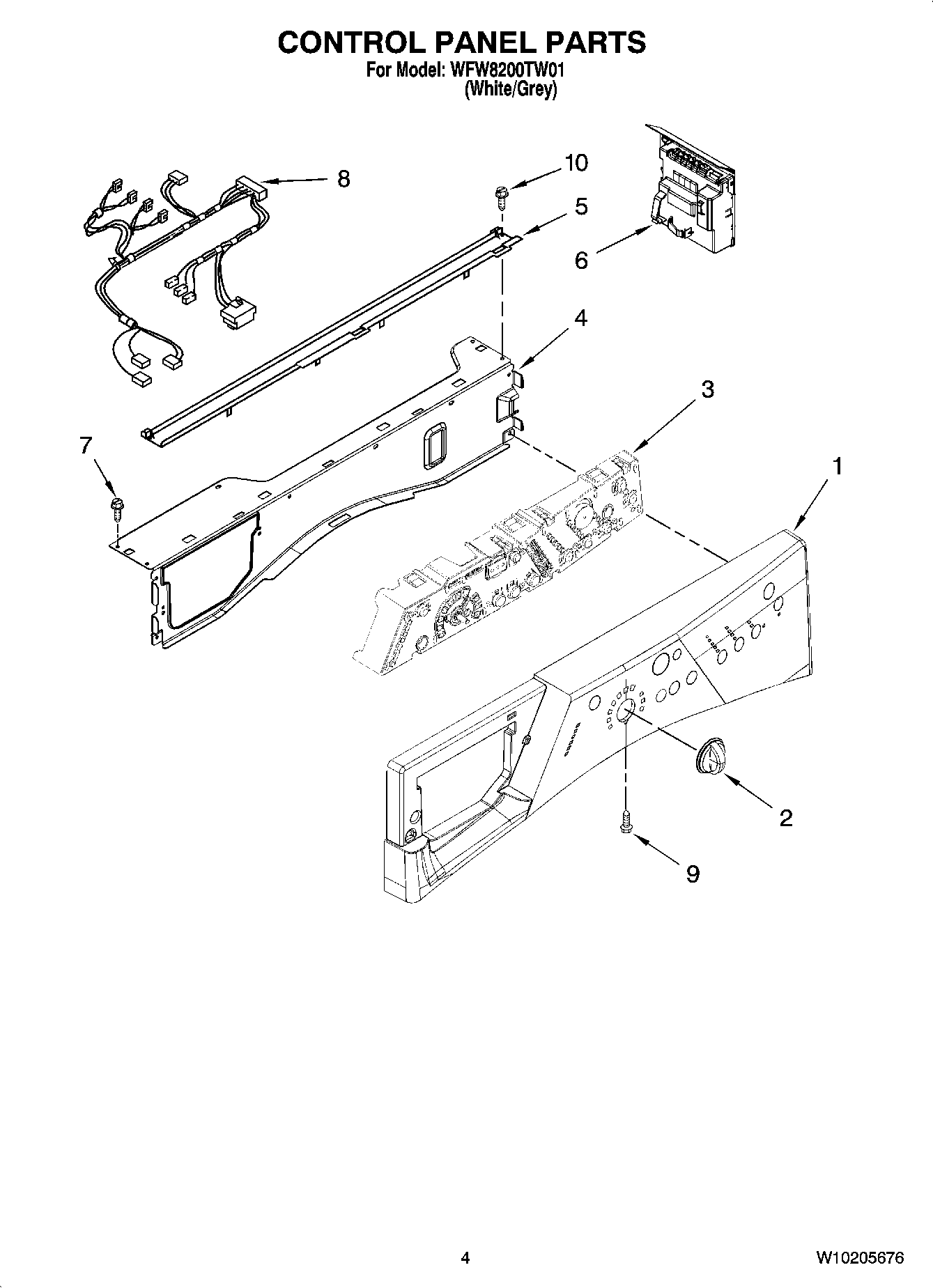

WFW8200TW01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	W10136938 Whirlpool Console
2	ASSEMBLY, KNOB
3	User Interface
4	W10846488 Whirlpool Bracket
5	CHANNEL, WATER
6	WPW10679604 Whirlpool Electronic Control Board + Core
7	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10169929 Whirlpool Wire Harness
9	WP8540282 Whirlpool Screw
10	WP489442 Whirlpool Refrigerator Screw
