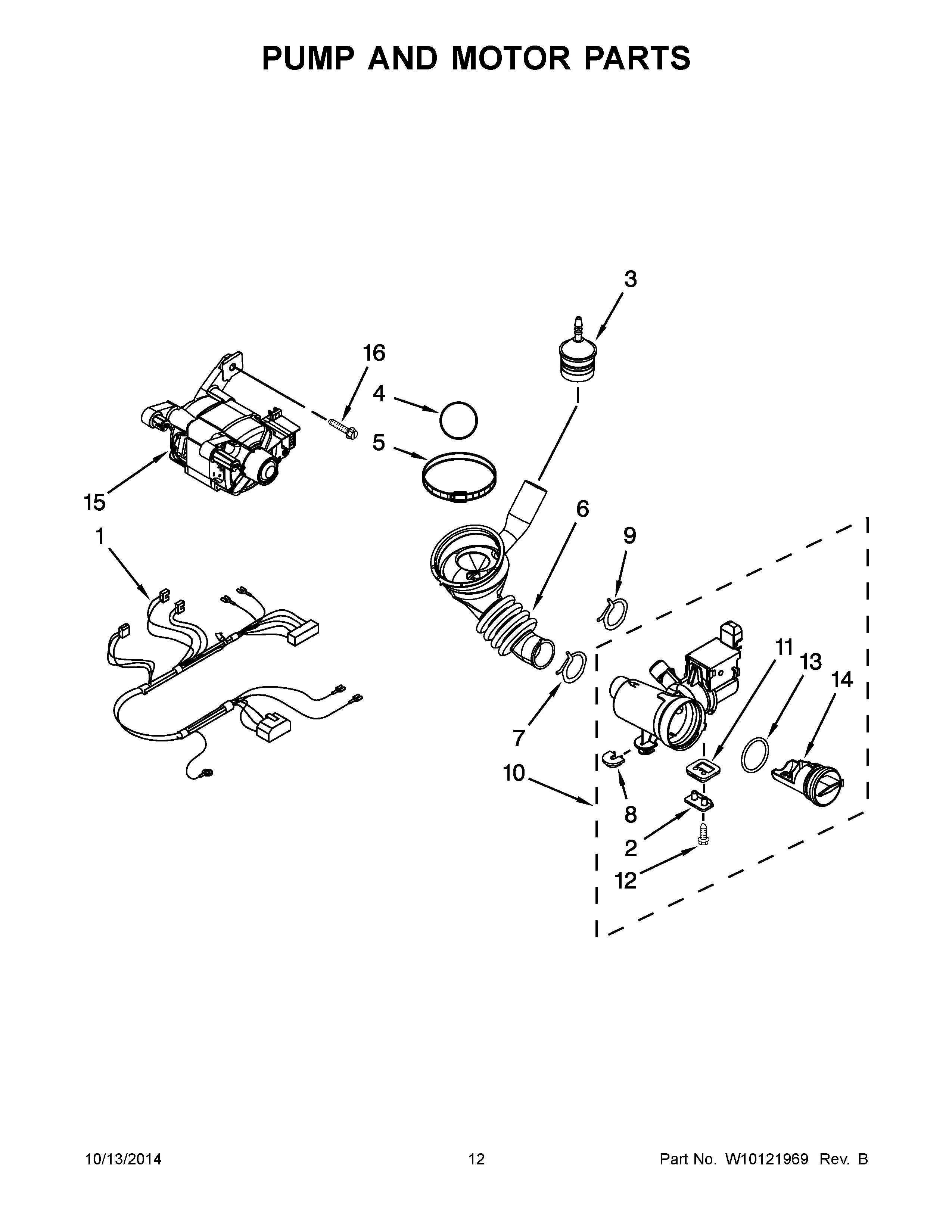

WFW8300SW02 07 – PUMP AND MOTOR PARTS

WFW8300SW02 07 – PUMP AND MOTOR PARTS

Written by

in

WFW8300SW02 07 – PUMP AND MOTOR PARTS

Products

PositionProduct
1W10166995 Whirlpool Wire Harness
28540033 Whirlpool Cap
3WPW10405608 Whirlpool Trap
4BALL
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8W10034820 Whirlpool Grommet
9WP356138 Whirlpool Hose Clamp
10WPW10730972 Whirlpool Washer Water Pump
11W10034830 Whirlpool Grommet
128533964 Whirlpool Screw
15MOTOR, DRIVE
168540134 Whirlpool Screw
