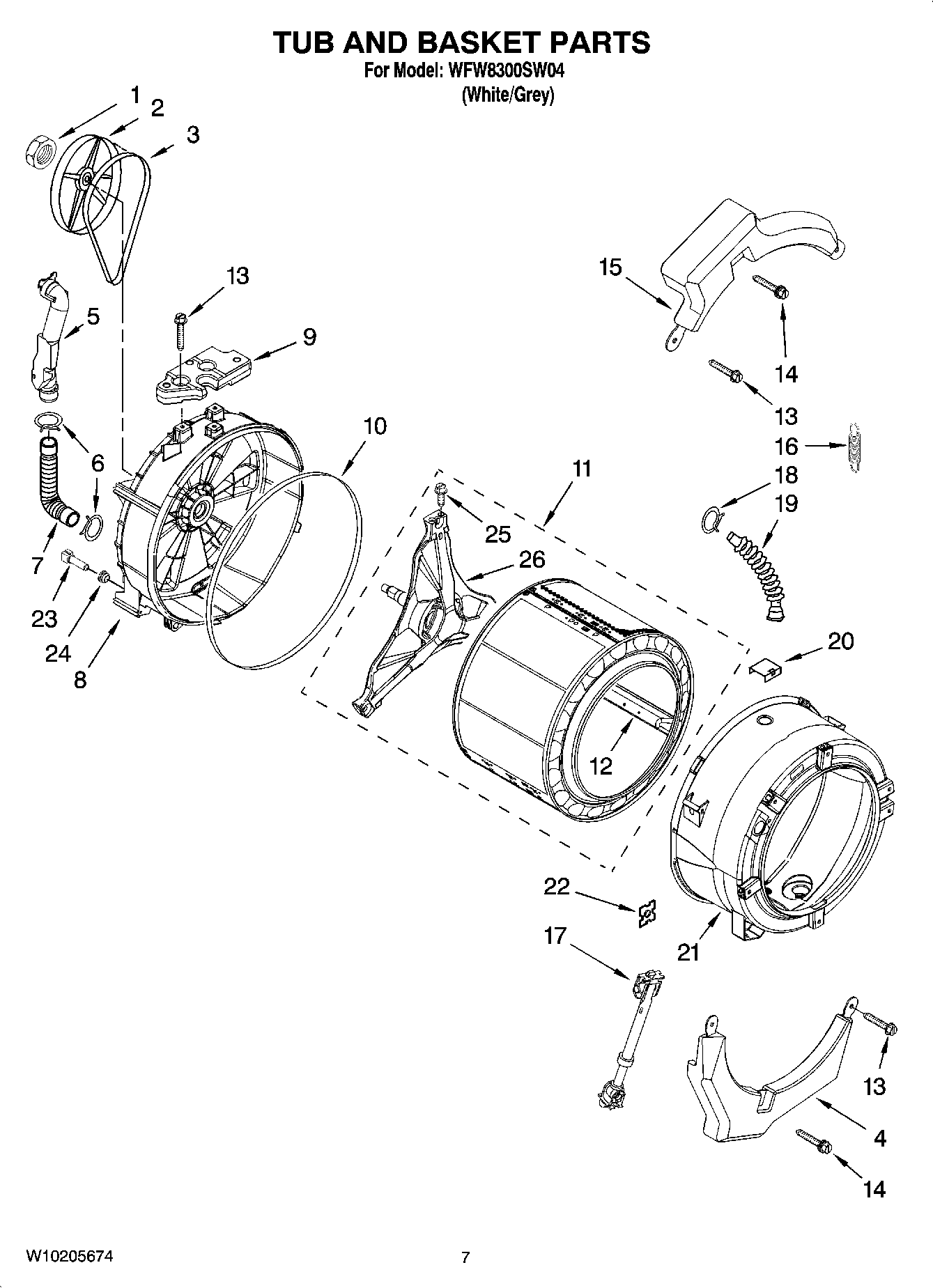

WFW8300SW04 06 – TUB AND BASKET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	ACCESSORY PARTS
	W10135699 Whirlpool Affresh Cleaner Tablets
	285863 Whirlpool Drain Hose Extension 4'
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WP8540101 Whirlpool Washer Drive Belt
4	W10200297 Whirlpool Counterweight
5	W10112169 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
8	280251 Whirlpool Outer Tub OS3
9	Counterweight, Rear
10	WPW10111158 Whirlpool Gasket Assembly
11	BASKET, COMPLETE
12	WP8540456 Whirlpool Baffle Assembly
13	W11685857 Whirlpool Screw Assembly
14	BOLT ASSEMBLY COUNTERWEIGHT CENTER HOLE
15	Counterweight, Front Upper
16	280159 Whirlpool Spring Assembly
17	WPW10163171 Whirlpool Shock Absorber
18	3363365 Whirlpool Clamp
19	WP8540015 Whirlpool Hose Assembly
20	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	WPW10467289 Whirlpool Sensor
24	W11590578 Whirlpool Seal
25	WP8540382 Whirlpool Screw
26	Crosspiece Assembly
