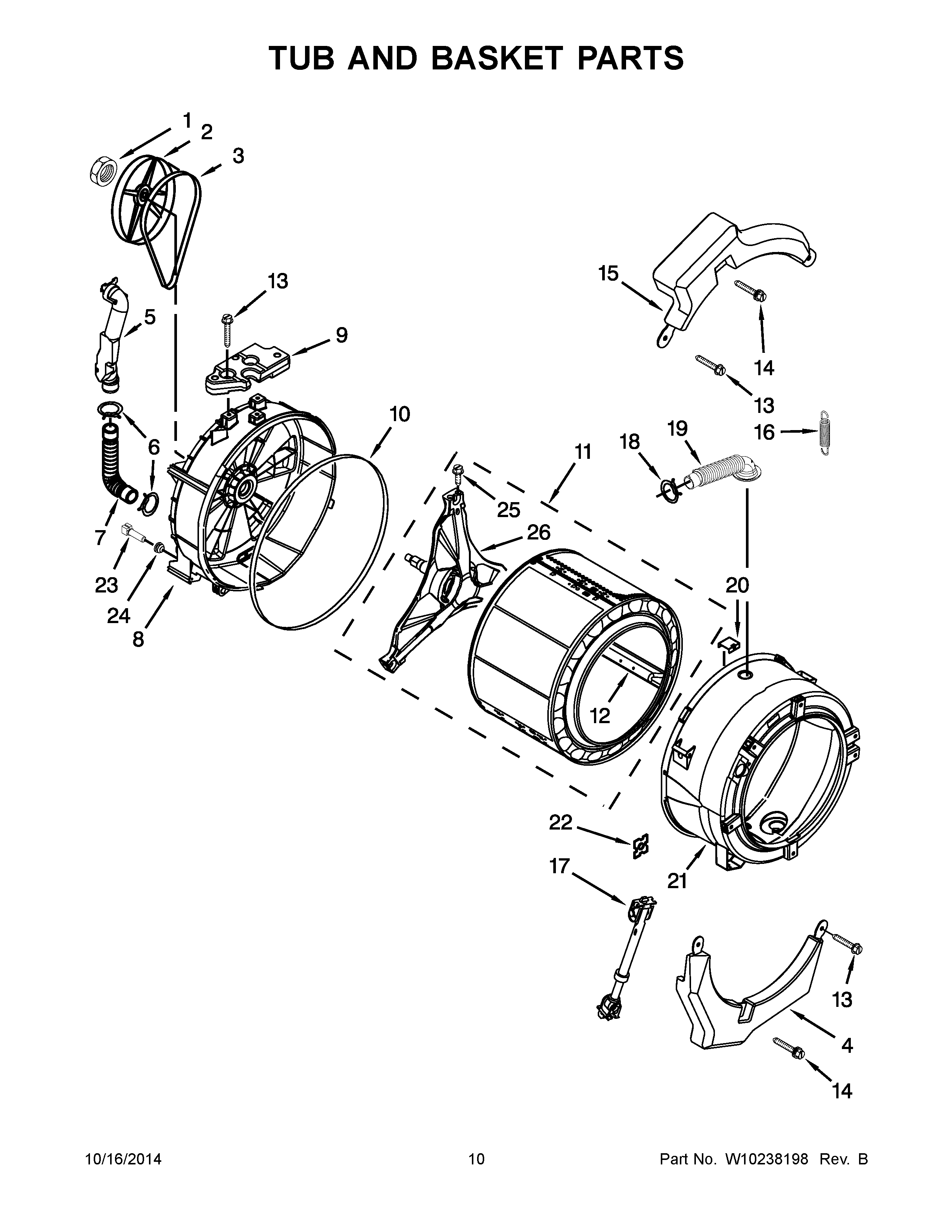

WFW8300SW05 06 – TUB AND BASKET PARTS

Products

PositionProduct
1WPW10283361 Whirlpool Nut
2WP8540088C Whirlpool Pulley
3WP8540101 Whirlpool Washer Drive Belt
4W10200297 Whirlpool Counterweight
5W10112169 Whirlpool Vent Pipe
68540010 Whirlpool Clamp
7W11398765 Whirlpool Hose
8W10364247 Whirlpool Oven Outer Rear Tub
9Counterweight, Rear
10WPW10111158 Whirlpool Gasket Assembly
11BASKET, COMPLETE
12WP8540456 Whirlpool Baffle Assembly
13W11685857 Whirlpool Screw Assembly
14BOLT ASSEMBLY COUNTERWEIGHT CENTER HOLE
15Counterweight, Front Upper
16280159 Whirlpool Spring Assembly
17WPW10163171 Whirlpool Shock Absorber
183363365 Whirlpool Clamp
19WP8540015 Whirlpool Hose Assembly
20WP8540092 Whirlpool Clamp
21W10277540 Whirlpool Outer Tub
22WP8182512 Whirlpool Nut Assembly
23WPW10467289 Whirlpool Sensor
24W11590578 Whirlpool Seal
25WP8540382 Whirlpool Screw
26Crosspiece Assembly
