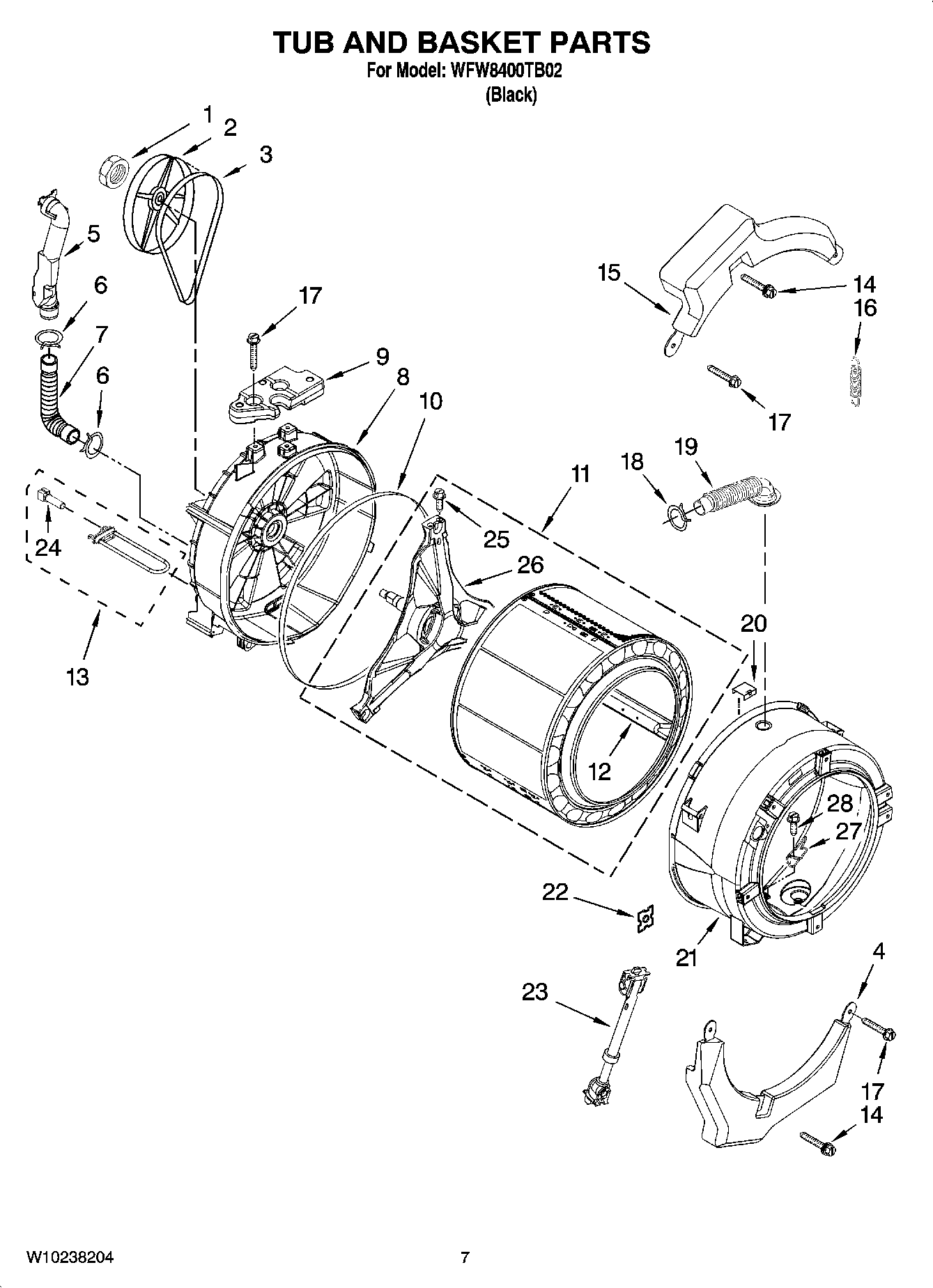

WFW8400TB02 06 – TUB AND BASKET PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

Products

Position	Product
	350938 Whirlpool Spray Gun
	ACCESSORY PARTS
	W10135699 Whirlpool Affresh Cleaner Tablets
	285863 Whirlpool Drain Hose Extension 4'
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WPL 786032
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WP8540101 Whirlpool Washer Drive Belt
4	W10200297 Whirlpool Counterweight
5	W10112169 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
8	W10274605 Whirlpool Outer Tub
9	Counterweight, Rear
10	WPW10111158 Whirlpool Gasket Assembly
11	WP8540357 Whirlpool Basket Assembly
12	WP8540360 Whirlpool Baffle
13	WPW10426377 Whirlpool Heater Assembly
14	BOLT ASSEMBLY COUNTERWEIGHT CENTER HOLE
15	Counterweight, Front Upper
16	280159 Whirlpool Spring Assembly
17	W11685857 Whirlpool Screw Assembly
18	3363365 Whirlpool Clamp
19	WP8540015 Whirlpool Hose Assembly
20	WP8540092 Whirlpool Clamp
21	280255 Whirlpool Outer Tub
22	WP8182512 Whirlpool Nut Assembly
23	WPW10163171 Whirlpool Shock Absorber
24	WPW10467289 Whirlpool Sensor
25	WP8540382 Whirlpool Screw
26	ASSEMBLY, CROSSPIECE
27	Bracket, Heating Element
28	W11230114 Whirlpool Screw Assembly
