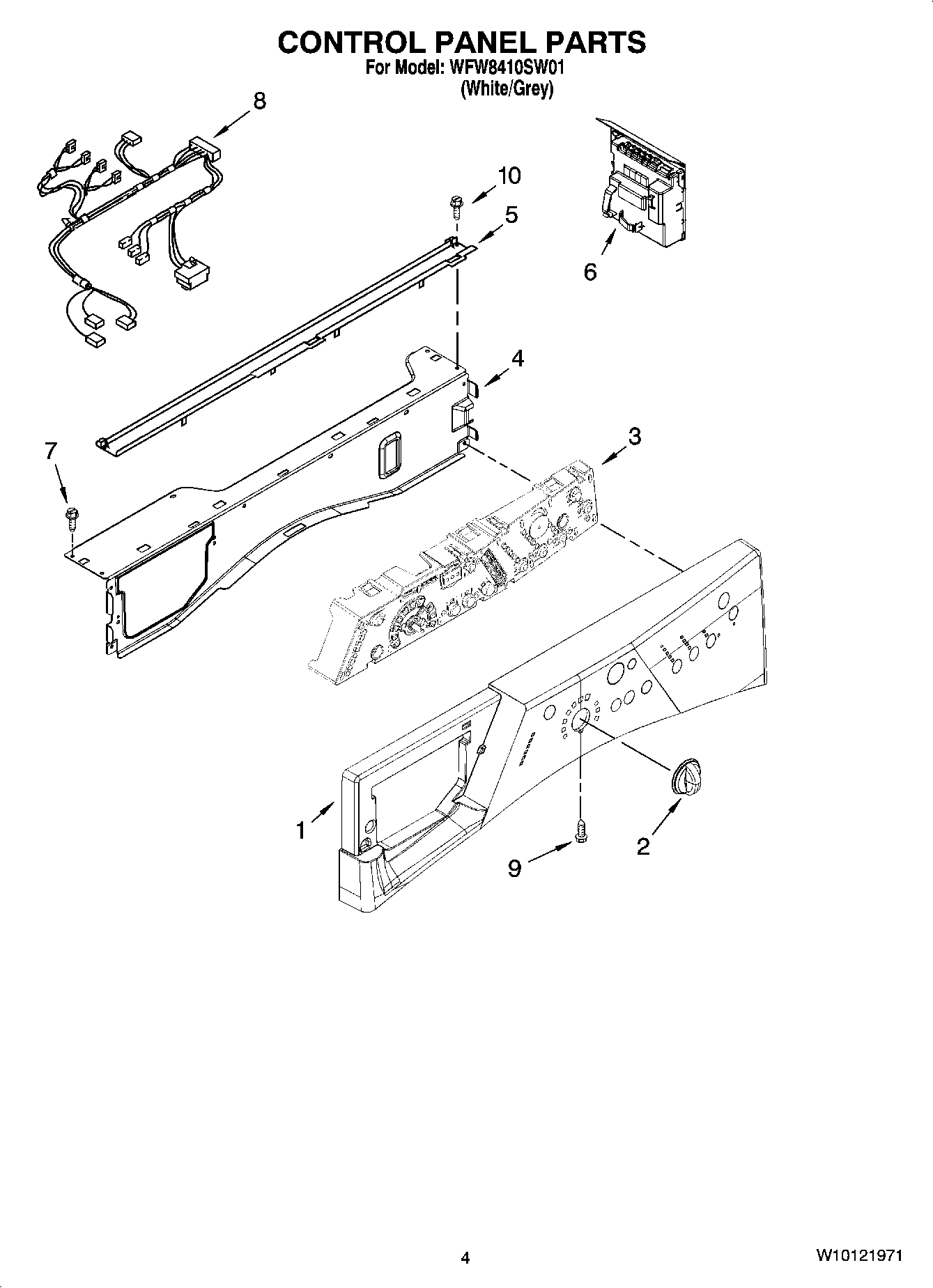

WFW8410SW01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	Panel, Control
2	ASSEMBLY, KNOB
3	WP8571919 Whirlpool Electronic Control Board
4	W10846488 Whirlpool Bracket
5	CHANNEL, WATER
6	Microcomputer, Machine Control
7	WP488729 Whirlpool Refrigerator Door Screw
8	Harness, Wiring (Main)
9	WP8540282 Whirlpool Screw
10	WP489442 Whirlpool Refrigerator Screw
