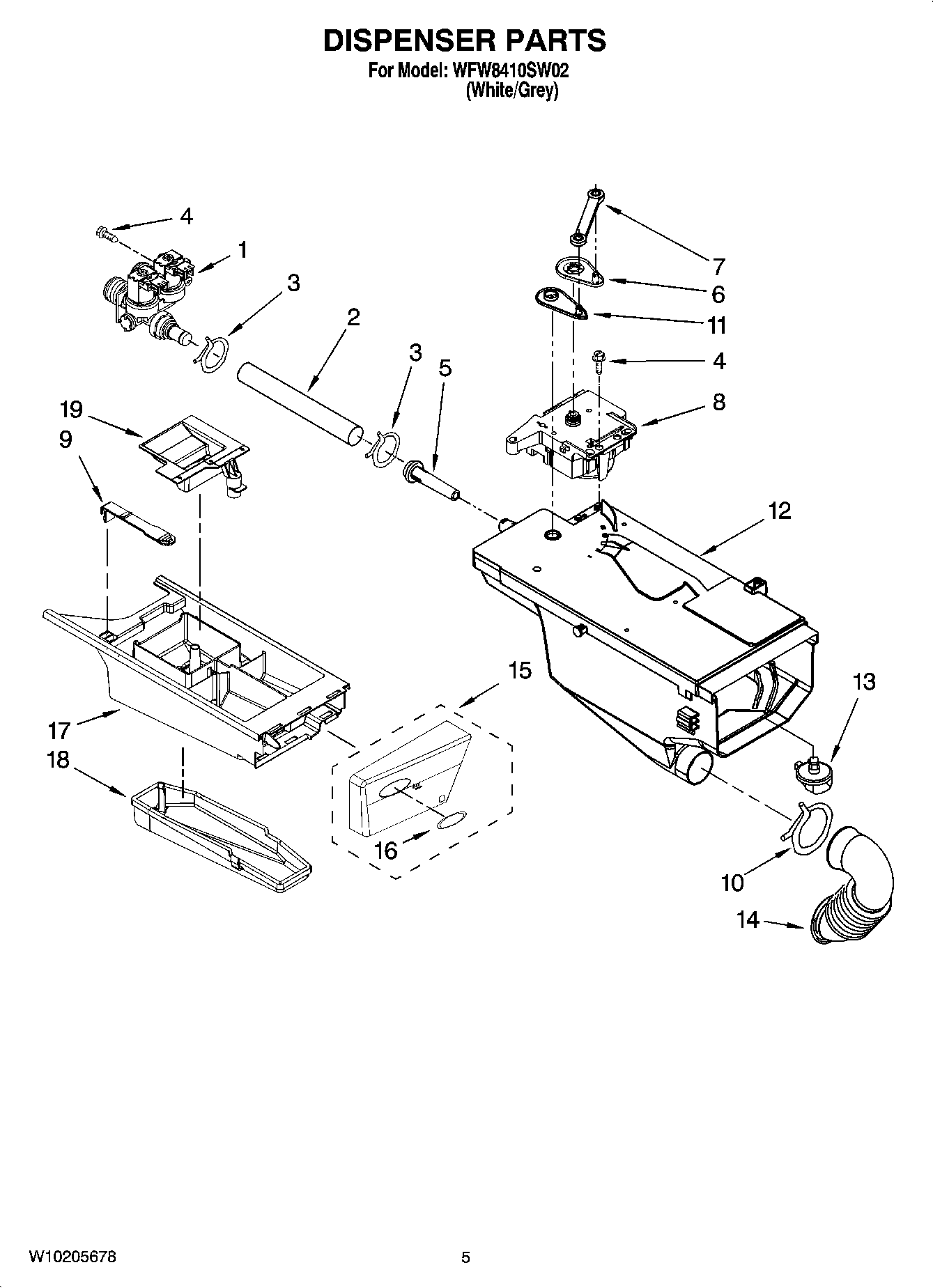

WFW8410SW02 04 – DISPENSER PARTS

Products

Position	Product
1	WP8540751 Whirlpool Water Inlet Valve
2	W10803052 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	WP8540282 Whirlpool Screw
5	WP8183181 Whirlpool Nozzle
6	WP8540393 Whirlpool Cam
7	WP8540394 Whirlpool Lever
8	WPW10143586 Whirlpool Dishwasher Switch
9	WP8181721 Whirlpool Retainer
10	W11622908 Whirlpool Dishwasher Clamp
11	WP8540395 Whirlpool Lever Assembly
12	DISPENSER
13	WP8540053 Whirlpool Nozzle
14	W11366227 Whirlpool Washer Dispenser Hose
15	HANDLE, DRAWER
16	Medallion
17	WP8540402 Whirlpool Washer Detergent Dispenser Drawer Assembly
18	WP8540399 Whirlpool Cover Assembly
19	WP8540429 Whirlpool Dispenser Assembly
