WFW8500SR01 03 – CONTROL PANEL PARTS
Written by
in

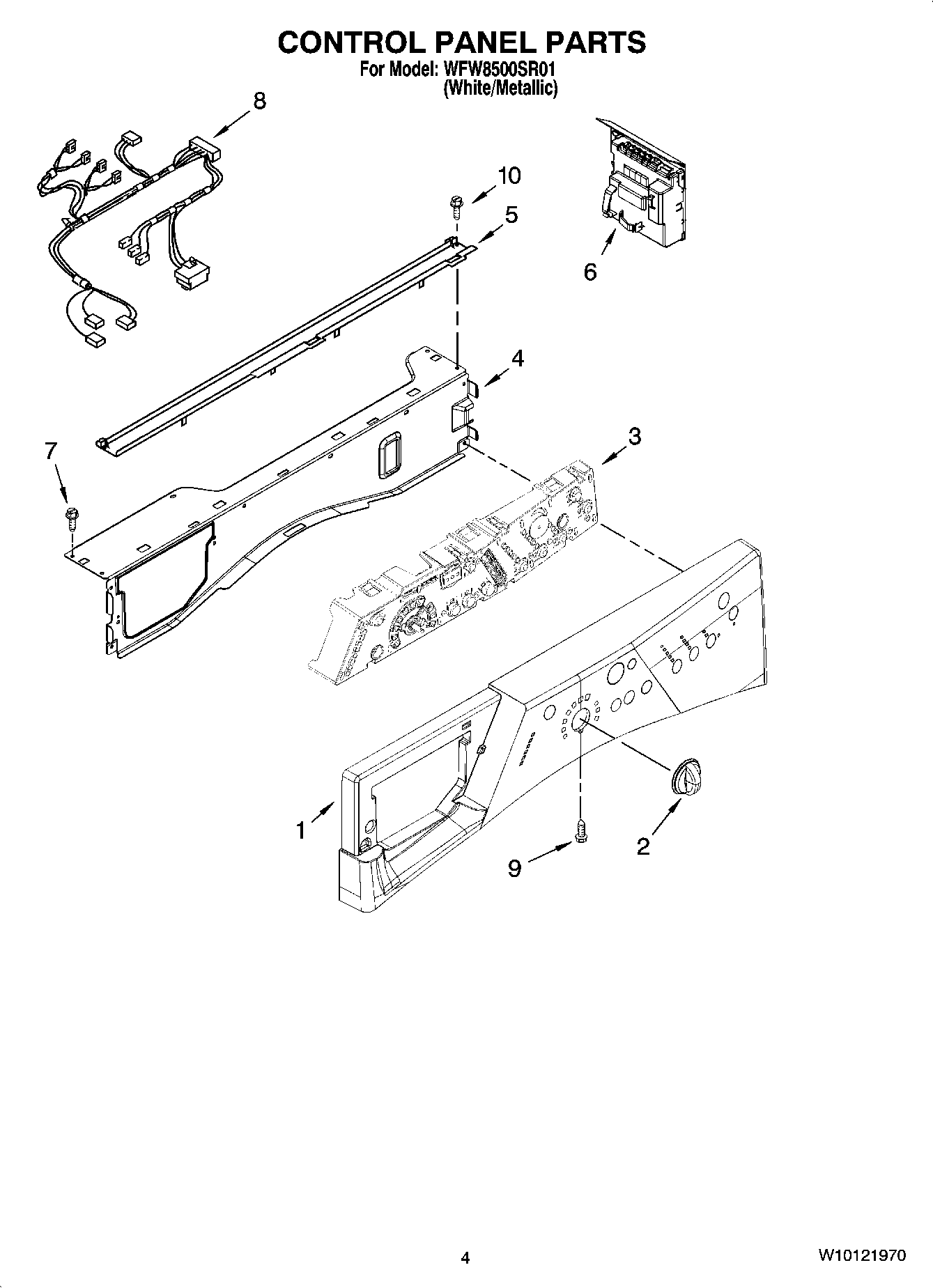

WFW8500SR01 03 – CONTROL PANEL PARTS
Products
Position
Product
1
Panel, Control
2
WP8574964 Whirlpool Control Knob
3
User Interface
4
W10846488 Whirlpool Bracket
5
CHANNEL, WATER
6
WPW10525357-includeCORE Whirlpool WPW10525357 Refrigerator Electronic Control Board + Core
7
WP488729 Whirlpool Refrigerator Door Screw
8
Harness, Wiring (Main)
9
WP8540282 Whirlpool Screw
10
WP489442 Whirlpool Refrigerator Screw
←
