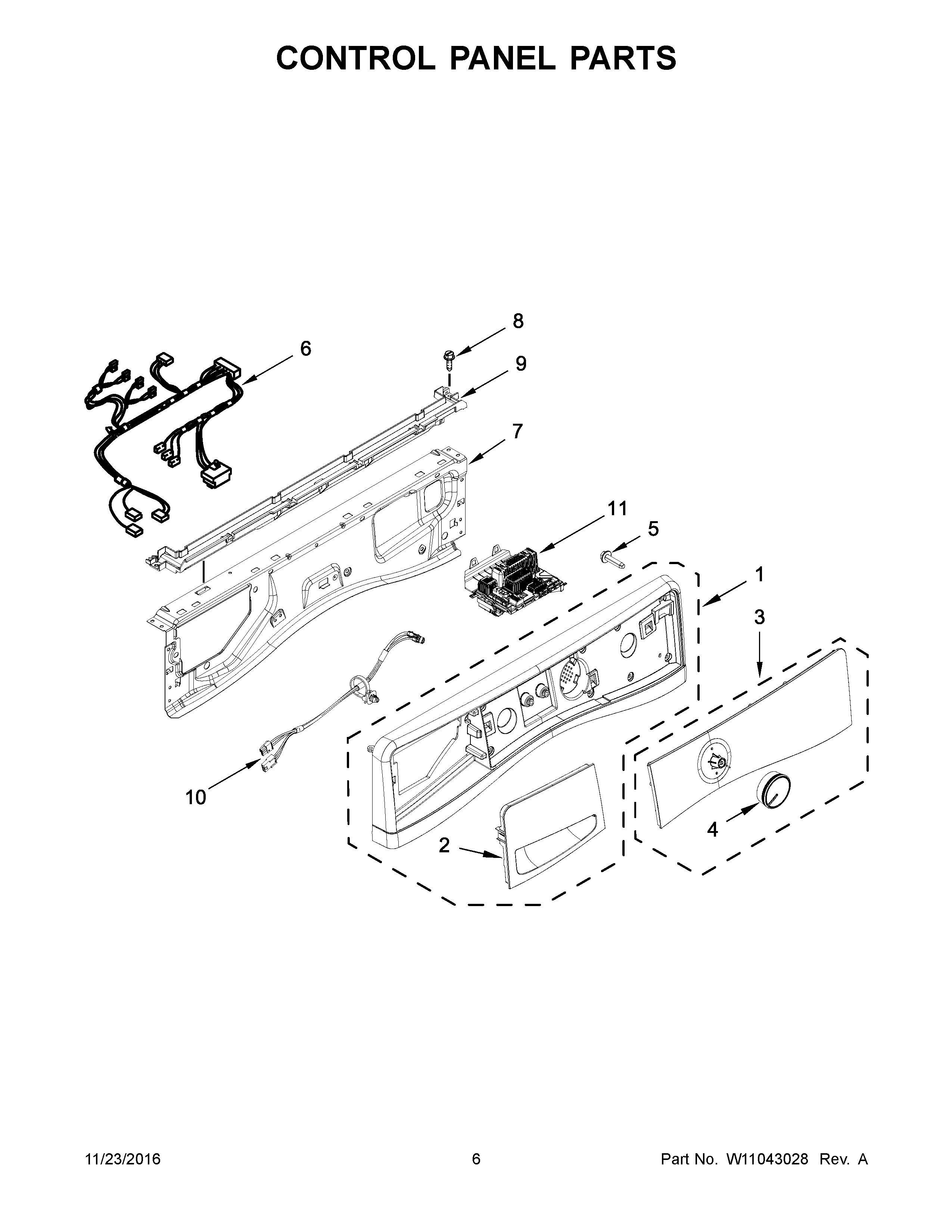

WFW85HEFC1 04 – CONTROL PANEL PARTS

WFW85HEFC1 04 – CONTROL PANEL PARTS

Written by

in

WFW85HEFC1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1W11218392 Whirlpool Console
1AASSEMBLY, CONSOLE (CHROME SHADOW)
2AHANDLE, DRAWER (CHROME SHADOW)
2W11223724 Whirlpool Handle
3W10903218 Whirlpool Control Panel
3AW10903217 Whirlpool Control Panel
4W10875909 Whirlpool Timer Knob
5W10589828 Whirlpool Screw
6W11229597 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10WPW10442440 Whirlpool Wire Harness
11W11201290-includeCORE Whirlpool W11201290 Refrigerator Electronic Control Board + Core
