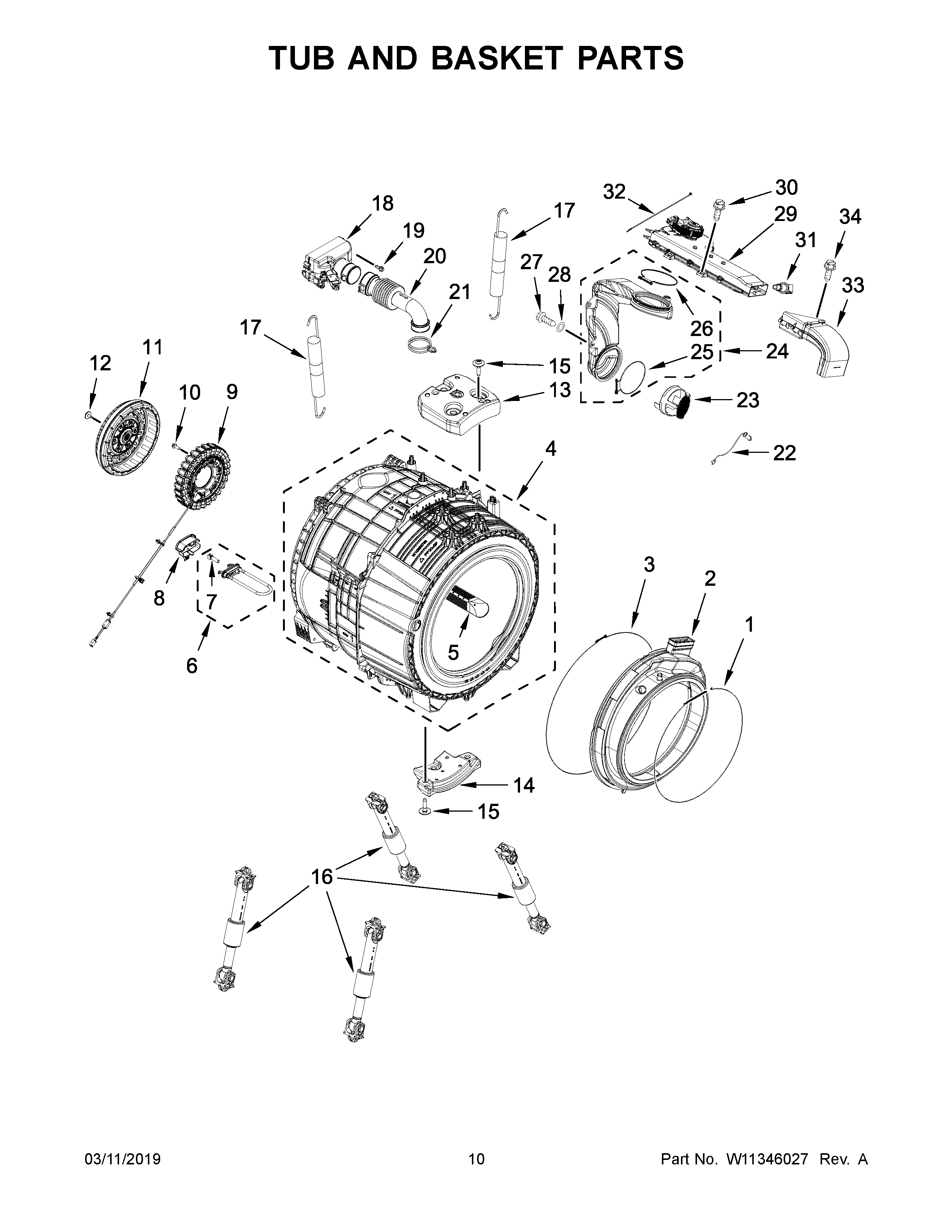

WFW8620HC1 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	W11318722 Whirlpool Bellow
3	W11314649 Whirlpool Clamp
4	W11378552 Whirlpool Outer Tub
5	W11460395 Whirlpool Baffle
6	W11314664 Whirlpool Heater
8	W11314776 Whirlpool Appliance Cover
9	W11354542 Whirlpool Stator
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11314657 Whirlpool Screw
13	W11316052 Whirlpool Counterweight
14	W11316053 Whirlpool Counterweight
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	W11318807 Whirlpool Channel Assembly
19	W11230114 Whirlpool Screw Assembly
20	W11316274 Whirlpool Hose
21	WP371502 Whirlpool Clamp
22	W11315707 Whirlpool Light
23	W11318725 Whirlpool Filter Assembly
24	W11321013 Whirlpool Channel
25	W11318727 Whirlpool Hose Clamp
26	CLAMP, DUCT TO DRYER
27	W11116979 Whirlpool Screw
28	WASHER
29	W11318729 Whirlpool Heater
30	WPW10004910 Whirlpool Screw
31	W11712681 Whirlpool Sensor
32	WPW10339879 Whirlpool Wire Tie
33	W11315710 Whirlpool Adapter
34	WP489128 Whirlpool Refrigerator Screw
