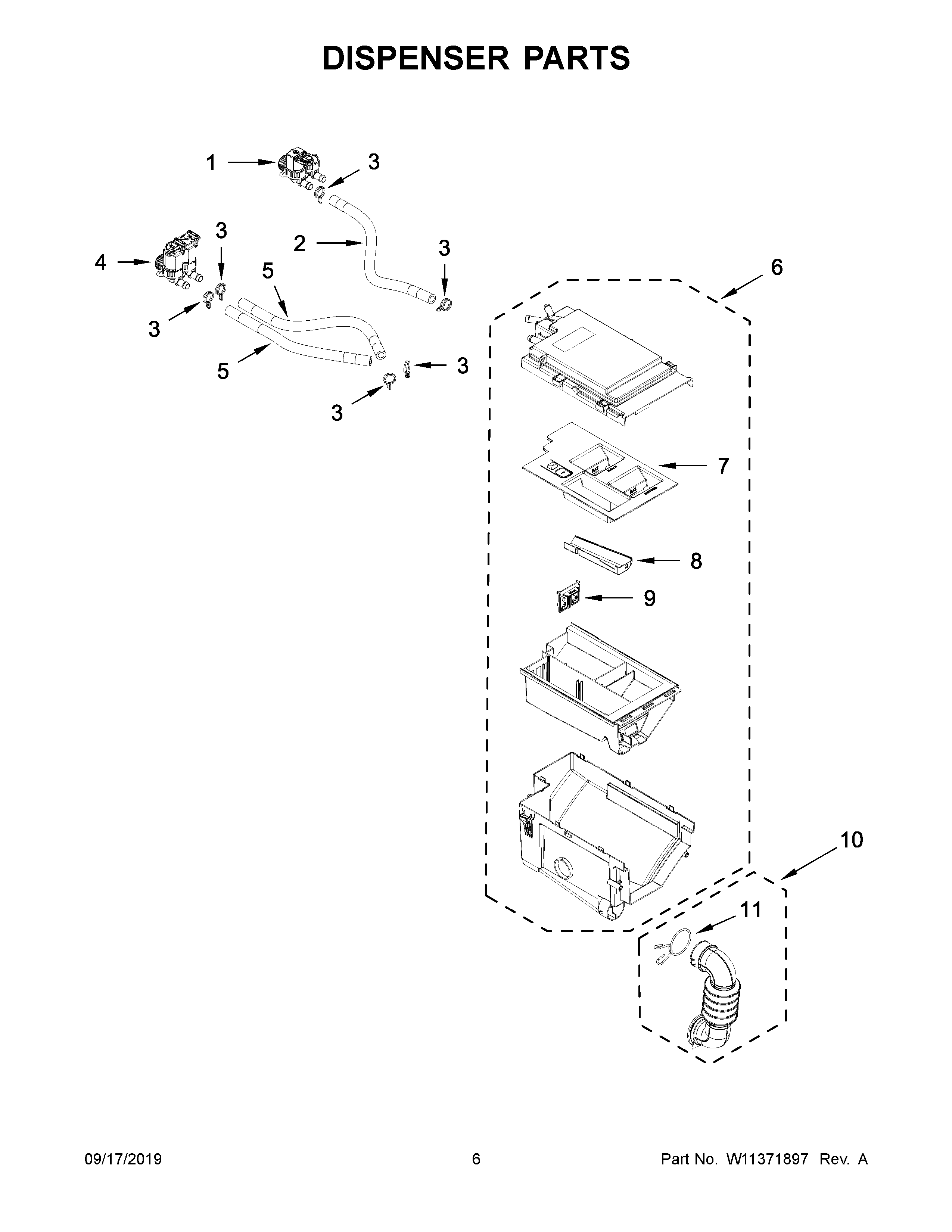

WFW8620HW2 04 – DISPENSER PARTS

WFW8620HW2 04 – DISPENSER PARTS

Written by

in

WFW8620HW2 04 – DISPENSER PARTS

Products

PositionProduct
1VALVE
2W11316257 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4W11688995 Whirlpool Valve
5W11316599 Whirlpool Hose
6DRAWER
7COVER
8W11316375 Whirlpool Cover Assembly
9W11316603 Whirlpool Divider Assembly
10W11316604 Whirlpool Hose
11W10239910 Whirlpool Clamp
