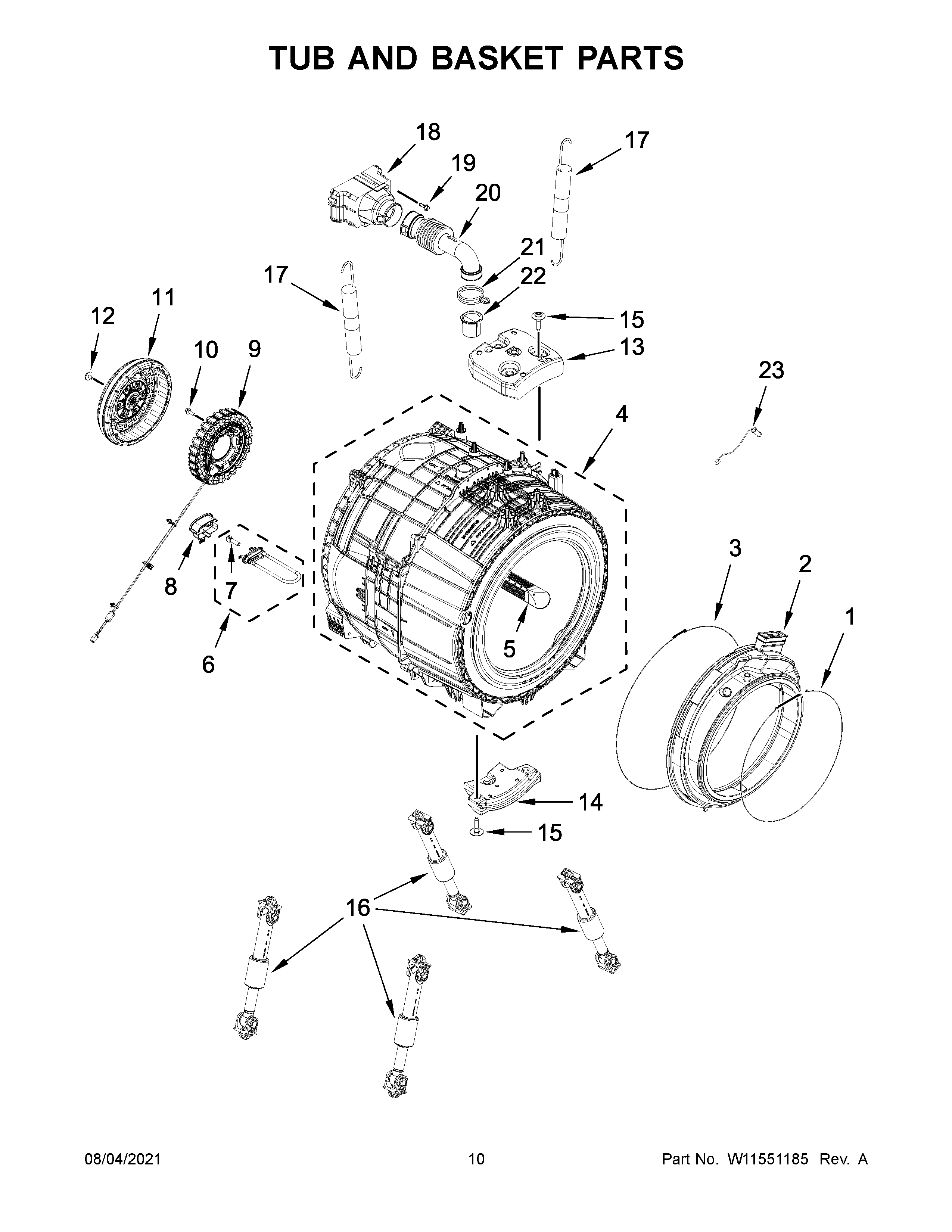

WFW8620HW4 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	W11384425 Whirlpool Bellow
3	W11314649 Whirlpool Clamp
4	W11378552 Whirlpool Outer Tub
5	W11460395 Whirlpool Baffle
6	W11314664 Whirlpool Heater
8	W11314776 Whirlpool Appliance Cover
9	W11354542 Whirlpool Stator
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11557803 Whirlpool Screw
13	W11316052 Whirlpool Counterweight
14	W11481720 Whirlpool Counterweight Assembly
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	FAN
19	W11230114 Whirlpool Screw Assembly
20	W11316274 Whirlpool Hose
21	WP371502 Whirlpool Clamp
22	W11557921 Whirlpool Vent Coupling
23	W11315707 Whirlpool Light
