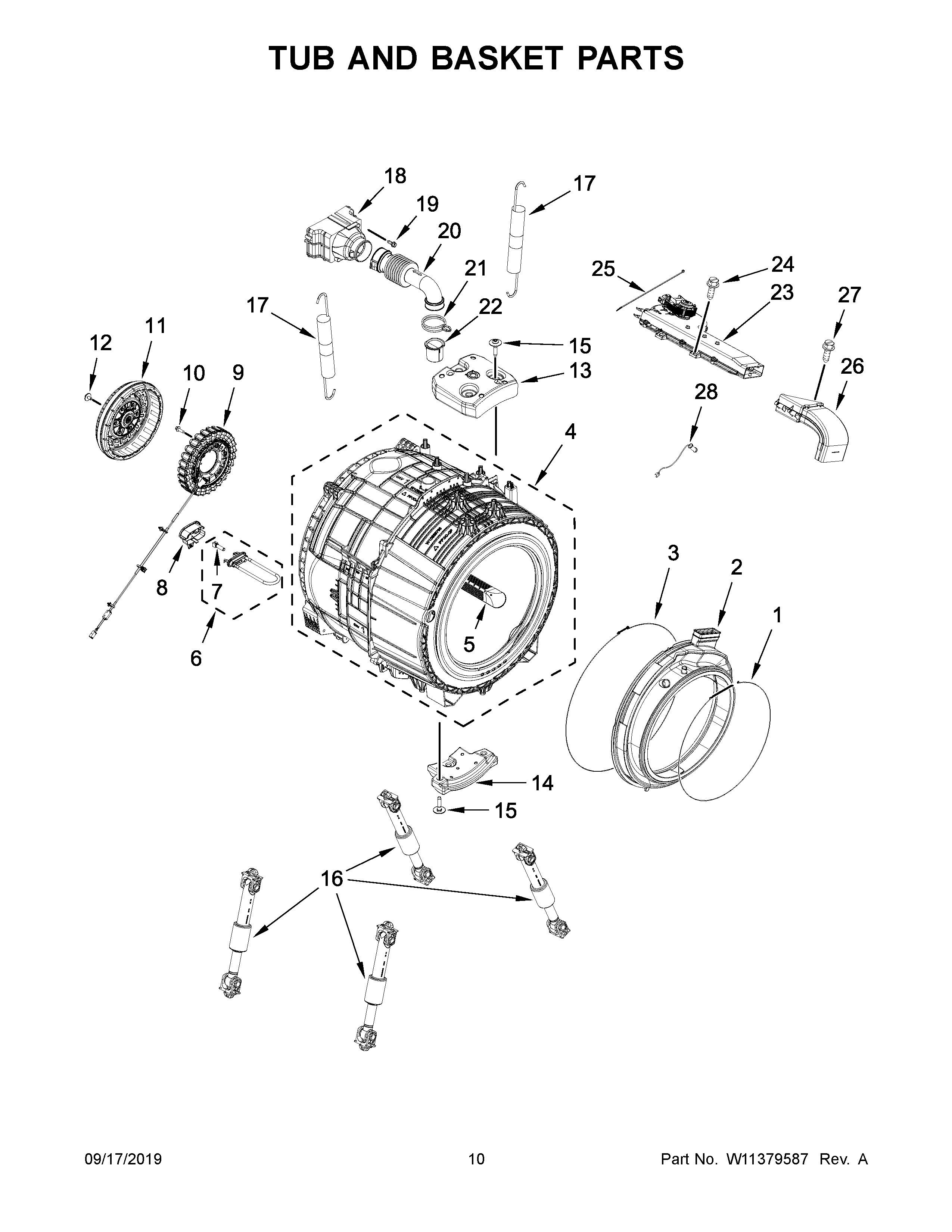

WFW862CHC2 06 – TUB AND BASKET PARTS

Products

Position	Product
1	CLAMP
2	W11318722 Whirlpool Bellow
3	W11314649 Whirlpool Clamp
4	W11460604 Whirlpool TUB & DRUM Assembly SHORT VENT
5	W11460395 Whirlpool Baffle
6	W11314664 Whirlpool Heater
8	W11314776 Whirlpool Appliance Cover
9	W11354541 Whirlpool Stator
10	W11314661 Whirlpool Screw
11	W11314361 Whirlpool Rotor Assembly
12	W11314657 Whirlpool Screw
13	W11314650 Whirlpool Counterweight
14	W11607191 Whirlpool Counterweight
15	W11314651 Whirlpool Screw
16	SHOCK-ABSR (1 EA)
17	SPRING
18	W11316248 Whirlpool Housing
19	W11230114 Whirlpool Screw Assembly
20	W11316247 Whirlpool Hose Assembly
21	WP371502 Whirlpool Clamp
22	VENTCOUPLING
23	W11384426 Whirlpool Heater
24	WPW10004910 Whirlpool Screw
25	WPW10339879 Whirlpool Wire Tie
26	ASSEMBLY, DUCT DRYER TO BELLOW
27	WP489128 Whirlpool Refrigerator Screw
28	W11315707 Whirlpool Light
