WFW8640BW1 06 – PUMP PARTS – Aparts

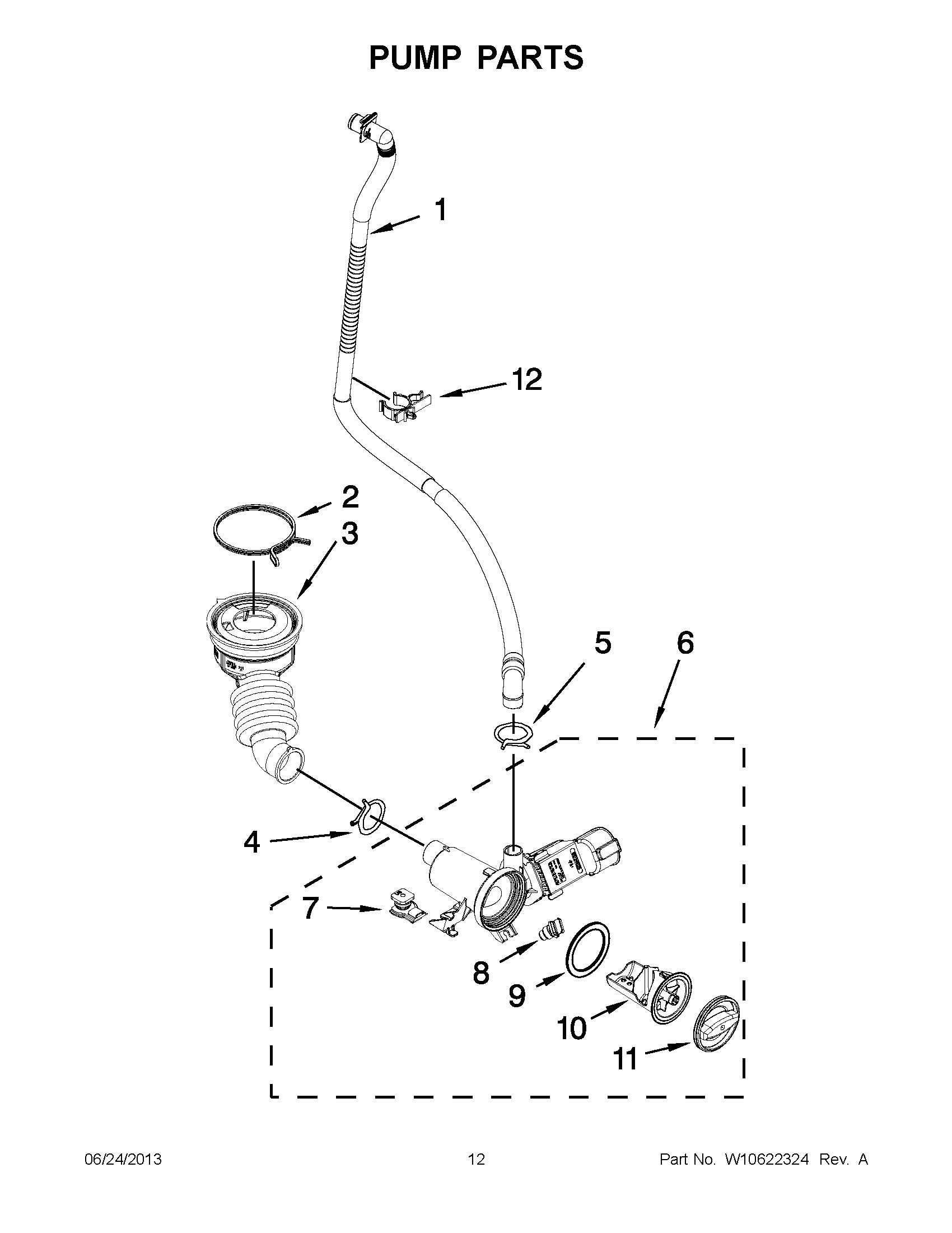

WFW8640BW1 06 – PUMP PARTS

Products

Position	Product
1	WPW10267642 Whirlpool Hose
2	WP696392 Whirlpool Hose Clamp
3	WPW10467168 Whirlpool Hose Assembly
4	W10273036 Whirlpool Hose Clamp
5	WP356138 Whirlpool Hose Clamp
6	WPW10391443 Whirlpool Water Pump
7	W10391449 Whirlpool Grommet
8	WPW10526202 Whirlpool Grommet
9	W10391451 Whirlpool Seal
10	W10391445 Whirlpool Filter
11	W10391446 Whirlpool Cap
12	W10441646 Whirlpool Clip Assembly
