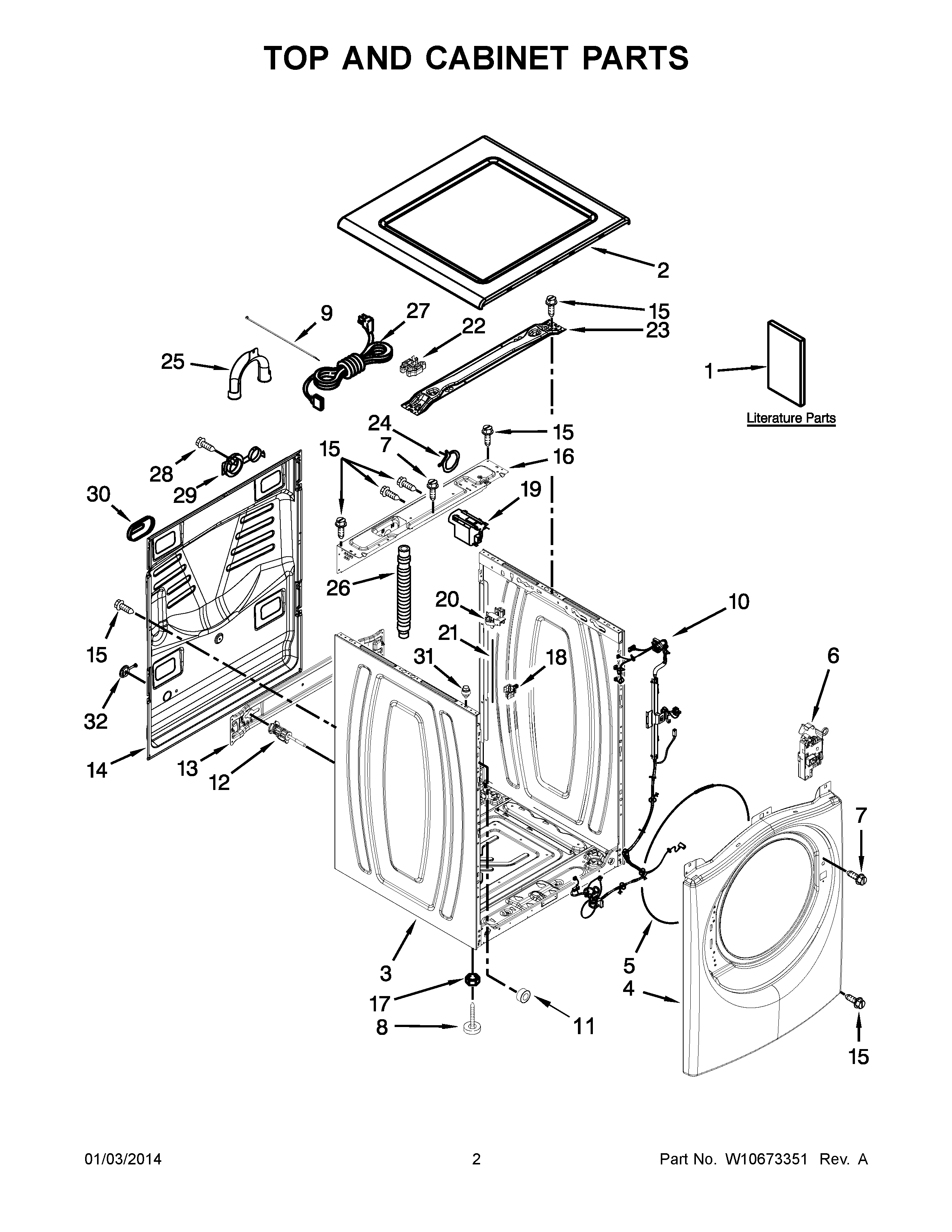

WFW86HEBC2 02 – TOP AND CABINET PARTS

Products

Position	Product
1	TECH SHEET
1	OWNERS MANUAL
1	INSTALLATION INSTRUCTIONS
1	ENERGY GUIDE
2	WPW10208373 Whirlpool Top
2	WPW10460693 Whirlpool Top Assembly
3	W11166595 Whirlpool Cabinet Assembly
3	W11166600 Whirlpool Cabinet
4	WPW10441111 Whirlpool Panel
4	WPW10441116 Whirlpool Panel
5	CLAMP
6	WPW10443885 Whirlpool Door Lock
7	WP8540282 Whirlpool Screw
8	WPW10001130 Whirlpool Leveling Leg
9	WPW10339879 Whirlpool Wire Tie
10	W10746378 Whirlpool Wire Harness
11	W10323182 Whirlpool Spacer
12	W10763470 Whirlpool Bolt
13	W10237498 Whirlpool Bracket Assembly
14	PANEL, REAR
15	WP489464 Whirlpool Refrigerator Screw
16	WPW10467483 Whirlpool Bracket
17	WP3359452 Whirlpool Nut
18	WPW10181028 Whirlpool Clip
19	WPW10367632 Whirlpool Filter
20	WPW10448876 Whirlpool Pressure Switch
21	W11044559 Whirlpool Hose
22	W10245452 Whirlpool Retainer
23	W10467484 Whirlpool Bracket
24	WP356138 Whirlpool Hose Clamp
25	WPW10280024 Whirlpool Retainer
26	W11281268 Whirlpool Hose
27	W11035353 Whirlpool Washer Power Cord
28	WP3351614 Whirlpool Screw
29	W10854051 Whirlpool Cover Assembly
30	WP8540268 Whirlpool Cover Assembly
31	W10208380 Whirlpool Screw
32	W10304004 Whirlpool Cover
