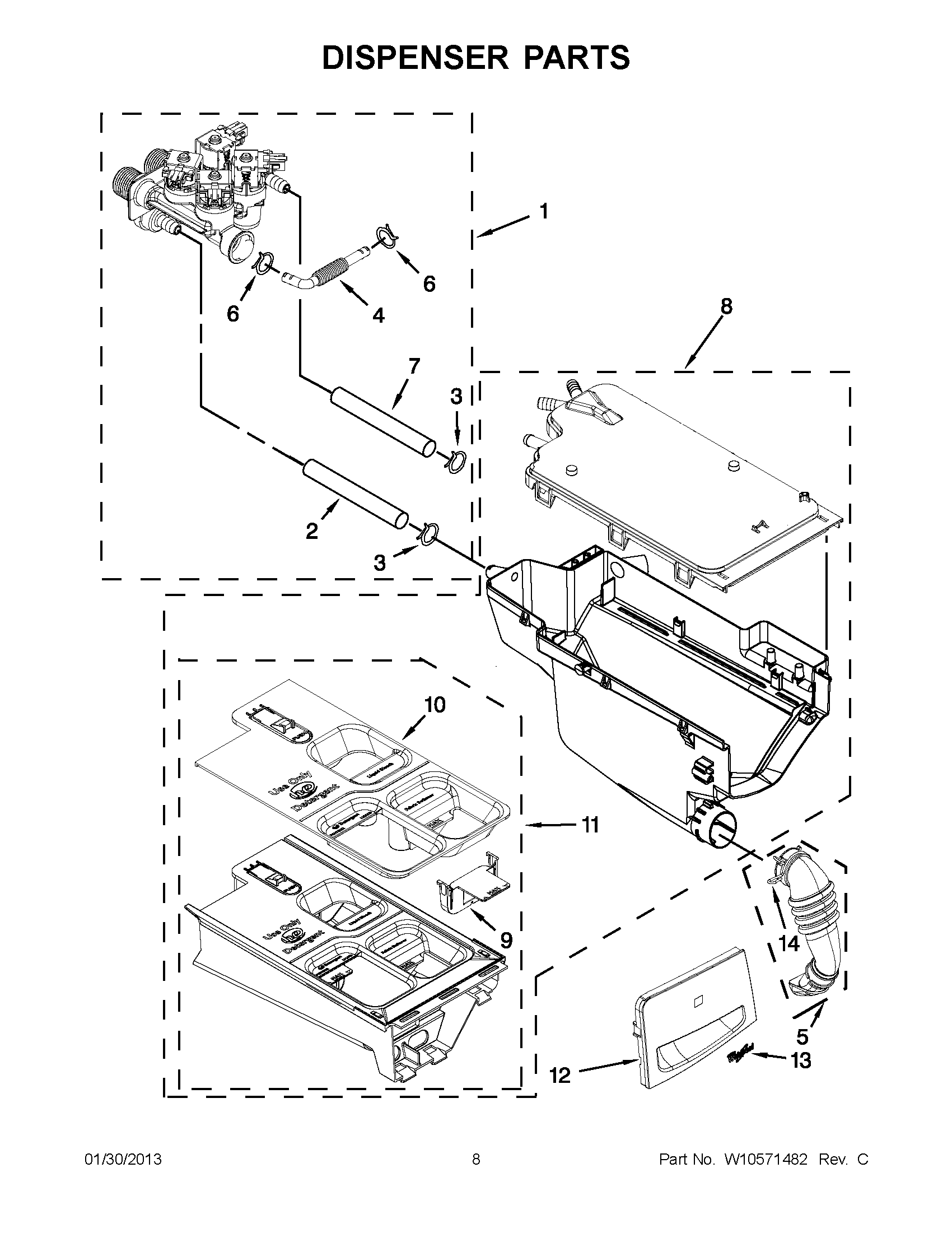

WFW86HEBW0 04 – DISPENSER PARTS

Products

Position	Product
1	WPW10435242 Whirlpool Water Inlet Valve
2	WPW10577770 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	W10435238 Whirlpool Hose
5	WPW10239966 Whirlpool Hose
7	WPW10577787 Whirlpool Hose Assembly
8	W10575334 Whirlpool Washer Detergent Dispenser
9	W11084830 Whirlpool Detergent Divider
10	WPW10365887 Whirlpool Dispenser Cover Housing
11	WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
12	WPW10446403 Whirlpool Handle
12	WPW10446405 Whirlpool Handle Assembly
13	W11178521 Whirlpool Dishwasher Nameplate
14	W10239910 Whirlpool Clamp
