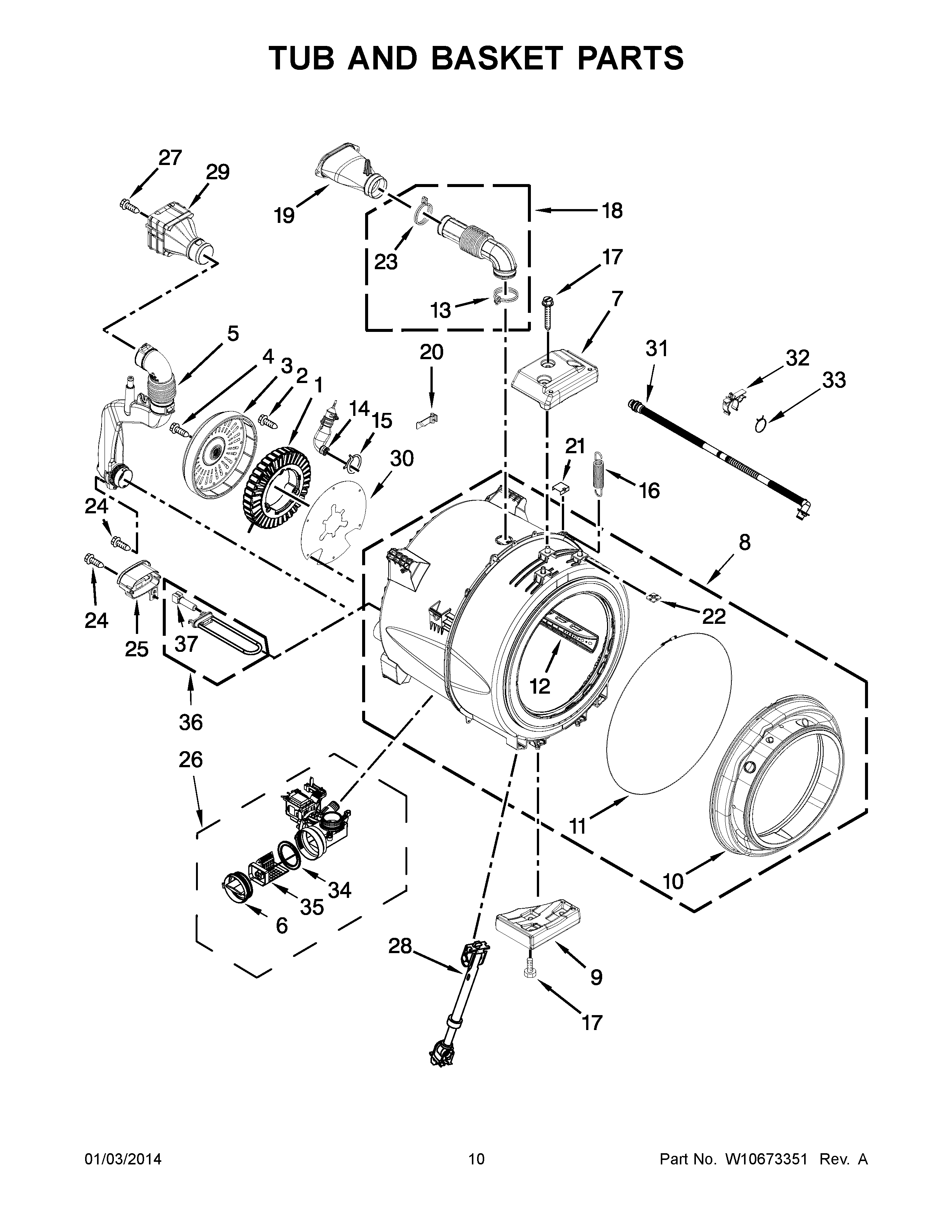

WFW86HEBW2 06 – TUB AND BASKET PARTS

WFW86HEBW2 06 – TUB AND BASKET PARTS

Written by

in

WFW86HEBW2 06 – TUB AND BASKET PARTS

Products

PositionProduct
1W10870752 Whirlpool Stator Assembly
2WPW10253476 Whirlpool Screw
3WPW10453673 Whirlpool Rotor
4W11253212 Whirlpool Dryer Screw
5PIPE, VENTILATION ASSEMBLY
6W11568579 Whirlpool Cap
7W10452854 Whirlpool Counterweight
8WPW10737541 Whirlpool Outer Tub Assembly
9COUNTERWEIGHT, BOTTOM
10W11106747 Whirlpool Washer Front Load Door Boot
11W11218344 Whirlpool Boot Seal Retaining Ring
12W10697830 Whirlpool Baffle
13W10353599 Whirlpool Hose Clamp
14W10903220 Whirlpool Trap Assembly
15CLAMP, HOSE
16W11266650 Whirlpool Spring
17W10261496 Whirlpool Screw
18WPW10568614 Whirlpool Hose
19WPW10352818 Whirlpool Vent Pipe
20W10316388 Whirlpool Clip Assembly
21WP8540092 Whirlpool Clamp
22WP8182512 Whirlpool Nut Assembly
23W10273034 Whirlpool Clamp
24W10306501 Whirlpool Screw
25W10318155 Whirlpool Cover
26WPW10605427 Whirlpool Washer Drain Pump
27WP8540282 Whirlpool Screw
28SHOCK-ABSR
29W10628719 Whirlpool Housing
30W10870753 Whirlpool Shield
31WPW10562025 Whirlpool Hose
32W10441646 Whirlpool Clip Assembly
33WP285655 Whirlpool Hose Clamp
34W11673307 Whirlpool Washer Seal
35W11712579 Whirlpool Filter
36HEATER
37WPW10467289 Whirlpool Sensor
