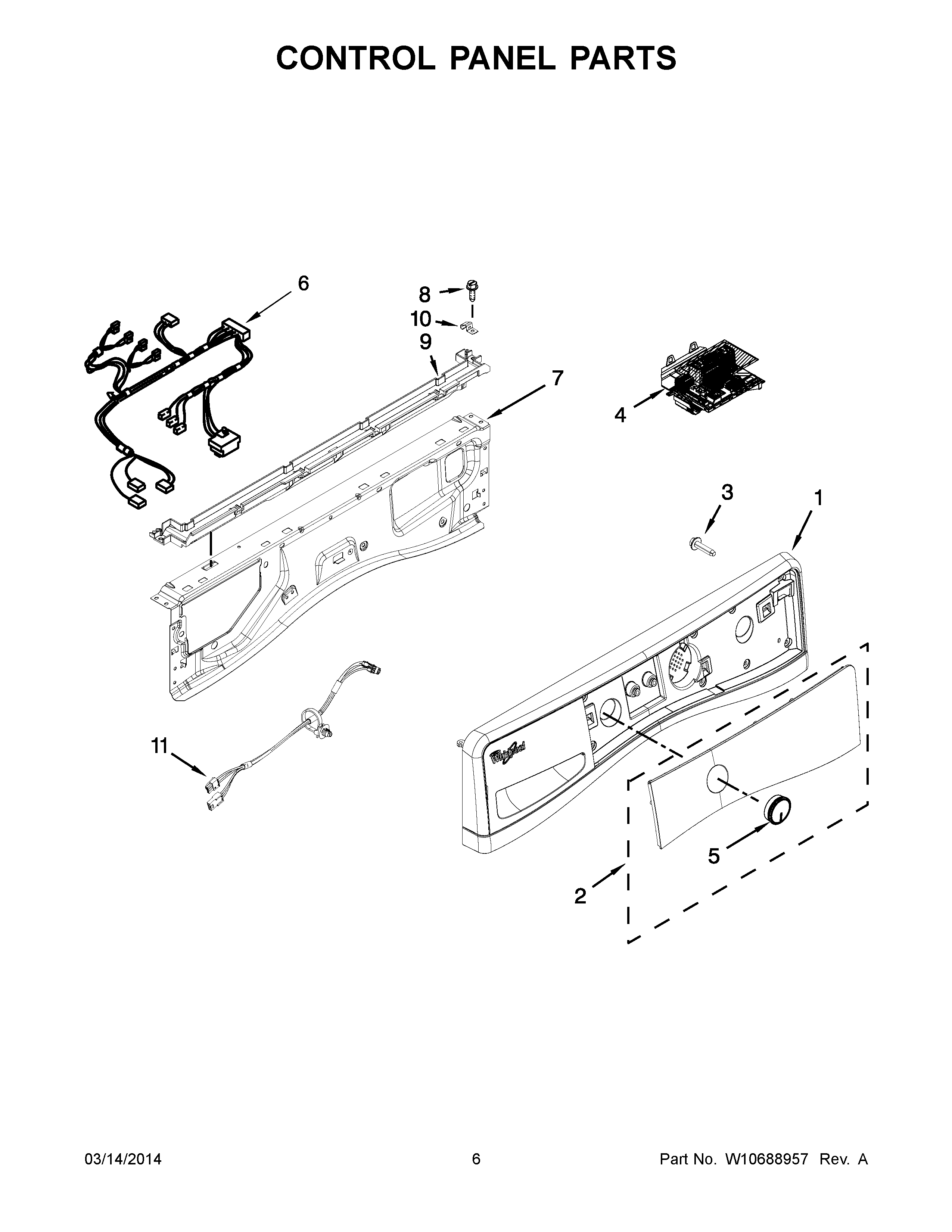

WFW8740DC0 04 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONSOLE (WHITE)
1	WPW10463516 Whirlpool Console
2	ASSEMBLY, IML (CHROME SHADOW)
2	W10750479 Whirlpool Control Panel
3	W10589828 Whirlpool Screw
4	W11029840-includeCORE Whirlpool W11029840 Washer Electronic Control Board + Core
5	WPW10631127 Whirlpool Knob
5	W10875909 Whirlpool Timer Knob
6	W10685627 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	WPW10442440 Whirlpool Wire Harness
