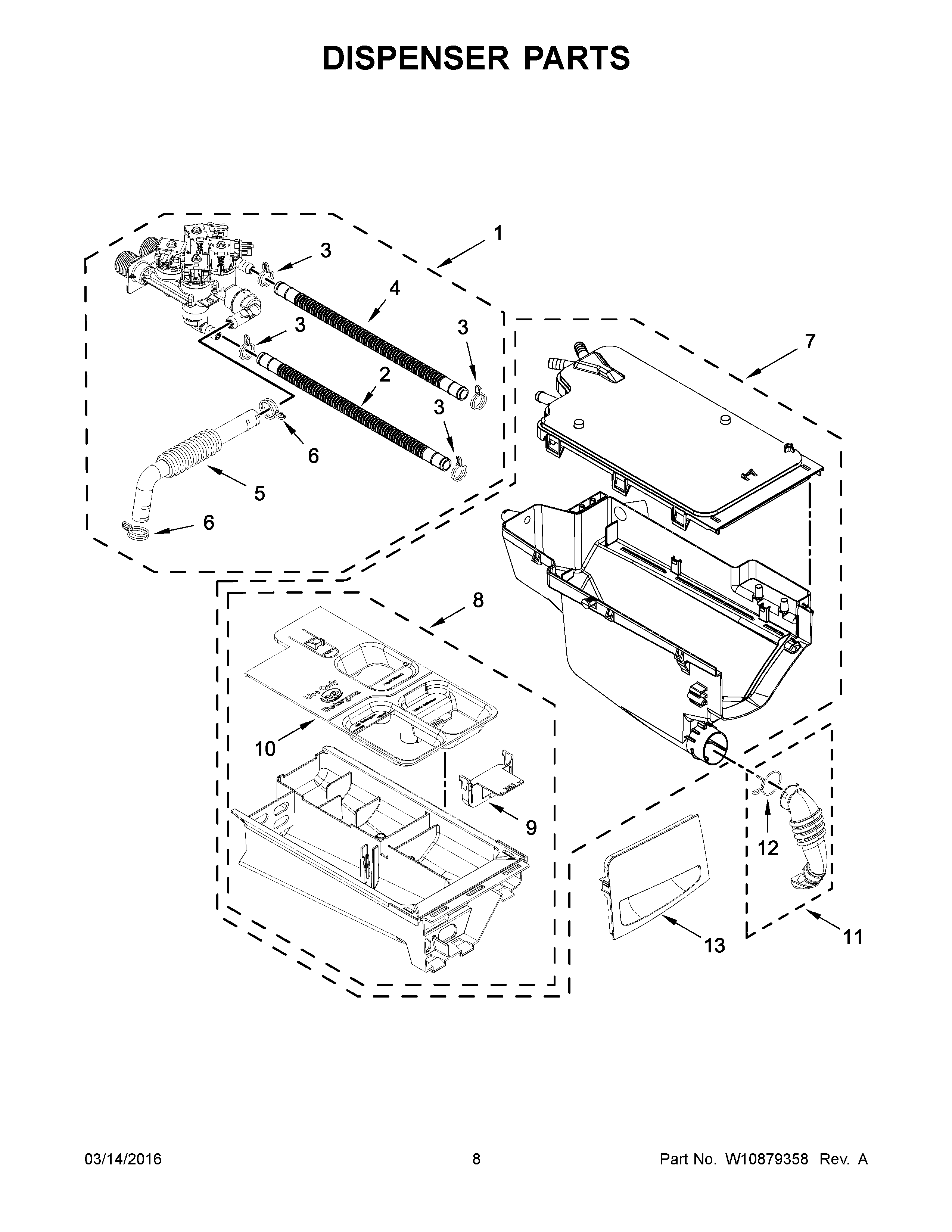

WFW8740DC1 05 – DISPENSER PARTS

Products

Position	Product
1	WPW10435242 Whirlpool Water Inlet Valve
2	WPW10577770 Whirlpool Hose
3	WP596669 Whirlpool Hose Clamp
4	WPW10577787 Whirlpool Hose Assembly
5	W10435238 Whirlpool Hose
7	W10575334 Whirlpool Washer Detergent Dispenser
8	WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
9	W11084830 Whirlpool Detergent Divider
10	WPW10365887 Whirlpool Dispenser Cover Housing
11	WPW10239966 Whirlpool Hose
12	W10239910 Whirlpool Clamp
13	W10774320 Whirlpool Dispenser Handle Assembly
13A	HANDLE, DRAWER (CHROME SHADOW)
