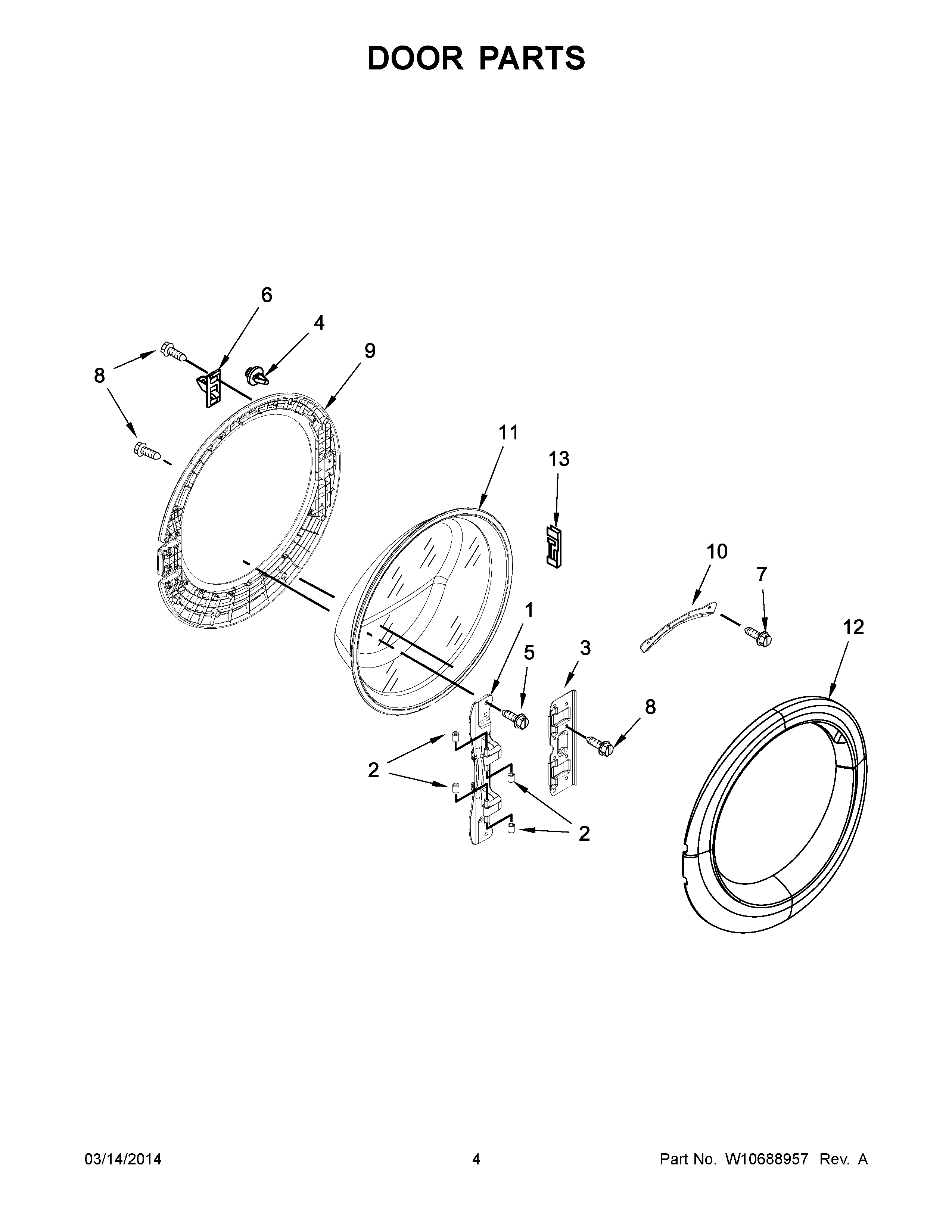

WFW8740DW0 03 – DOOR PARTS

WFW8740DW0 03 – DOOR PARTS

Written by

in

WFW8740DW0 03 – DOOR PARTS

Products

PositionProduct
1HINGE
2WPW10208398 Whirlpool Hinge Pin Cap
3WPW10208419 Whirlpool Plate
48572266 Whirlpool Bumper Assembly
5SCREW
6WPW10488048 Whirlpool Strike
7W11230114 Whirlpool Screw Assembly
8WP8534022 Whirlpool Screw
9WPW10208275 Whirlpool Inner Door Assembly
10W10295703 Whirlpool Clamp Assembly
11GLASS, DOOR
12DOOR, OUTER ASSEMBLY
13CLAMP, GLASS SUPPORT
