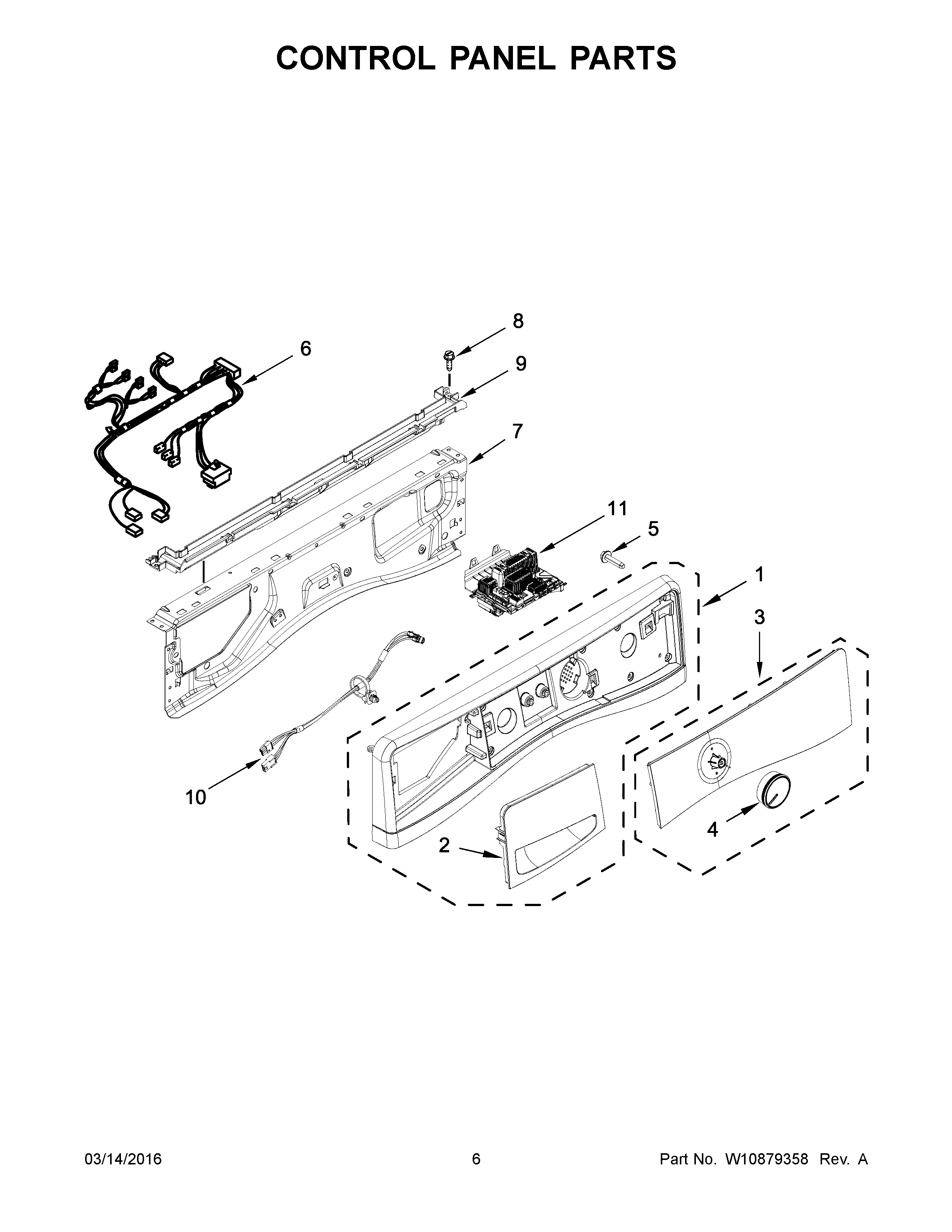

WFW8740DW1 04 – CONTROL PANEL PARTS
Written by
in
WFW8740DW1 04 – CONTROL PANEL PARTS
Products
Position
Product
1A
ASSEMBLY, CONSOLE (CHROME SHADOW)
1
ASSEMBLY, CONSOLE (WHITE)
2A
HANDLE, DRAWER (CHROME SHADOW)
2
W10774320 Whirlpool Dispenser Handle Assembly
3
W10750479 Whirlpool Control Panel
3A
ASSEMBLY, IML (CHROME SHADOW)
4A
WPW10631127 Whirlpool Knob
4
W10875909 Whirlpool Timer Knob
5
W10589828 Whirlpool Screw
6
W10685627 Whirlpool Wire Harness
7
W10208197 Whirlpool Bracket
8
WP489464 Whirlpool Refrigerator Screw
9
WPW10653575 Whirlpool Channel
10
WPW10442440 Whirlpool Wire Harness
11
W11201289-includeCORE Whirlpool W11201289 Washer Electronic Control Board + Core
←
