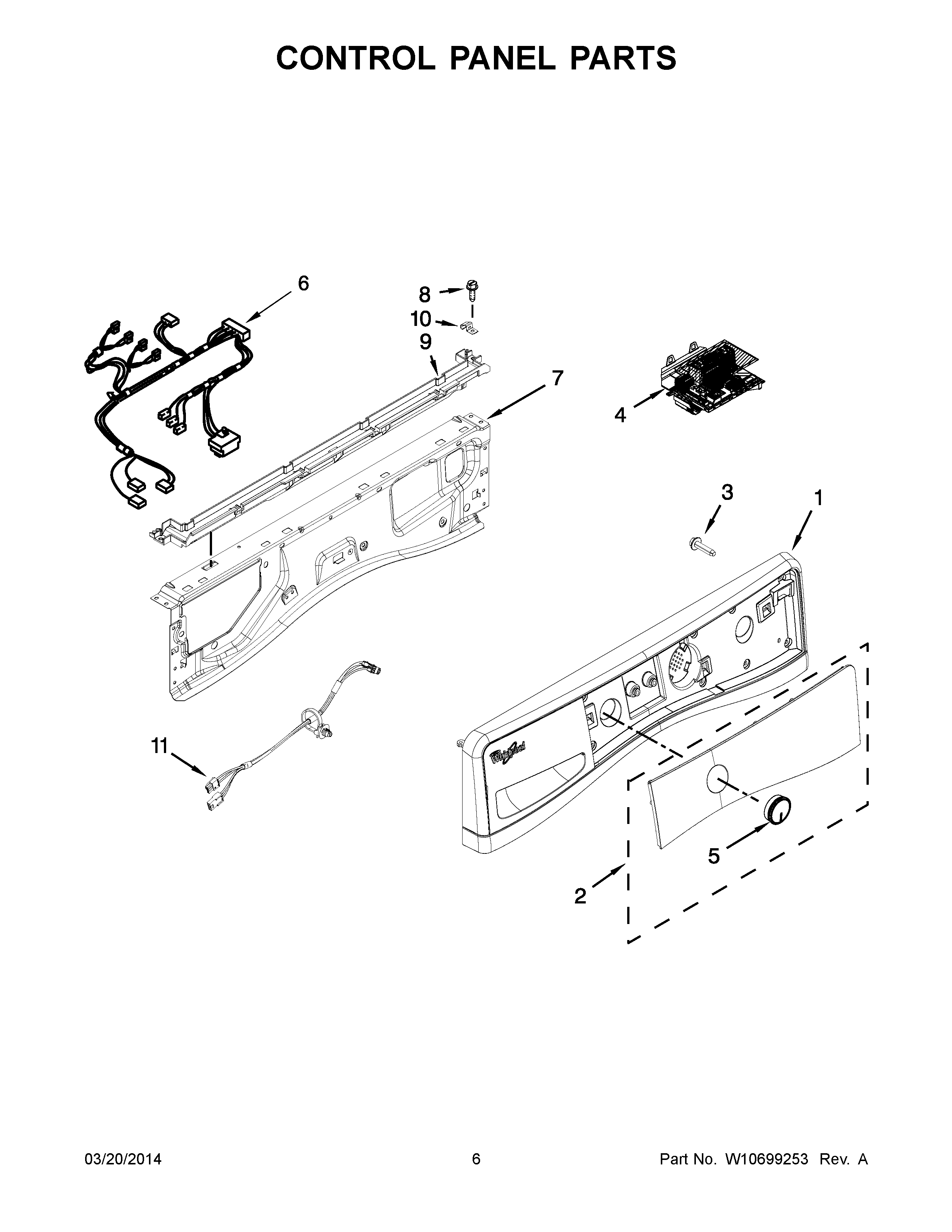

WFW87HEDW0 04 – CONTROL PANEL PARTS

Products

Position	Product
1	ASSEMBLY, CONSOLE (CHROME SHADOW)
1	ASSEMBLY, CONSOLE (WHITE)
2	WPW10750478 Whirlpool Control Panel
2	WPW10750477 Whirlpool Control Panel
3	W10589828 Whirlpool Screw
4	W11029153-includeCORE Whirlpool W11029153 Refrigerator Electronic Control Board with Core
5	WPW10631127 Whirlpool Knob
5	W10875909 Whirlpool Timer Knob
6	W10685627 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	WPW10442440 Whirlpool Wire Harness
