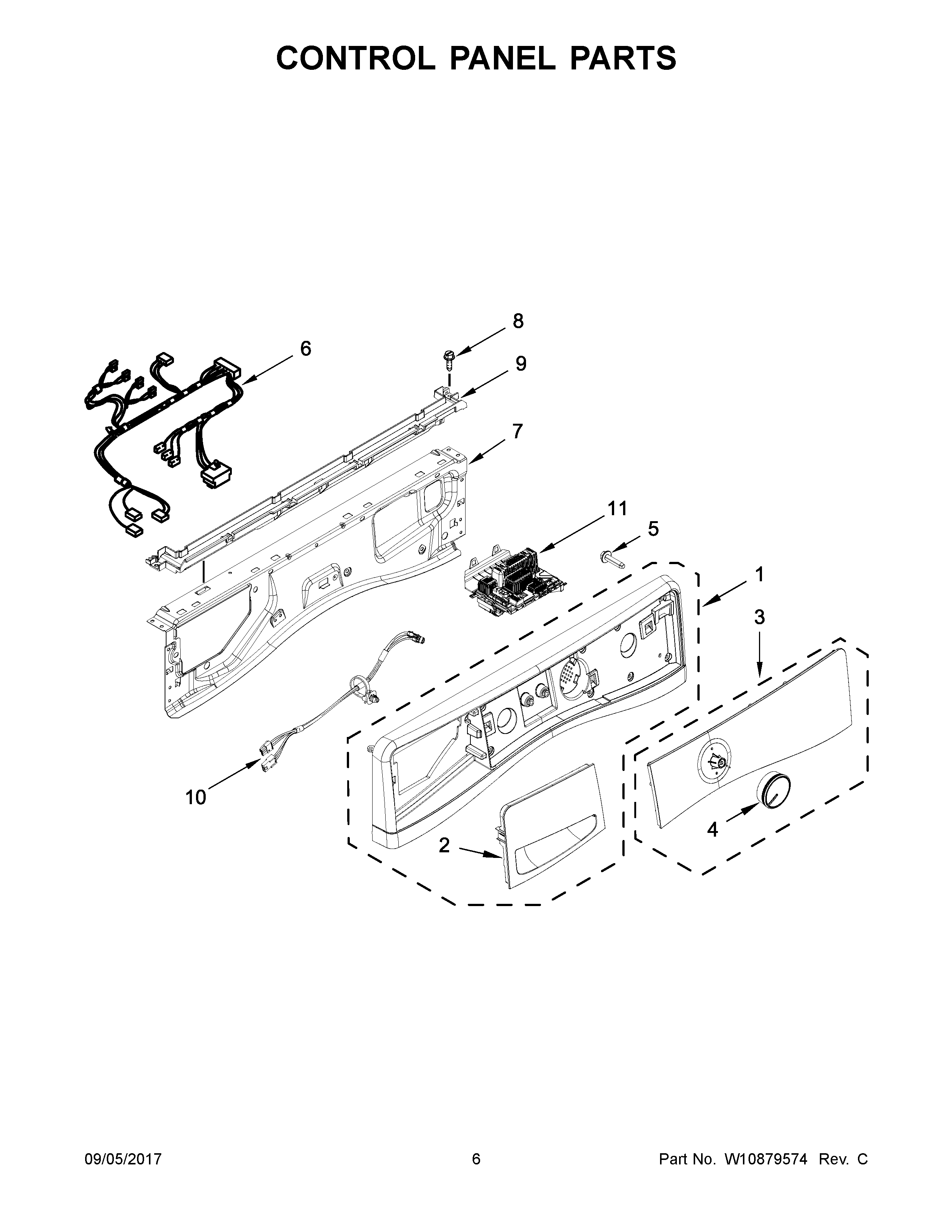

WFW87HEDW1 04 – CONTROL PANEL PARTS

WFW87HEDW1 04 – CONTROL PANEL PARTS

Written by

in

WFW87HEDW1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1AW10888105 Whirlpool Console
1W10889171 Whirlpool Console
2W10774320 Whirlpool Dispenser Handle Assembly
2AHANDLE, DRAWER (CHROME SHADOW)
3WPW10750477 Whirlpool Control Panel
3AWPW10750478 Whirlpool Control Panel
4W10875909 Whirlpool Timer Knob
4AWPW10631127 Whirlpool Knob
5W10589828 Whirlpool Screw
6W10685627 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9W11172160 Whirlpool Channel
10WPW10442440 Whirlpool Wire Harness
11W11096963-includeCORE Whirlpool W11096963 Refrigerator Electronic Control Board + Core
