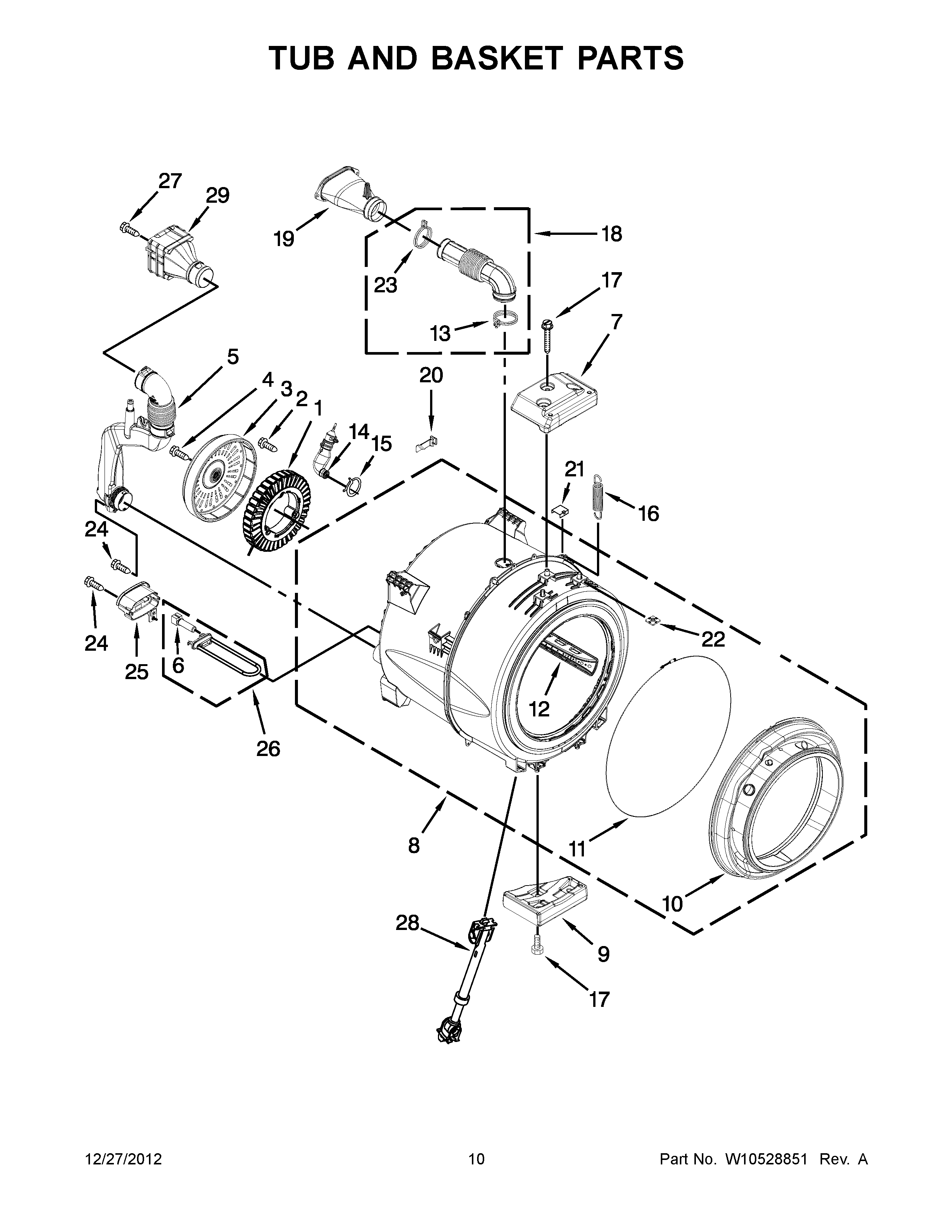

WFW88HEAC0 06 – TUB AND BASKET PARTS

Products

Position	Product
1	W10365754 Whirlpool Stator
2	WPW10253476 Whirlpool Screw
3	W10365755 Whirlpool Rotor
4	W11253212 Whirlpool Dryer Screw
5	PIPE, VENTILATION ASSEMBLY
6	WPW10467289 Whirlpool Sensor
7	W10253014 Whirlpool Counterweight
8	WPW10409997 Whirlpool Outer Tub Assembly
9	W10237535 Whirlpool Counterweight
10	W11106747 Whirlpool Washer Front Load Door Boot
11	W11218344 Whirlpool Boot Seal Retaining Ring
12	W10697830 Whirlpool Baffle
13	W10353599 Whirlpool Hose Clamp
14	WPW10260500 Whirlpool Trap Assembly
15	CLAMP, HOSE
16	W11266650 Whirlpool Spring
17	W10261496 Whirlpool Screw
18	WPW10568614 Whirlpool Hose
19	WPW10352818 Whirlpool Vent Pipe
20	W10316388 Whirlpool Clip Assembly
21	WP8540092 Whirlpool Clamp
22	WP8182512 Whirlpool Nut Assembly
23	W10273034 Whirlpool Clamp
24	W10306501 Whirlpool Screw
25	W10318155 Whirlpool Cover
26	WPW10426377 Whirlpool Heater Assembly
27	WP8540282 Whirlpool Screw
28	SHOCK-ABSR
29	W10467494 Whirlpool Housing
