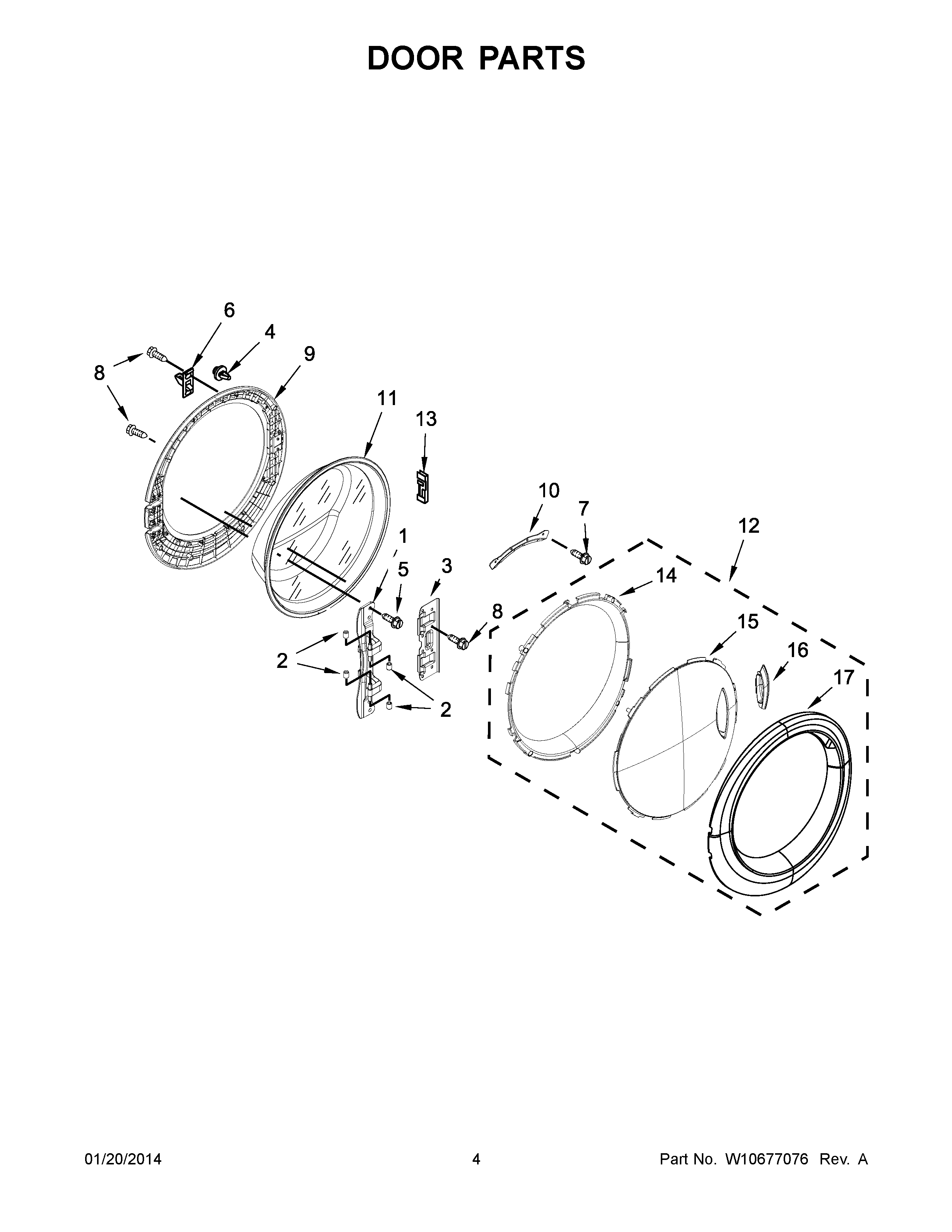

WFW88HEAC2 03 – DOOR PARTS

Products

Position	Product
1	HINGE
2	WPW10208398 Whirlpool Hinge Pin Cap
3	WPW10208419 Whirlpool Plate
4	8572266 Whirlpool Bumper Assembly
5	SCREW
6	WPW10488048 Whirlpool Strike
7	W11230114 Whirlpool Screw Assembly
8	WP8534022 Whirlpool Screw
9	WPW10208275 Whirlpool Inner Door Assembly
10	W10295703 Whirlpool Clamp Assembly
11	WPW10208263 Whirlpool Glass Door
12	DOOR, OUTER ASSEMBLY
13	CLAMP, GLASS SUPPORT
14	DOOR INTERMEDIATE
15	SCREEN, DOOR
16	W10208411 Whirlpool Handle
17	W11099174 Whirlpool Trim Ring
