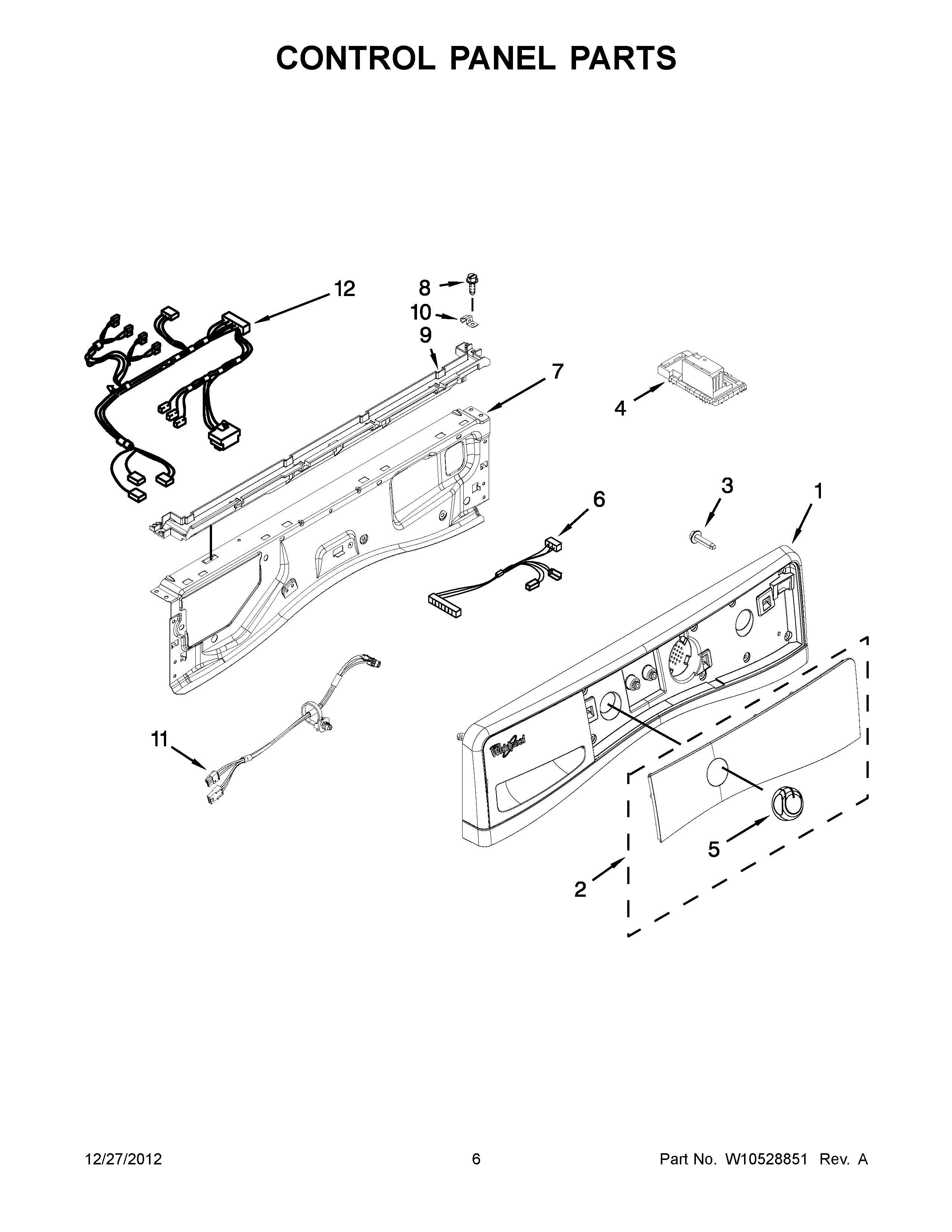

WFW88HEAW0 04 – CONTROL PANEL PARTS

Products

Position	Product
1A	ASSEMBLY, CONSOLE (CHROME SHADOW)
1	ASSEMBLY, CONSOLE (WHITE)
2A	IML ASSEMBL (CHROME SHADOW)
2	WPW10446421 Whirlpool Control Panel
3	W10853898 Whirlpool Screw
4	W10422888 Whirlpool Electronic Control Board
5	KNOB ASSEMBLY
6	WPW10486216 Whirlpool Wire Harness
7	W10208197 Whirlpool Bracket
8	WP489464 Whirlpool Refrigerator Screw
9	WPW10653575 Whirlpool Channel
10	W10317566 Whirlpool Clip
11	WPW10486571 Whirlpool Wire Harness
12	W10422436 Whirlpool Wire Harness
