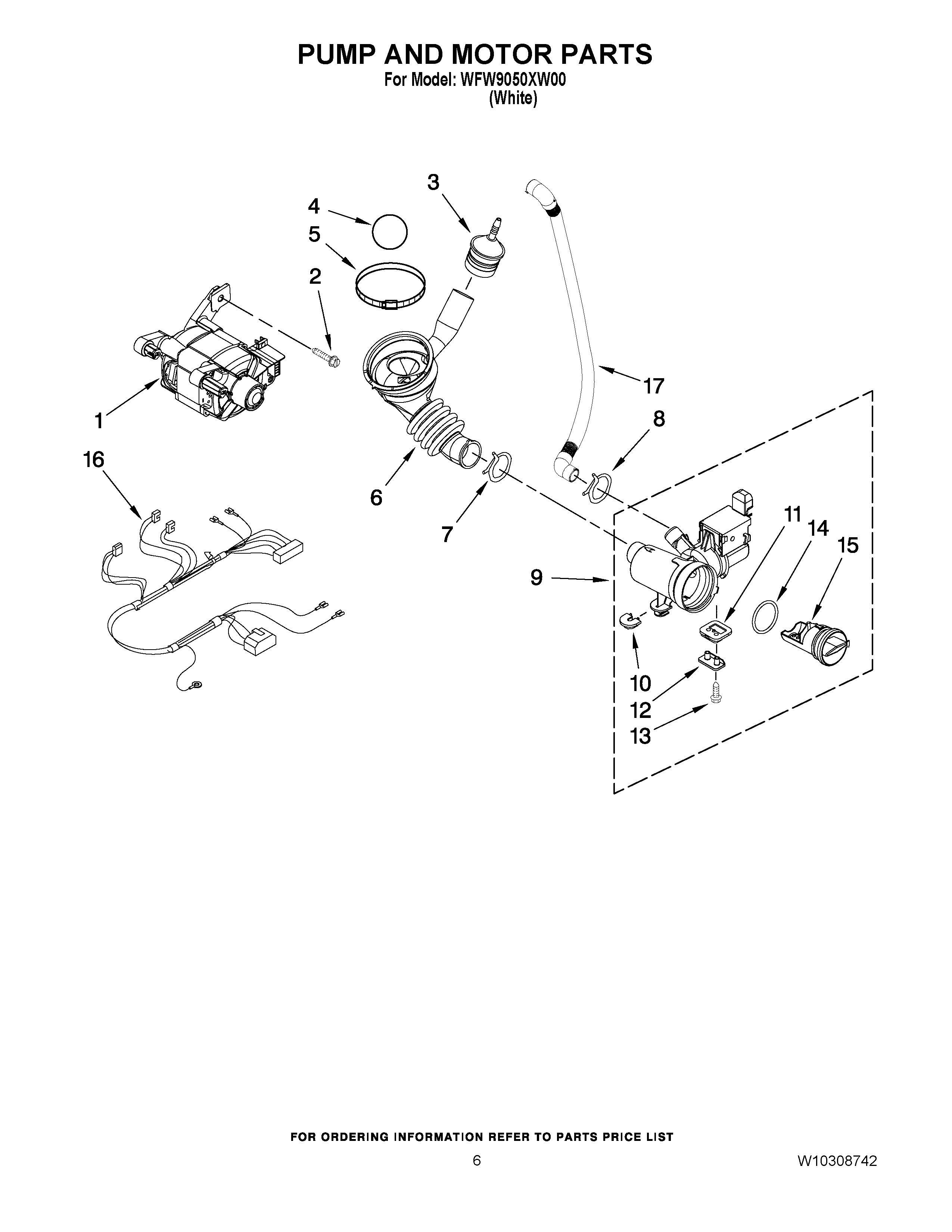

WFW9050XW00 05 – PUMP AND MOTOR PARTS

Products

Position	Product
1	WPW10171902 Whirlpool Motor Drive
2	8540134 Whirlpool Screw
3	WPW10405608 Whirlpool Trap
4	BALL
5	WP696392 Whirlpool Hose Clamp
6	W11366249 Whirlpool Washer Tub to Pump Hose
7	WP616099 Whirlpool Clamp
8	WP285655 Whirlpool Hose Clamp
10	W10034820 Whirlpool Grommet
11	W10034830 Whirlpool Grommet
12	8540033 Whirlpool Cap
13	8533964 Whirlpool Screw
14	WPW10730972 Whirlpool Washer Water Pump
16	WPW10201879 Whirlpool Wire Harness
17	WPW10272563 Whirlpool Hose
