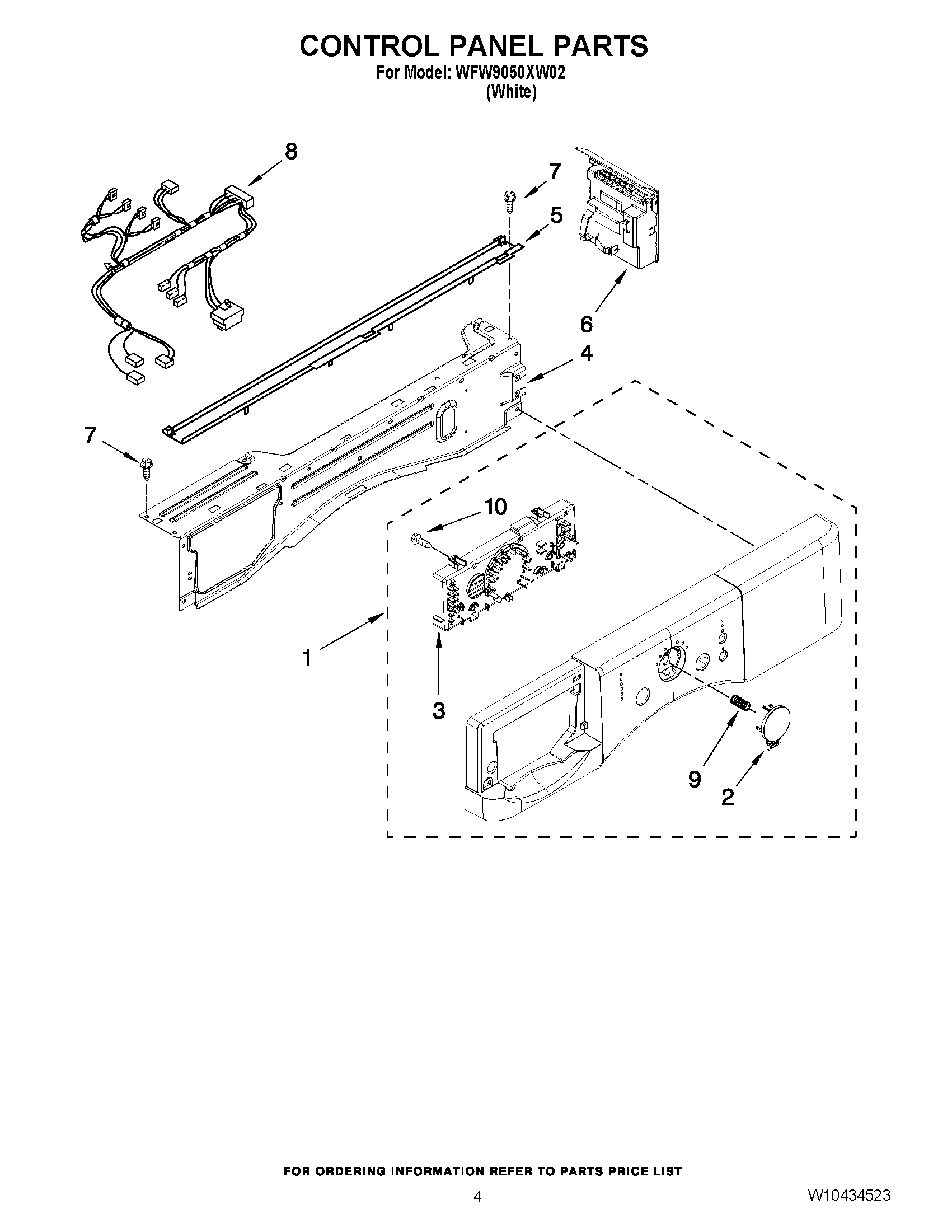

WFW9050XW02 03 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE
2	W10212800 Whirlpool Push Button Switch
3	WPW10212764-includeCORE Whirlpool WPW10212764 Refrigerator Electronic Control Board + Core
4	W10846488 Whirlpool Bracket
5	CHANNEL, WATER
6	WPW10525370-includeCORE Whirlpool WPW10525370 Gas Range Electronic Control Board
7	WP489442 Whirlpool Refrigerator Screw
8	WPW10269290 Whirlpool Wire Harness
9	W10215807 Whirlpool Spring
10	W10006580 Whirlpool Screw
