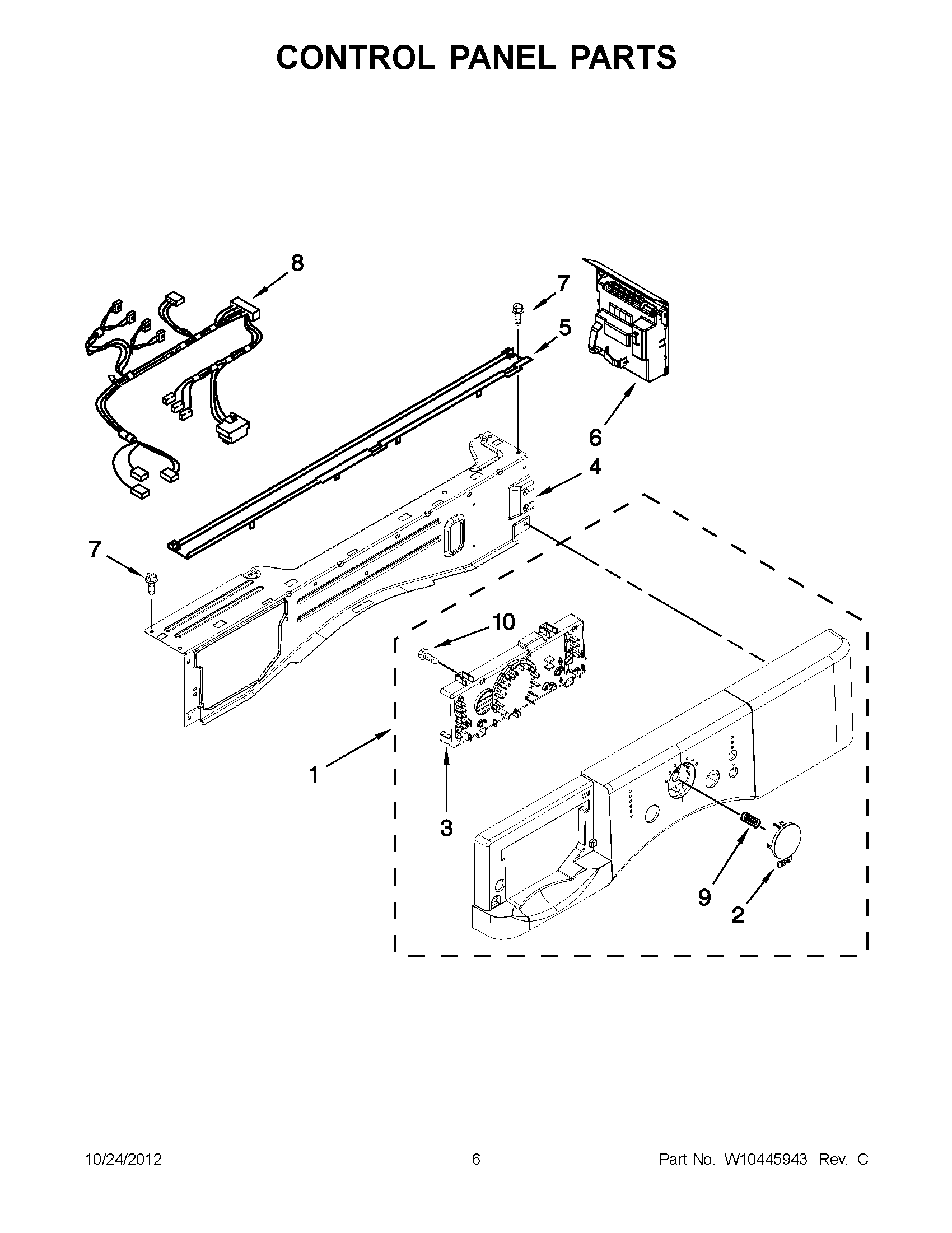

WFW9050XW03 03 – CONTROL PANEL PARTS

WFW9050XW03 03 – CONTROL PANEL PARTS

Written by

in

WFW9050XW03 03 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE
2W10212800 Whirlpool Push Button Switch
3WPW10212764-includeCORE Whirlpool WPW10212764 Refrigerator Electronic Control Board + Core
4W10846488 Whirlpool Bracket
5CHANNEL, WATER
6WPW10525370-includeCORE Whirlpool WPW10525370 Gas Range Electronic Control Board
7WP489442 Whirlpool Refrigerator Screw
8WPW10269290 Whirlpool Wire Harness
9W10215807 Whirlpool Spring
10W10006580 Whirlpool Screw
