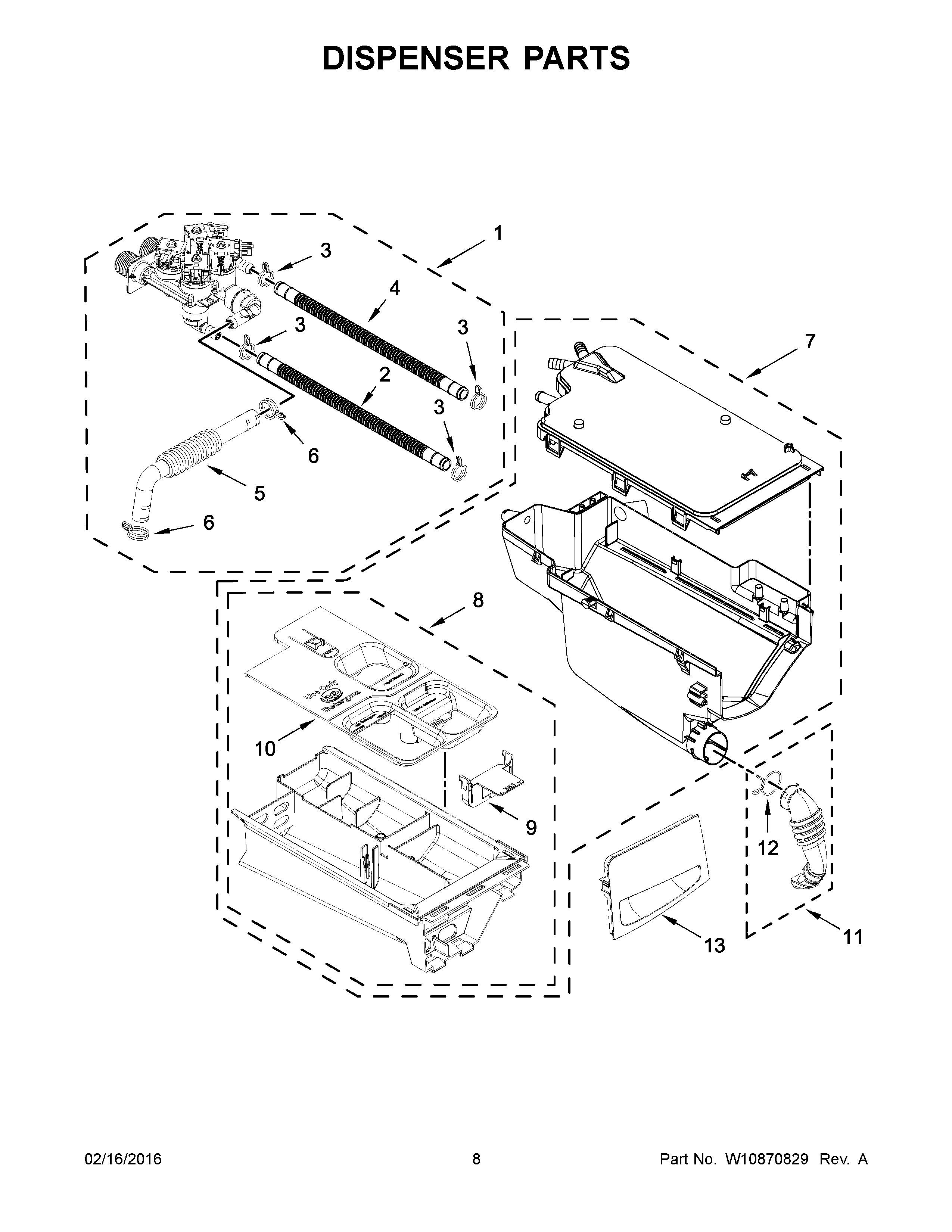

WFW90HEFC0 05 – DISPENSER PARTS

WFW90HEFC0 05 – DISPENSER PARTS

Written by

in

WFW90HEFC0 05 – DISPENSER PARTS

Products

PositionProduct
1WPW10435242 Whirlpool Water Inlet Valve
2WPW10577770 Whirlpool Hose
3WP596669 Whirlpool Hose Clamp
4WPW10577787 Whirlpool Hose Assembly
5W10435238 Whirlpool Hose
7W10575334 Whirlpool Washer Detergent Dispenser
8WPW10365885 Whirlpool Washer Dispenser Drawer Assembly
9W11084830 Whirlpool Detergent Divider
10WPW10365887 Whirlpool Dispenser Cover Housing
11WPW10239966 Whirlpool Hose
12W10239910 Whirlpool Clamp
13W11223724 Whirlpool Handle
13AHANDLE, DRAWER (CHROME SHADOW)
