WFW90HEFC1 04 – CONTROL PANEL PARTS

WFW90HEFC1 04 – CONTROL PANEL PARTS

Written by

in

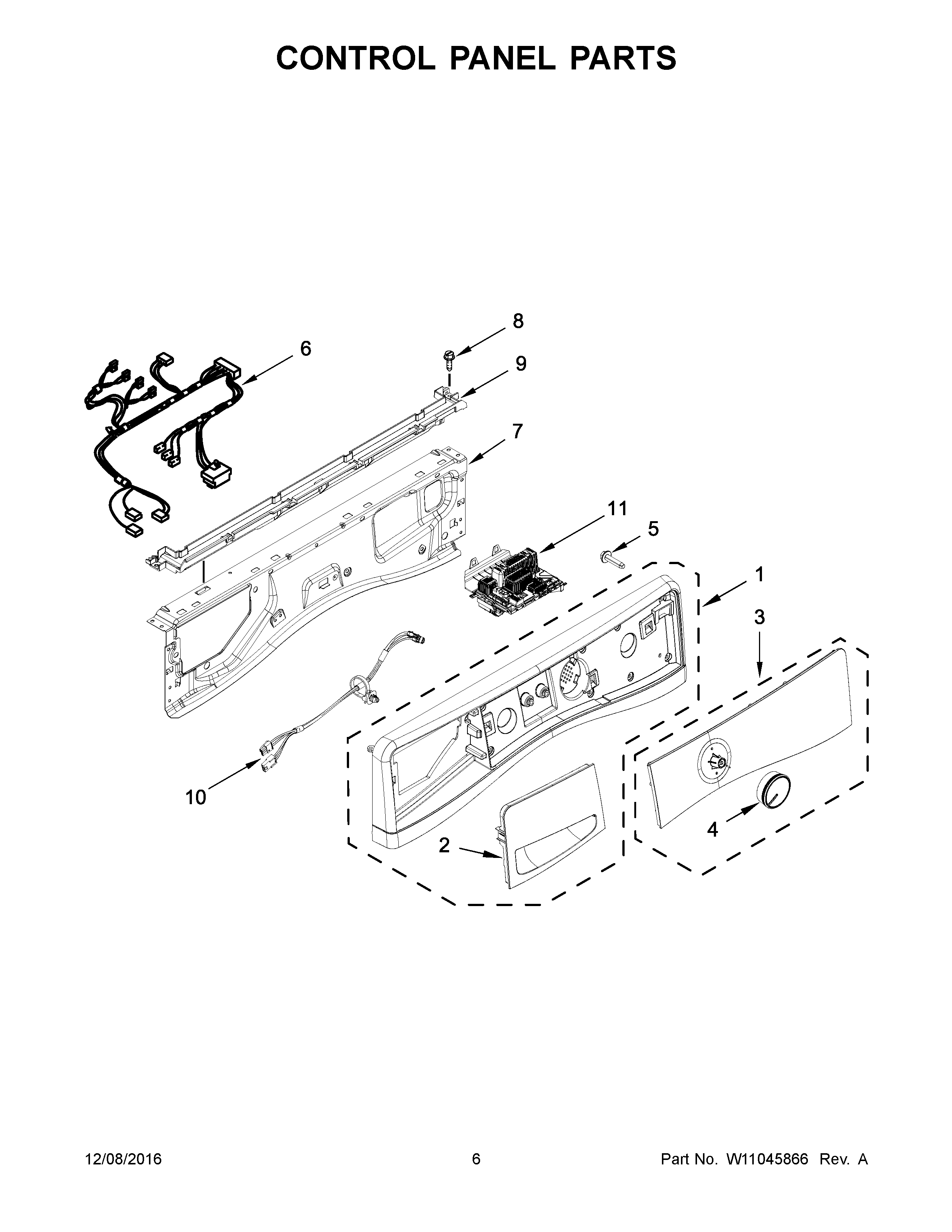

WFW90HEFC1 04 – CONTROL PANEL PARTS

Products

PositionProduct
1AASSEMBLY, CONSOLE (CHROME SHADOW)
1W11218392 Whirlpool Console
2W11223724 Whirlpool Handle
2BHANDLE, DRAWER (CHROME SHADOW)
3W11213904 Whirlpool Control Panel
3AW11213905 Whirlpool Control Panel
4W10875909 Whirlpool Timer Knob
5W10589828 Whirlpool Screw
6W11034761 Whirlpool Wire Harness
7W10208197 Whirlpool Bracket
8WP489464 Whirlpool Refrigerator Screw
9WPW10653575 Whirlpool Channel
10WPW10442440 Whirlpool Wire Harness
11W11201288-includeCORE Whirlpool W11201288 Washer Electronic Control Board + Core
