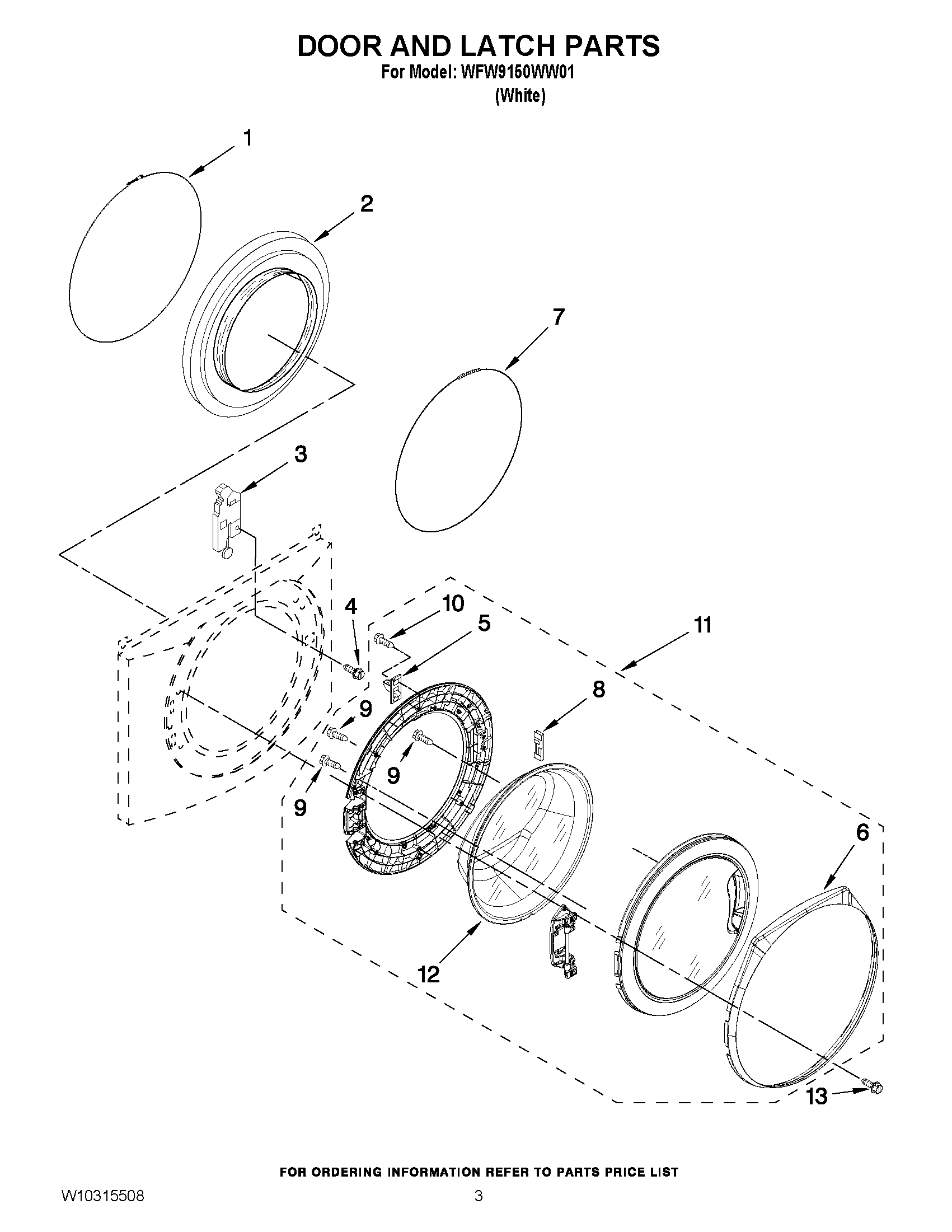

WFW9150WW01 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1WP8540108 Whirlpool Boot Spring Clamp
2WPW10381562 Whirlpool Front Load Washer Door Boot
3WPW10253483 Whirlpool Latch
4WP8540725 Whirlpool Screw Assembly
5WP8540221 Whirlpool Door Strike Assembly
6TRIM RING, OUTER DOOR (WHITE)
7W11032829 Whirlpool Clamp Assembly
8WP8540115 Whirlpool Clamp
9WP8540282 Whirlpool Screw
10W11230114 Whirlpool Screw Assembly
11DOOR ASSEMBLY
12WPW10388315 Whirlpool Glass Door
13WP489442 Whirlpool Refrigerator Screw
