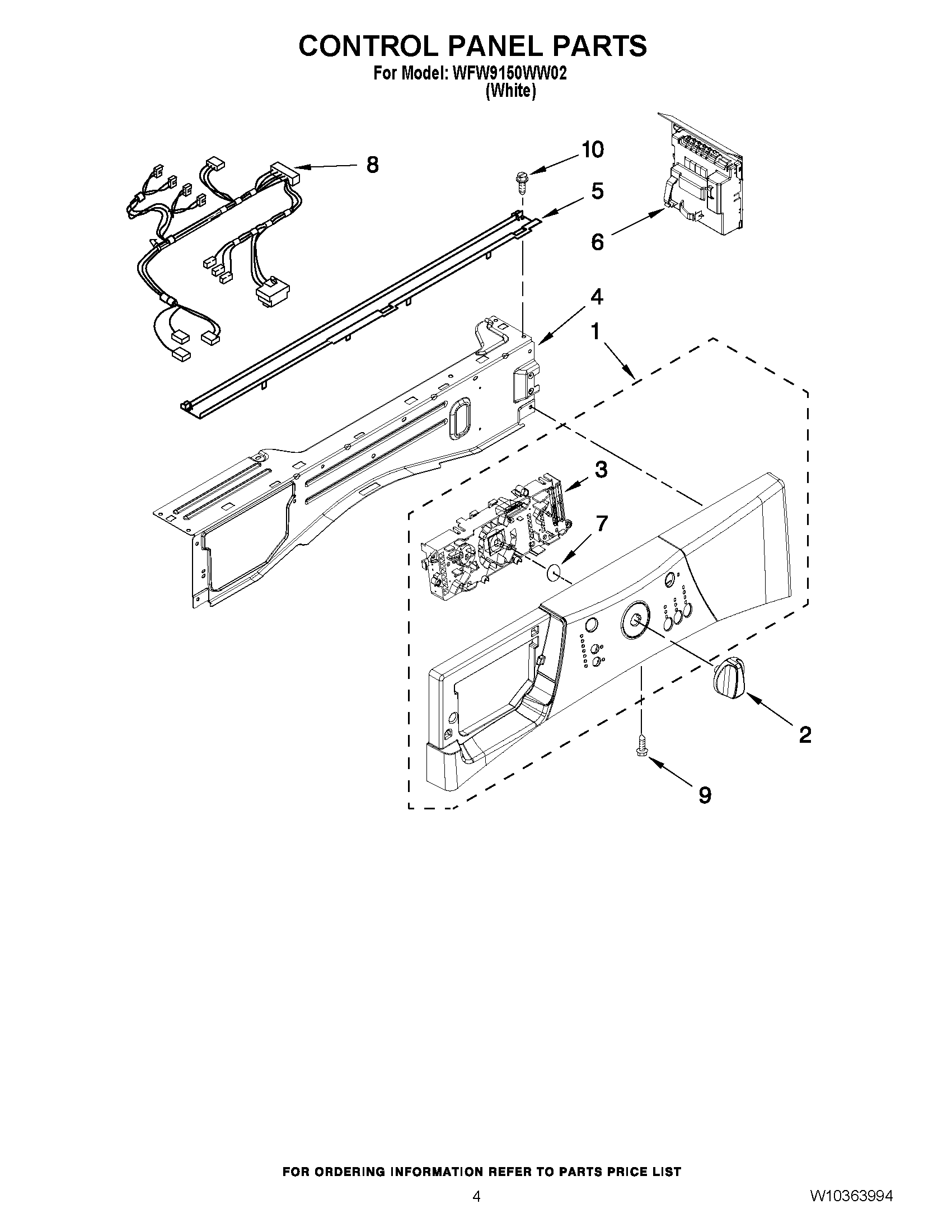

WFW9150WW02 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	CONSOLE
2	WPW10236098 Whirlpool Knob Assembly
3	USER INTERFACE
4	W10846488 Whirlpool Bracket
5	CHANNEL, WATER
6	WPW10525366-includeCORE Whirlpool WPW10525366 Washer Electronic Control Board + Core
7	SEAL, USER INTERFACE
8	WPW10323099 Whirlpool Wire Harness
9	WP8540282 Whirlpool Screw
10	WP489442 Whirlpool Refrigerator Screw
