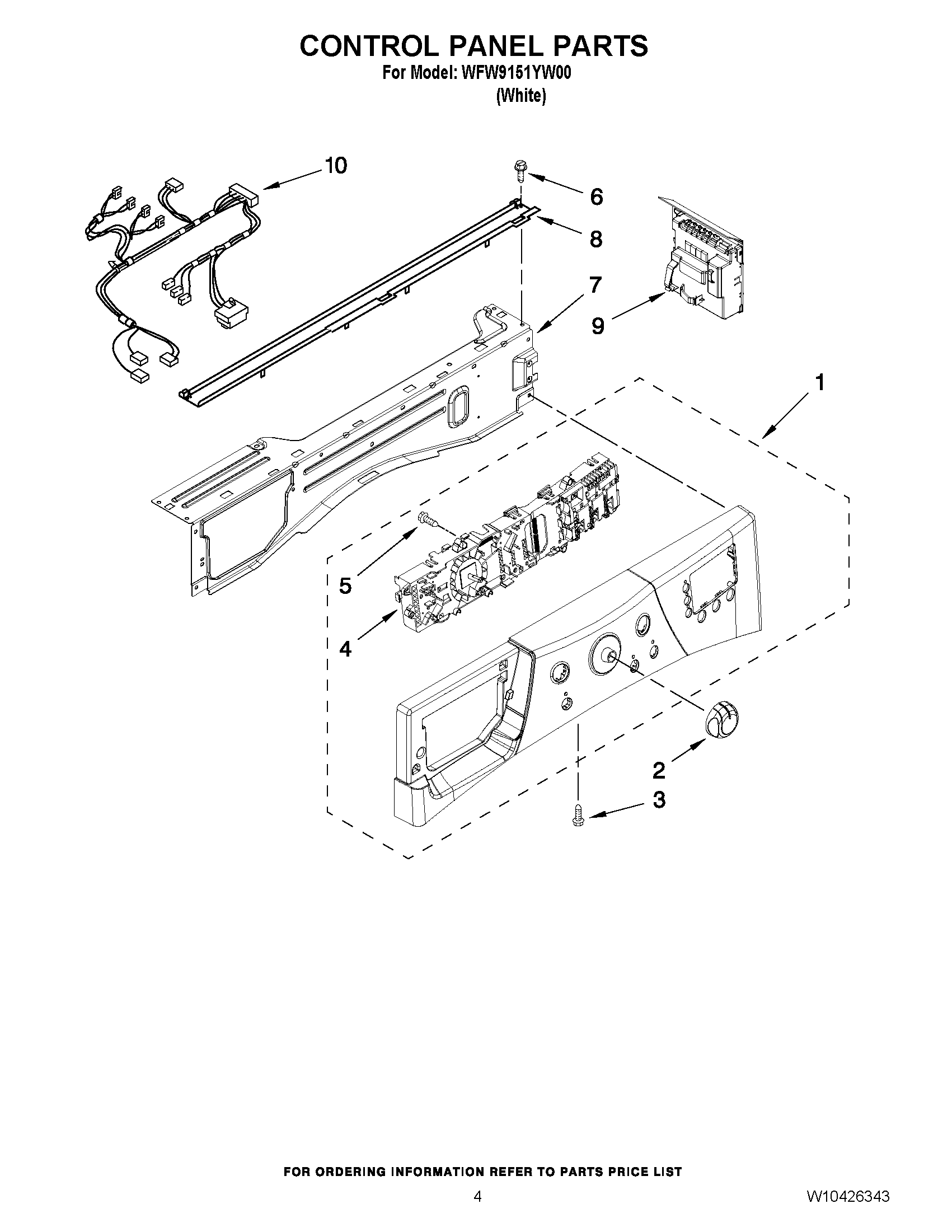

WFW9151YW00 03 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	CONSOLE
2	WPW10416463 Whirlpool Knob
3	WP8540282 Whirlpool Screw
4	USER INTERFACE
5	W10006580 Whirlpool Screw
6	WP489442 Whirlpool Refrigerator Screw
7	W10846488 Whirlpool Bracket
8	CHANNEL, WATER
9	WPW10491312-includeCORE Whirlpool WPW10491312 Refrigerator Electronic Control Board + Core
10	WPW10323099 Whirlpool Wire Harness
