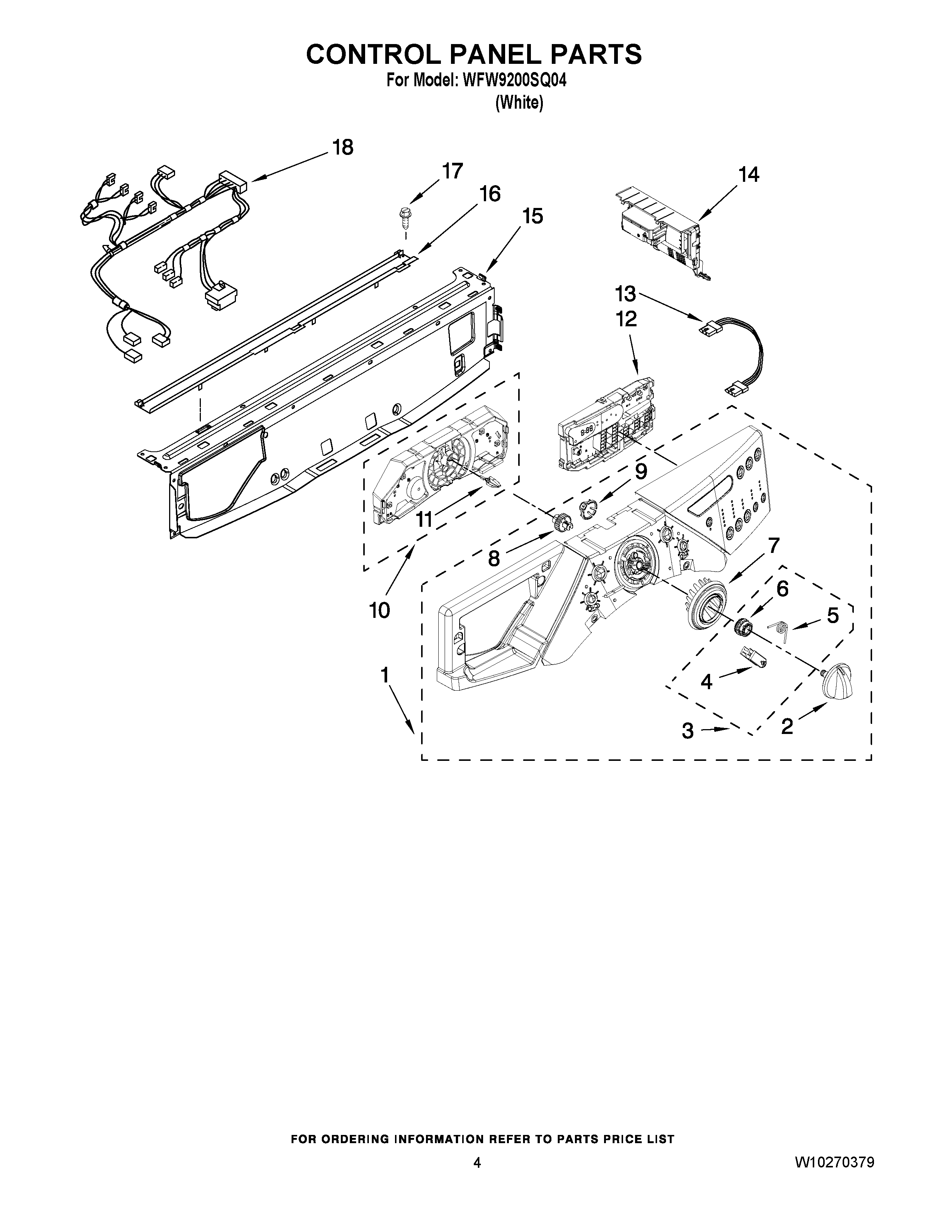

WFW9200SQ04 03 – CONTROL PANEL PARTSadmin2025-04-26T11:56:34+00:00WFW9200SQ04 03 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Panel, Control |
| 2 | Knob, Control (Includes Item 9) |
| 3 | Wheel, Detent Kit (Includes Item 9) |
| 4 | Wheel, Rast (2) (Service In Kit Only) |
| 5 | Spring, Knob (2) (Service In Kit Only) |
| 6 | Wheel, Detent (Service In Kit Only) |
| 7 | Ring, Knob Light (Includes Item 9) |
| 8 | W10131381 Whirlpool Wheel |
| 9 | Retainer, Snap |
| 10 | User Interface, Center |
| 11 | Adapter, Encoder Wheel |
| 12 | USER INTERFACE, RIGHT |
| 13 | 8183254 Whirlpool Wire Harness |
| 14 | MICROCOMPUTER, MACHINE CONTROL |
| 15 | W10059240 Whirlpool Bracket Assembly |
| 16 | WP8183204 Whirlpool Diverter |
| 17 | WP488729 Whirlpool Refrigerator Door Screw |
| 18 | HARNESS, WIRING (UPPER MAIN) |
