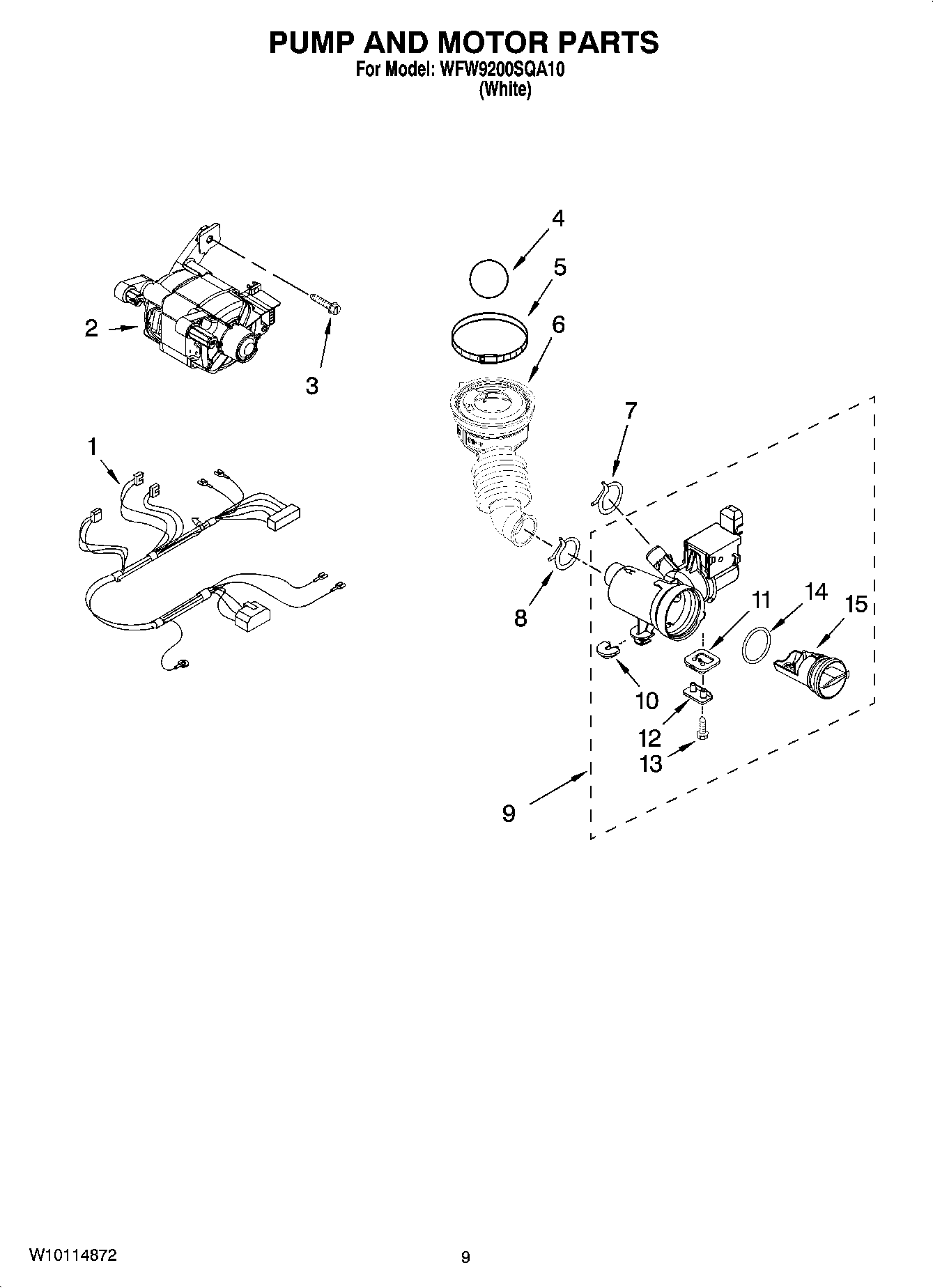

WFW9200SQA10 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

WFW9200SQA10 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

WFW9200SQA10 06 – PUMP AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
ACCESSORY PARTS
285863 Whirlpool Drain Hose Extension 4'
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
1W10116561 Whirlpool Wire Harness
2WPW10140583 Whirlpool Drive Motor
38540134 Whirlpool Screw
4W10121657 Whirlpool Ball
5WP696392 Whirlpool Hose Clamp
6WPW10467168 Whirlpool Hose Assembly
7WP356138 Whirlpool Hose Clamp
8WP616099 Whirlpool Clamp
10W10034820 Whirlpool Grommet
11W10034830 Whirlpool Grommet
128540033 Whirlpool Cap
138533964 Whirlpool Screw
14WPW10730972 Whirlpool Washer Water Pump
