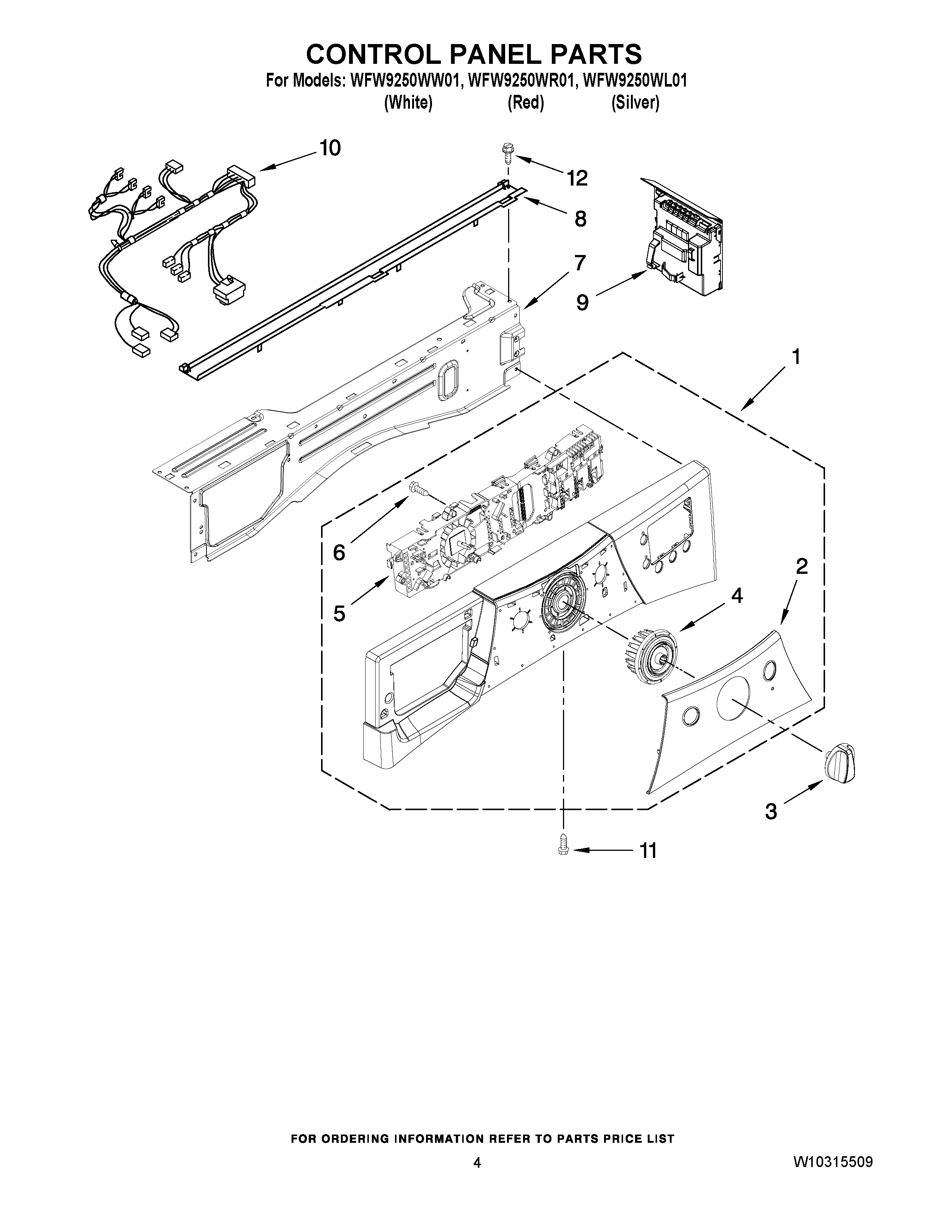

WFW9250WR01 03 – CONTROL PANEL PARTS

Products

Position	Product
1	WPW10253387 Whirlpool Console
1	CONSOLE (WHITE)
1	WPW10325314 Whirlpool Console
2	COVER, CENTER (SILVER)
2	COVER, CENTER (WHITE)
2	COVER, CENTER (RED)
3	WPW10247262 Whirlpool Knob
3	WPW10215781 Whirlpool Knob
4	W10237301 Whirlpool Ring
5	USER INTERFACE
6	W10006580 Whirlpool Screw
7	W10846488 Whirlpool Bracket
8	CHANNEL, WATER
9	WPW10629627 Whirlpool Electronic Control Board + Core
10	W10298263 Whirlpool Wire Harness
11	WP8540282 Whirlpool Screw
12	WP489442 Whirlpool Refrigerator Screw
