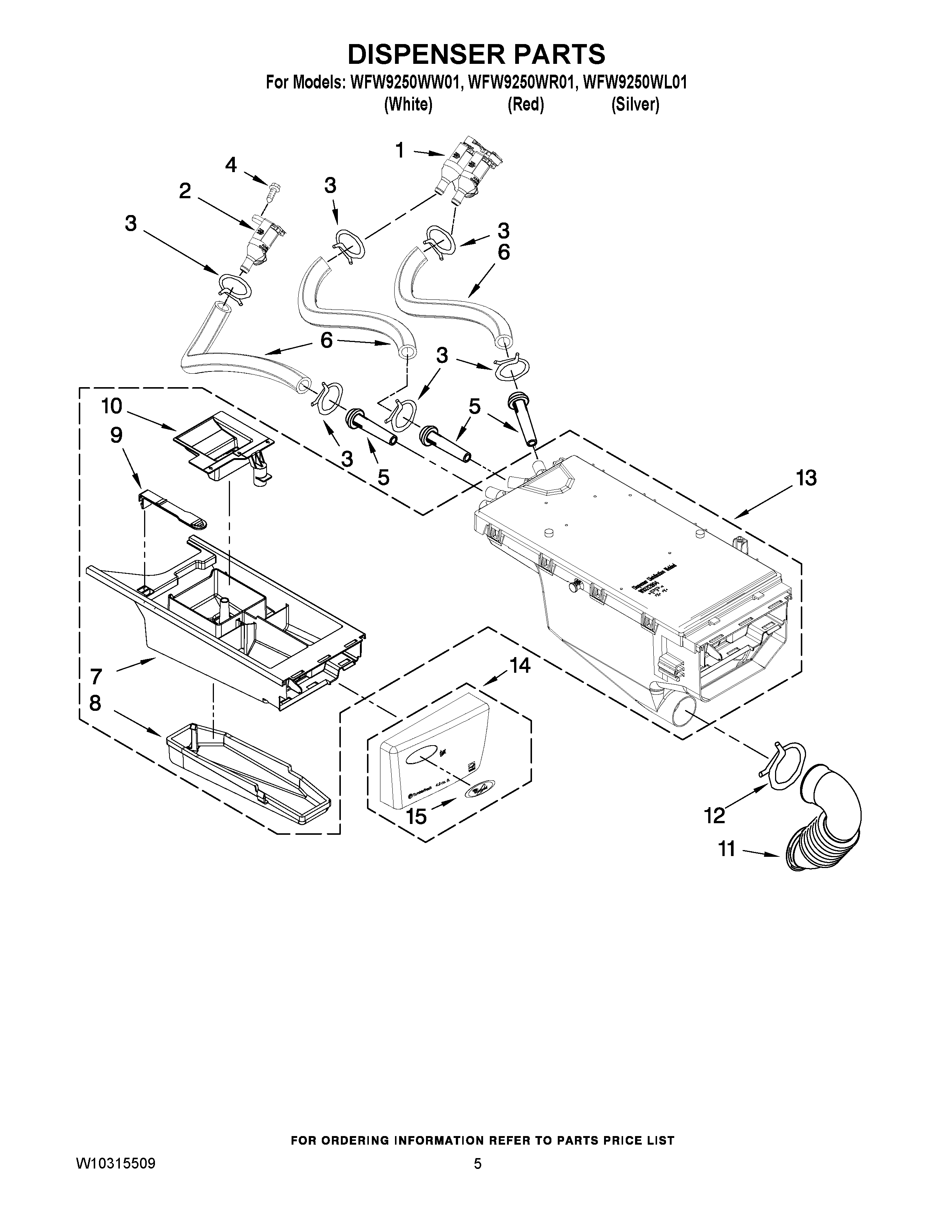

WFW9250WR01 04 – DISPENSER PARTS

WFW9250WR01 04 – DISPENSER PARTS

Written by

in

WFW9250WR01 04 – DISPENSER PARTS

Products

PositionProduct
1WPW10212596 Whirlpool Washer Inlet Valve
2WPW10212598 Whirlpool Valve
3WP596669 Whirlpool Hose Clamp
4W11230114 Whirlpool Screw Assembly
5WP8183181 Whirlpool Nozzle
6W10803052 Whirlpool Hose
7WP8540402 Whirlpool Washer Detergent Dispenser Drawer Assembly
8WP8540399 Whirlpool Cover Assembly
9WP8181721 Whirlpool Retainer
10WP8540429 Whirlpool Dispenser Assembly
11W11366227 Whirlpool Washer Dispenser Hose
12W11622908 Whirlpool Dishwasher Clamp
13WPW10399327 Whirlpool Dispenser Assembly
14HANDLE, DRAWER (WHITE)
14HANDLE, DRAWER (SILVER)
14HANDLE, DRAWER (RED)
15Medallion
