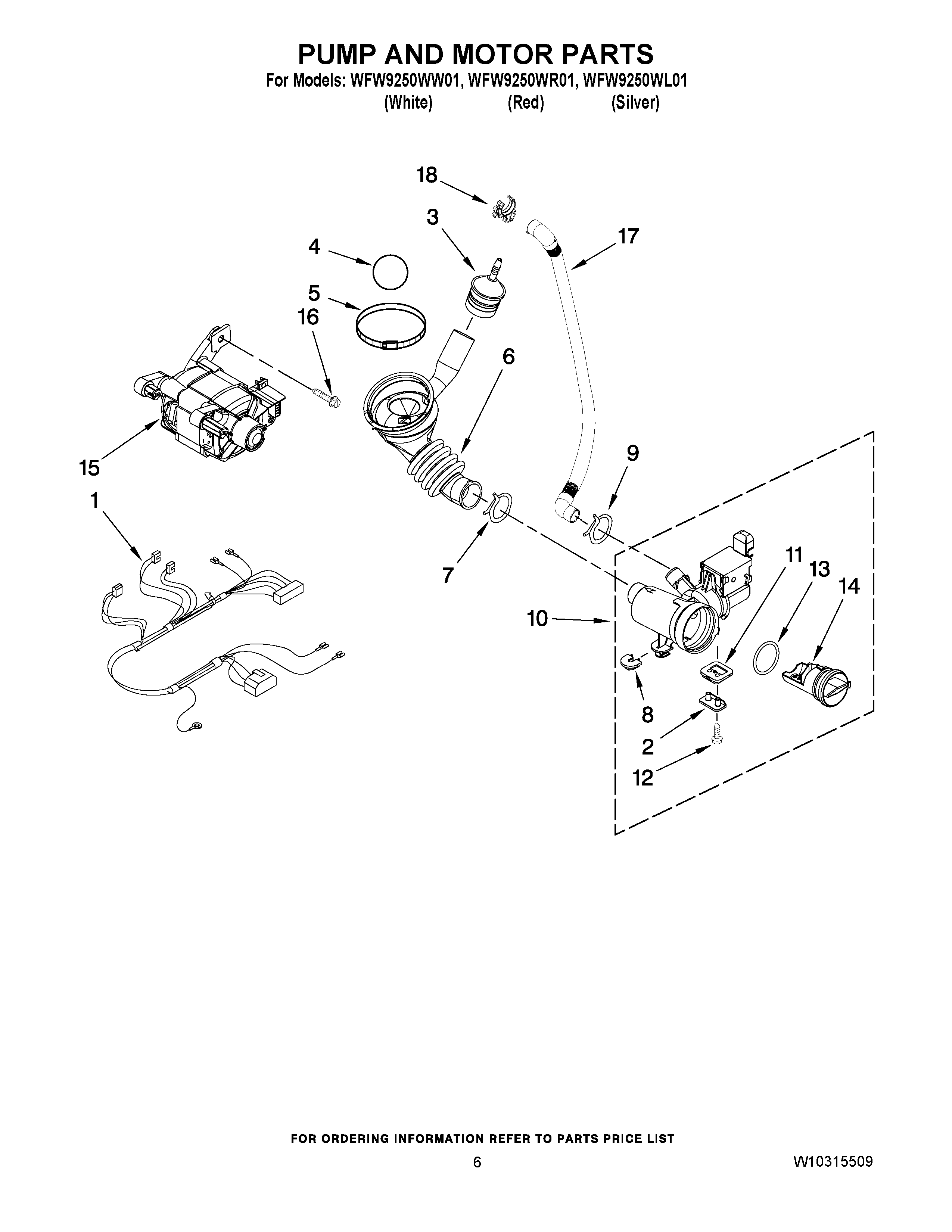

WFW9250WR01 05 – PUMP AND MOTOR PARTS

WFW9250WR01 05 – PUMP AND MOTOR PARTS

Written by

in

WFW9250WR01 05 – PUMP AND MOTOR PARTS

Products

PositionProduct
1WPW10201879 Whirlpool Wire Harness
28540033 Whirlpool Cap
3WPW10405608 Whirlpool Trap
4BALL
5WP696392 Whirlpool Hose Clamp
6W11366249 Whirlpool Washer Tub to Pump Hose
7WP616099 Whirlpool Clamp
8W10034820 Whirlpool Grommet
9WP285655 Whirlpool Hose Clamp
11W10034830 Whirlpool Grommet
128533964 Whirlpool Screw
13WPW10730972 Whirlpool Washer Water Pump
15WPW10171902 Whirlpool Motor Drive
168540134 Whirlpool Screw
17WPW10272563 Whirlpool Hose
188182209 Whirlpool Clip
