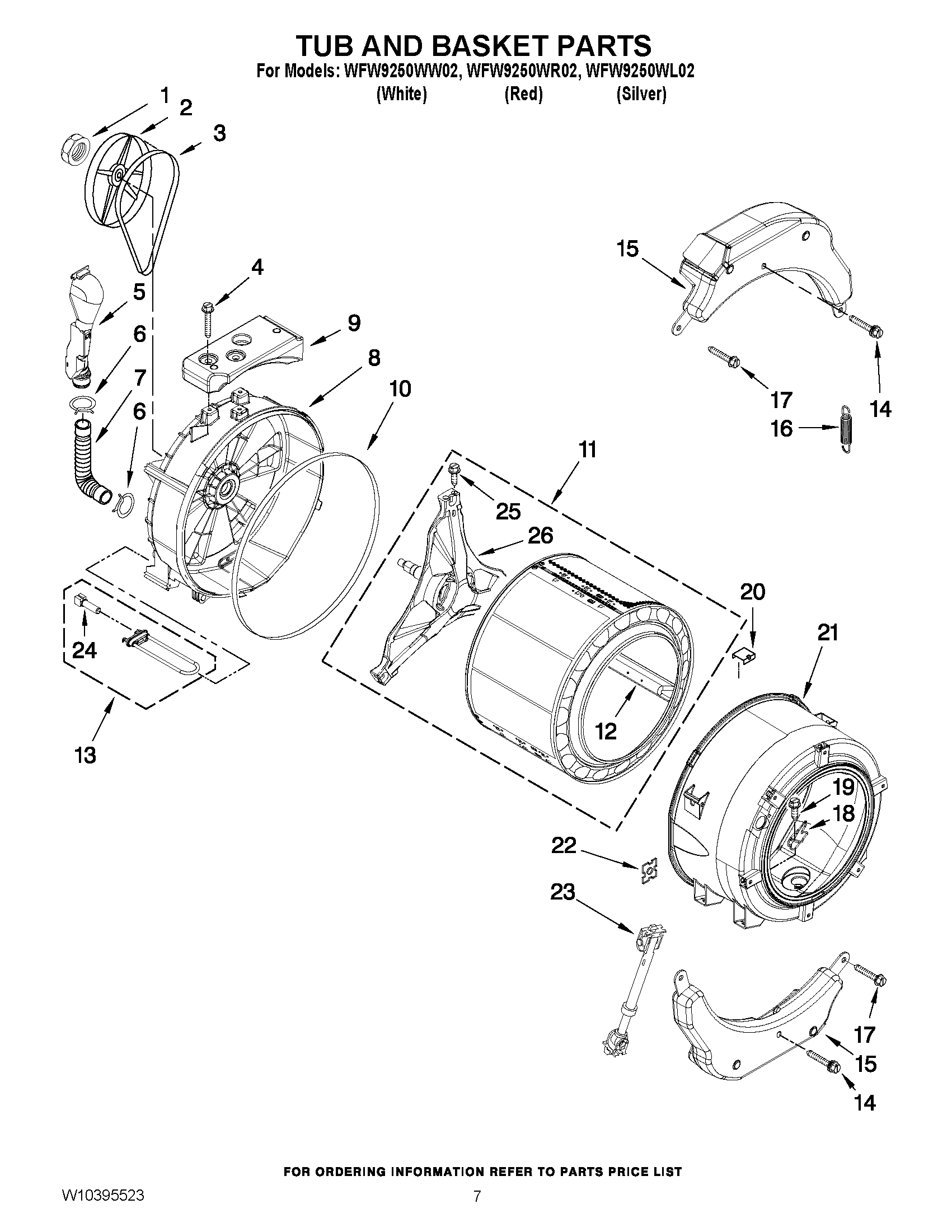

WFW9250WR02 06 – TUB AND BASKET PARTS

Products

Position	Product
1	WPW10283361 Whirlpool Nut
2	WP8540088C Whirlpool Pulley
3	WP8540101 Whirlpool Washer Drive Belt
4	W11028021 Whirlpool Screw
5	W10142720 Whirlpool Vent Pipe
6	8540010 Whirlpool Clamp
7	W11398765 Whirlpool Hose
8	W11239041 Whirlpool Outer Tub
9	WPW10200747 Whirlpool Counterweight
10	WPW10111158 Whirlpool Gasket Assembly
11	WPW10202459 Whirlpool Basket
12	WP8540360 Whirlpool Baffle
13	WPW10426377 Whirlpool Heater Assembly
14	WPW10259288 Whirlpool Screw
15	WPW10223198 Whirlpool Counterweight
16	280159 Whirlpool Spring Assembly
17	W11685857 Whirlpool Screw Assembly
18	Bracket, Heating Element
19	W11230114 Whirlpool Screw Assembly
20	WP8540092 Whirlpool Clamp
21	W10305749 Whirlpool Outer Tub
22	WP8182512 Whirlpool Nut Assembly
23	W10822553 Whirlpool Washer Shock Absorber
24	WPW10467289 Whirlpool Sensor
25	WP8540382 Whirlpool Screw
26	CROSSPIECE ASSEMBLY
