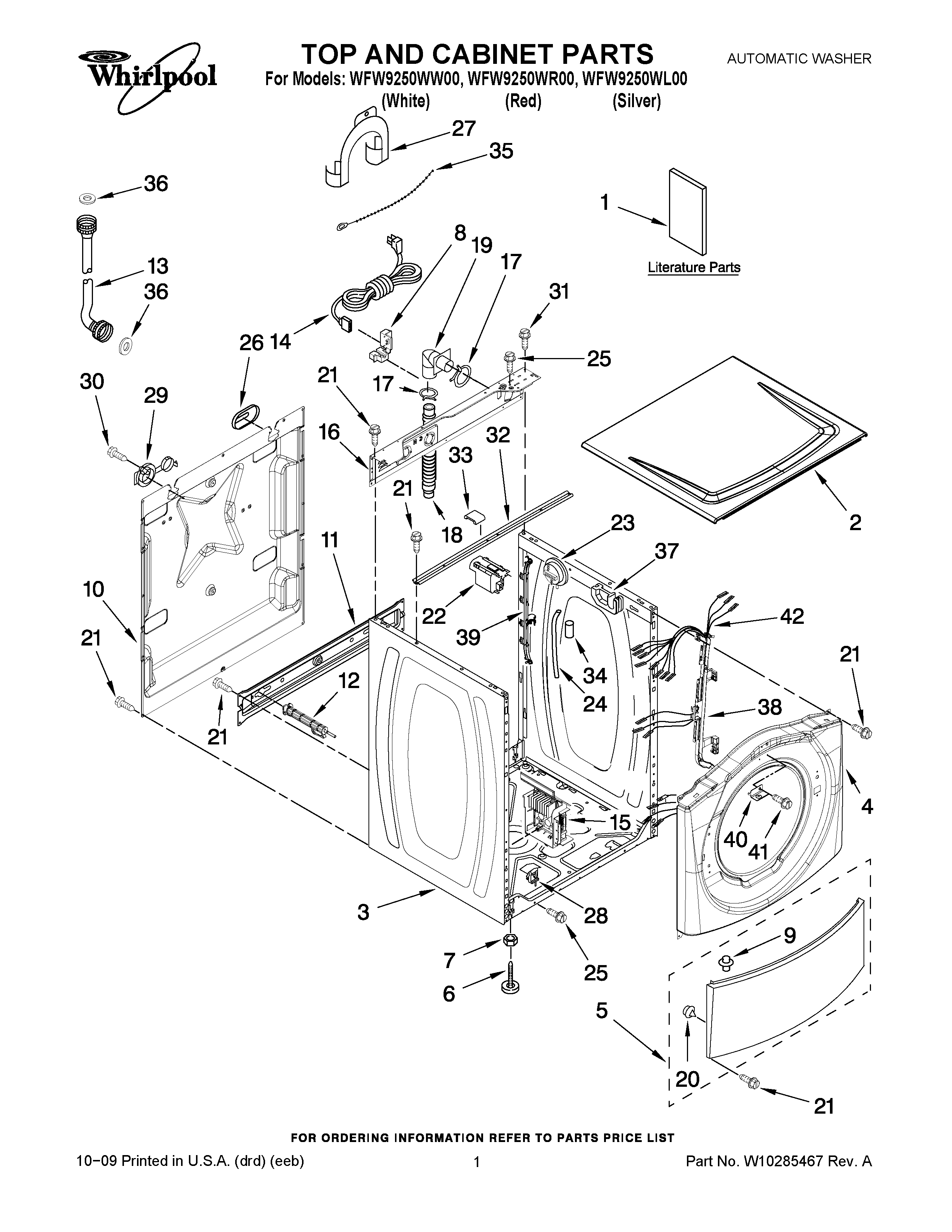

WFW9250WW00 01 – TOP AND CABINET PARTS

Products

Position	Product
1	ENERGY GUIDE
1	TECH SHEET
1	USE & CARE GUIDE
2	WPW10303994 Whirlpool Top
2	WPW10303996 Whirlpool Top
2	TOP (SILVER)
3	CABINET (RED)
3	W10410294 Whirlpool Cabinet
3	WPW10410323 Whirlpool Cabinet
4	PANEL, FRONT (RED)
4	PANEL, FRONT (SILVER)
4	PANEL, FRONT
5	W10254153 Whirlpool Panel
5	WP8540664 Whirlpool Control Panel
5	TOE PANEL (RED)
6	W10862938 Whirlpool Leveling Feet
7	WP3359452 Whirlpool Nut
8	8182635 Whirlpool Strain Relief
9	8518891 Whirlpool Rivet
10	WPW10258341 Whirlpool Panel
11	W10189657 Whirlpool Brace
12	W10763471 Whirlpool Bolt
13	WP89503 Whirlpool Washer Fill Hose
13	FILL HOSE 5' W/WASHER
14	CORD, POWER
15	WPW10384843 Whirlpool Electronic Control Board + Core
16	W10244560 Whirlpool Brace
17	WP356138 Whirlpool Hose Clamp
18	WP8181737 Whirlpool Hose
19	CONNECTOR
20	238614 Whirlpool Bumper Hinge
21	WP489442 Whirlpool Refrigerator Screw
22	WPW10367632 Whirlpool Filter
23	Switch, Pressure
24	HOSE
25	8540479 Whirlpool Screw
26	WP8540268 Whirlpool Cover Assembly
27	WPW10280024 Whirlpool Retainer
28	WPW10085220 Whirlpool Switch
29	W11116978 Whirlpool Grommet
30	8182201 Whirlpool Screw
31	8540329 Whirlpool Screw
32	WP8540720 Whirlpool Brace Assembly
33	WP8283273 Whirlpool Pad
34	SLEEVE
35	WPW10339879 Whirlpool Wire Tie
36	WP16123 Whirlpool Washer
37	8540644 Whirlpool Bracket
38	W10200785 Whirlpool Retainer
39	W10168547 Whirlpool Retainer
40	BRACKET, CONSOLE RETAINER
41	WP98006631 Whirlpool Screw
42	HARNESS, WIRING (LOWER MAIN) (INCLUDES ITEM 38)
