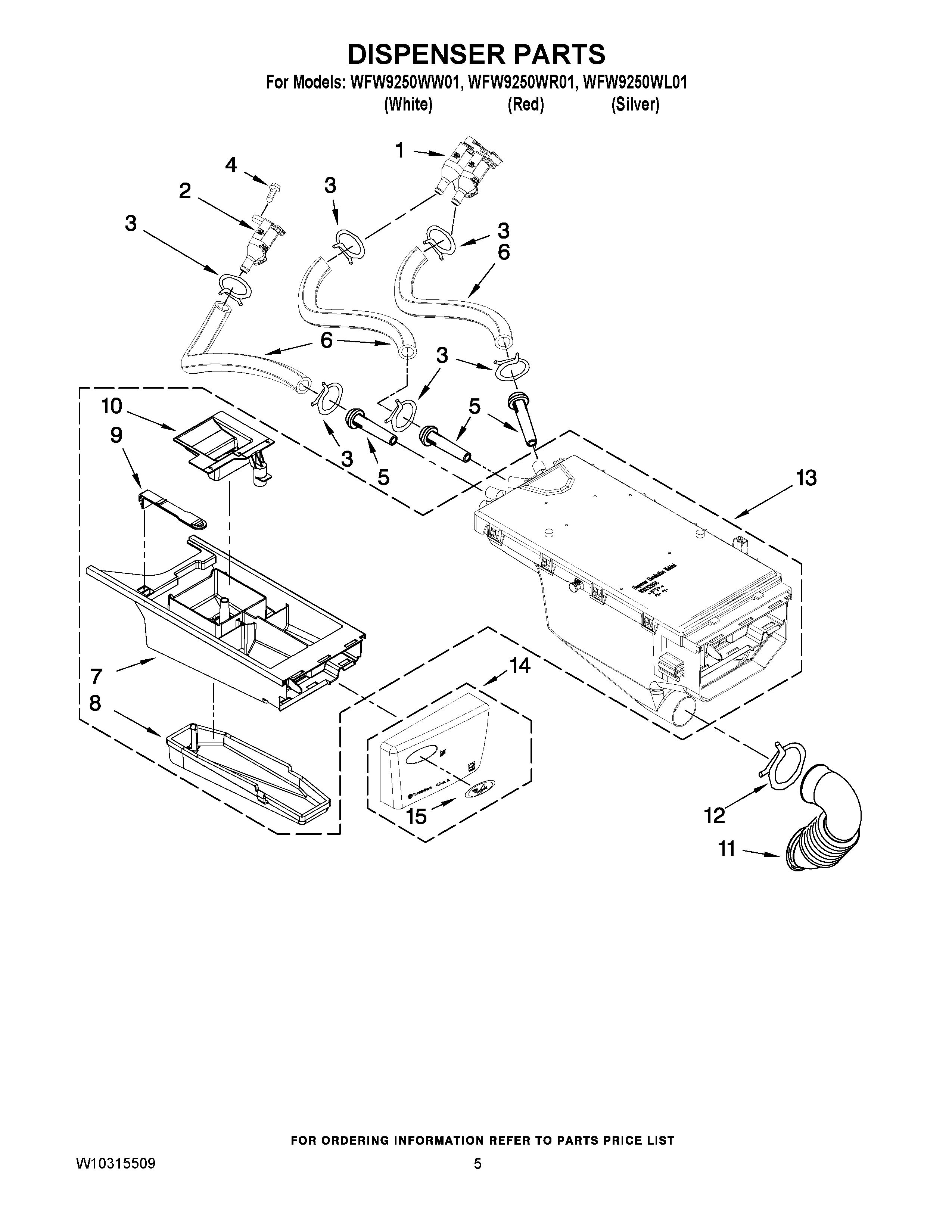

WFW9250WW01 04 – DISPENSER PARTS

Products

Position	Product
1	WPW10212596 Whirlpool Washer Inlet Valve
2	WPW10212598 Whirlpool Valve
3	WP596669 Whirlpool Hose Clamp
4	W11230114 Whirlpool Screw Assembly
5	WP8183181 Whirlpool Nozzle
6	W10803052 Whirlpool Hose
7	WP8540402 Whirlpool Washer Detergent Dispenser Drawer Assembly
8	WP8540399 Whirlpool Cover Assembly
9	WP8181721 Whirlpool Retainer
10	WP8540429 Whirlpool Dispenser Assembly
11	W11366227 Whirlpool Washer Dispenser Hose
12	W11622908 Whirlpool Dishwasher Clamp
13	WPW10399327 Whirlpool Dispenser Assembly
14	HANDLE, DRAWER (WHITE)
14	HANDLE, DRAWER (SILVER)
14	HANDLE, DRAWER (RED)
15	Medallion
