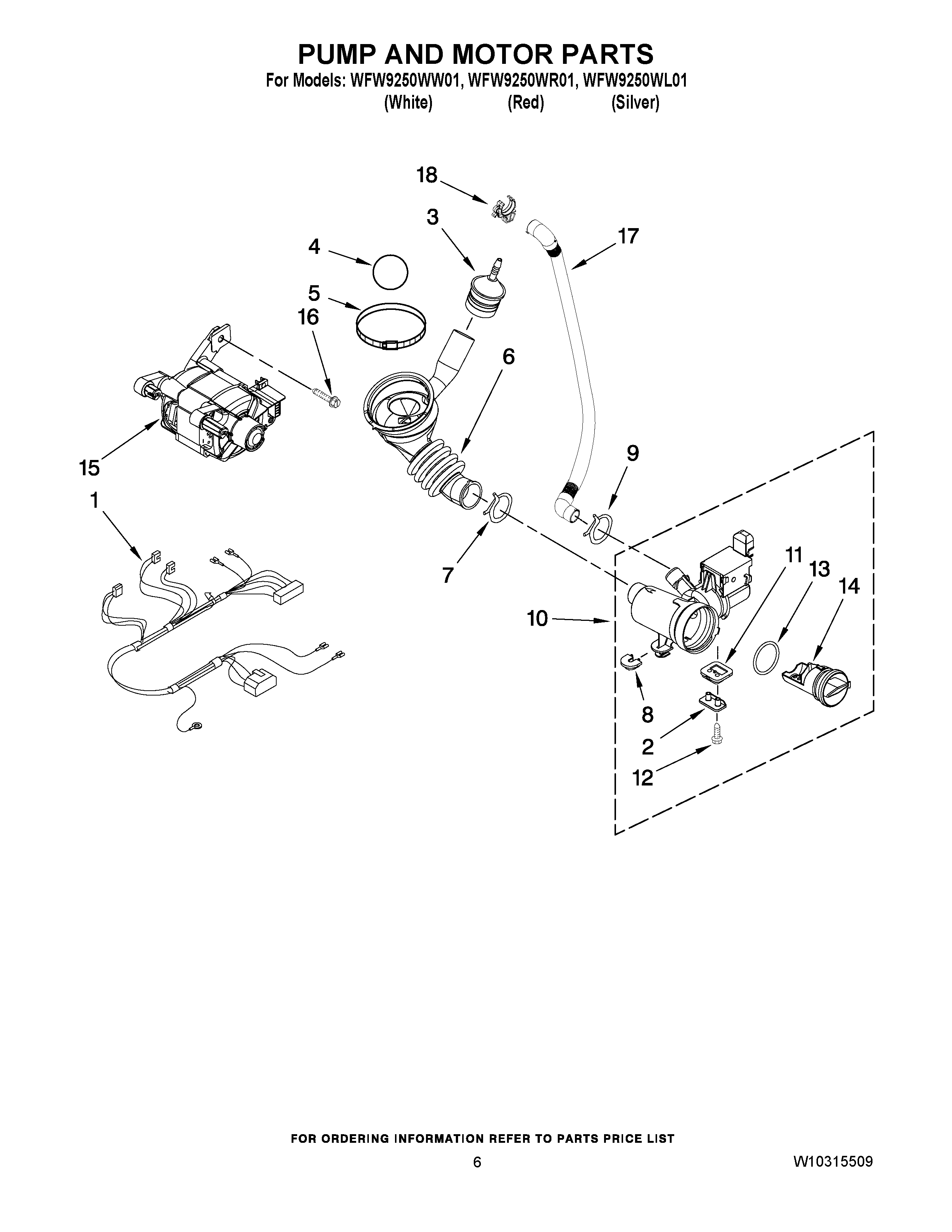

WFW9250WW01 05 – PUMP AND MOTOR PARTS

Products

Position	Product
1	WPW10201879 Whirlpool Wire Harness
2	8540033 Whirlpool Cap
3	WPW10405608 Whirlpool Trap
4	BALL
5	WP696392 Whirlpool Hose Clamp
6	W11366249 Whirlpool Washer Tub to Pump Hose
7	WP616099 Whirlpool Clamp
8	W10034820 Whirlpool Grommet
9	WP285655 Whirlpool Hose Clamp
11	W10034830 Whirlpool Grommet
12	8533964 Whirlpool Screw
13	WPW10730972 Whirlpool Washer Water Pump
15	WPW10171902 Whirlpool Motor Drive
16	8540134 Whirlpool Screw
17	WPW10272563 Whirlpool Hose
18	8182209 Whirlpool Clip
